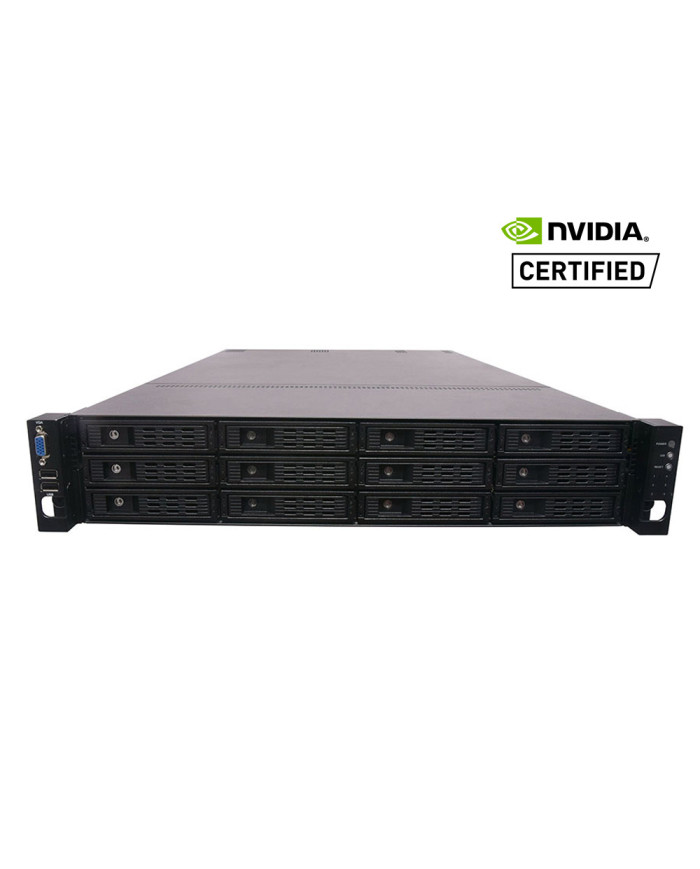

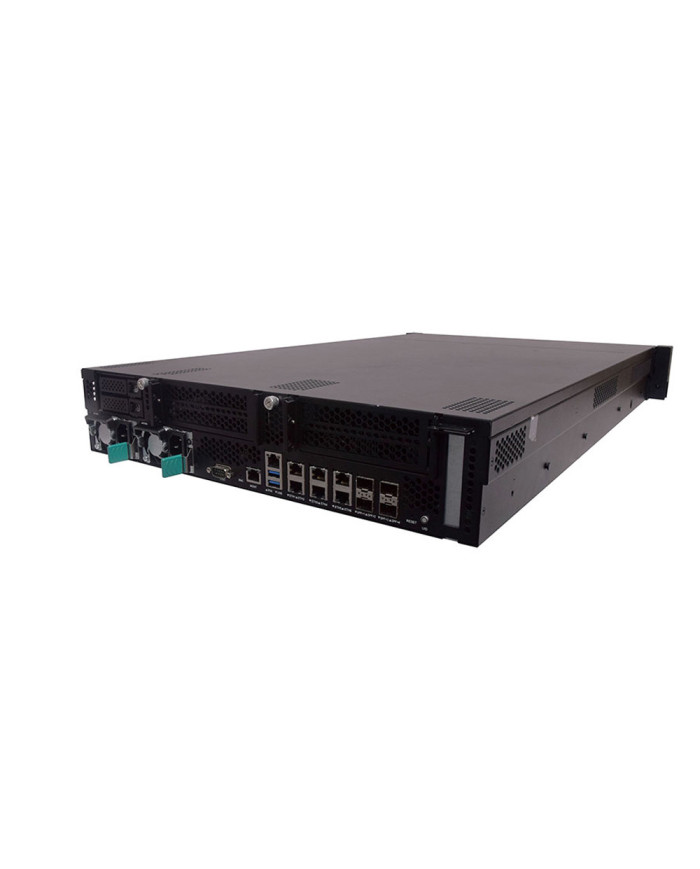

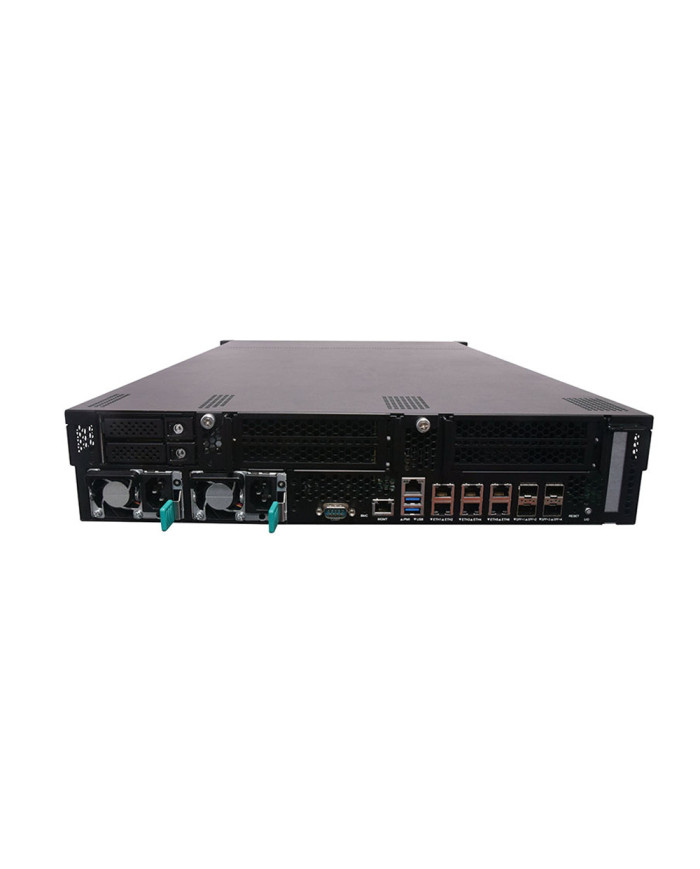

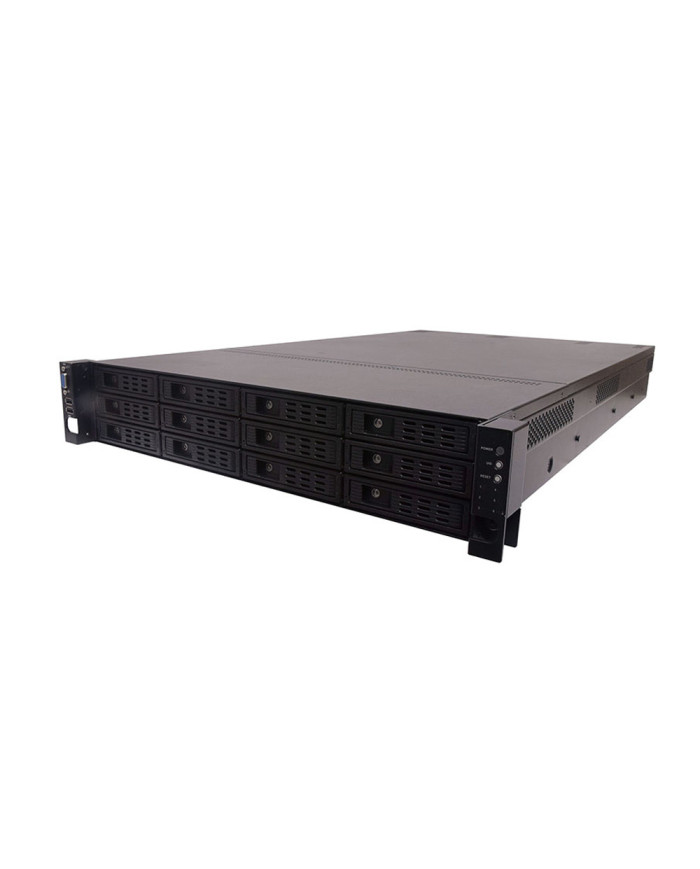

FX-3420 offers a secure, high-performance, and high storage density in just 2U of space. FX-3420 is optimal for VDI, cloud computing, software defined storage platforms and HPC server where performance and storage are critical.
FX-3420 can support up to 768 GB of memory through multiple DDR4 2,666 MHz REG DIMM modules and comes with 12 x SATA 3.5” hot-swappable disk drive bays. In addition, FX-3420 provides other I/O functionality including one onboard M.2 slot, one RJ-45 console, one IPMI port for remote management, and two double-width PCIe x16 sockets for GPU acceleration card.
Configured with an NVIDIA A30 Tensor Core GPU, the NVIDIA-Certified FX-3420 provides an AI-optimized platform that significantly accelerates AI performance for service providers to power unique AI and data analytics on factory floors and retail shelves, and accelerate mission-critical deep learning inferencing in industrial environments, such as healthcare, transportation, and smart cities.
Kick-start your AI journey with immediate, short-term access to NVIDIA AI Enterprise - for free. Experience the difference of the NVIDIA AI Enterprise software suite with hands-on labs for every user. IT administrators will learn best practices for deploying and managing NVIDIA AI Enterprise.
Specifications
Platform
|
Form Factor
|
2U 19” Rackmount
|
|
Processor Options
|
Intel Xeon Processor Scalable Family (codenamed Skylake-SP/Cascade Lake-SP)
|
|
CPU Socket
|
2 x FCPGA
|
|
Security Acceleration
|
Optional module
|
|
BIOS
|
AMI SPI Flash BIOS
|
System Memory
|
Technology
|
DDR4 2666 MHz REG DIMM
|
|
Max. Capacity
|
768 GB
|
|
Socket
|
24 x 288-pin DIMM
|
Networking
|
Ethernet Ports
|
4 x 10 GbE SFP+, 6 x GbE RJ45, 1 x MGMT port
|
LOM
|
IO Interface
|
1 x RJ45
|
|
OPMA Slot
|
IPMI Chip Onboard
|
I/O Interface
|
Reset Button
|
1
|
|
LED
|
Power/Status/Storage
|
|
Power Button
|
1 x ATX Power Switch
|
|
Console
|
1 x DB9 Console
|
|
USB
|
2 x USB 2.0 and 2 x USB 3.0 Ports at rear
|
|
Serial COM port
|
1
|
|
Display
|
VGA port
|
|
Power Input
|
AC Power Inlet on PSU
|
Storage
|
HDD/SSD Support
|
Front: 12 x 3.5” HDD SATA 6G (Default), SAS/2 NVME (Optional)
Back: 2 x 2.5” SATA 6G
|
|
Onboard Slots
|
1 x M.2-22110 (NVME)
|
Expansion
|
PCIe
|
2 x PCI-E x16 (Max. 266.7 mm) + 1 x PCI-E x8 HH/HL
|
|
M.2
|
M.2 PCI-e SSD
|
Miscellaneous
|
Watchdog
|
Yes
|
|
Internal RTC with Li Battery
|
Yes
|
|
TPM
|
Optional
|
Cooling
|
Processor
|
Passive CPU Heatsink
|
|
System
|
6 x individual hot-swappable cooling smart fans
|
Environmental Parameters
|
Temperature
|
0 ~ 40ºC Operating
-20 ~ 70ºC Non-Operating
|
|
Humidity (RH)
|
5 ~ 90% Operating
5 ~ 95% Non-Operating
|
System Dimensions
|
Dimensions (W x D x H)
|
445 x 760 x 88 mm
|
Package Dimensions
|
Dimensions (W x D x H)
|
790 x 800 x 220 mm
|
|
Weight
|
26 kg
|
Power
|
Type / Watts
|
850 W 1+1 Redundant PSU
|
|
Input
|
AC 100 V ~ 240 V @47 ~ 63 Hz
|
Certification
|
Approvals and Compliance
|
CE/FCC Class A
|
