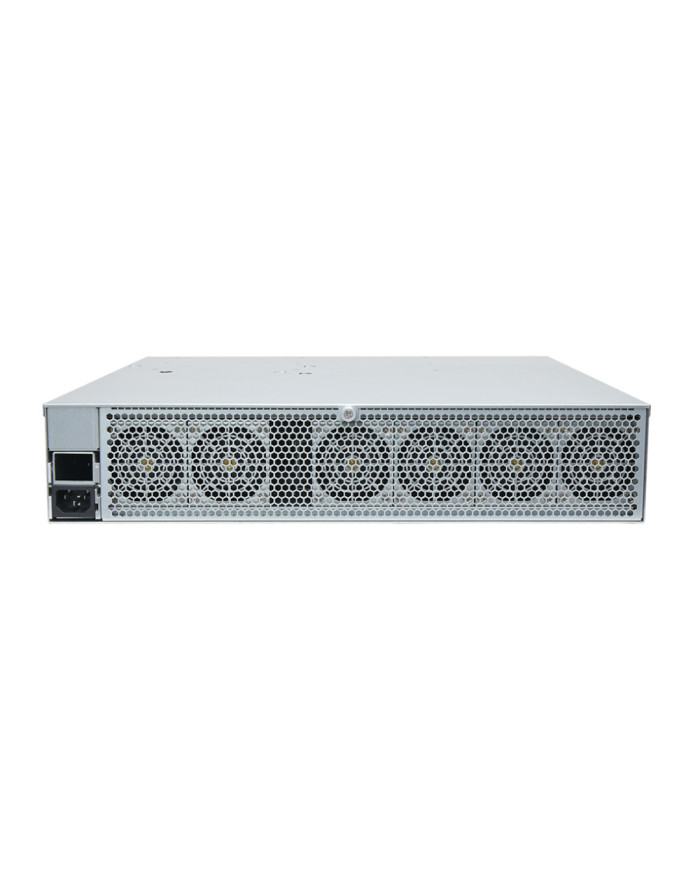

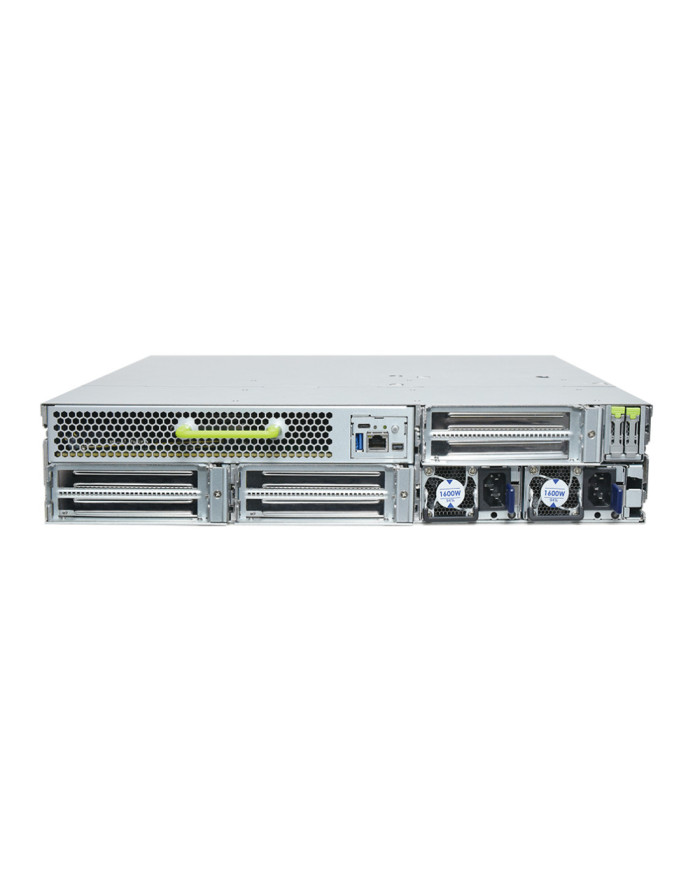

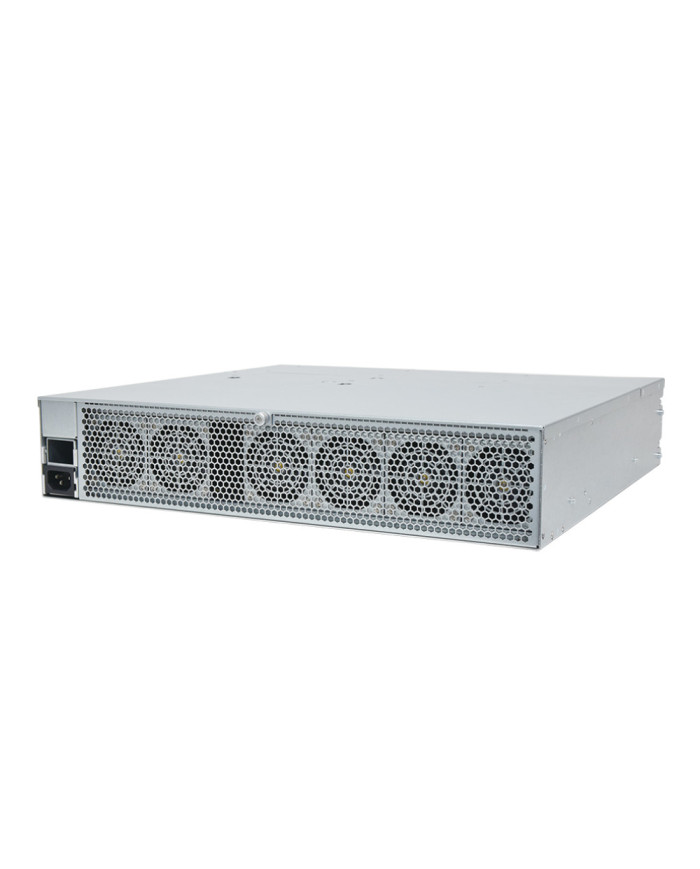

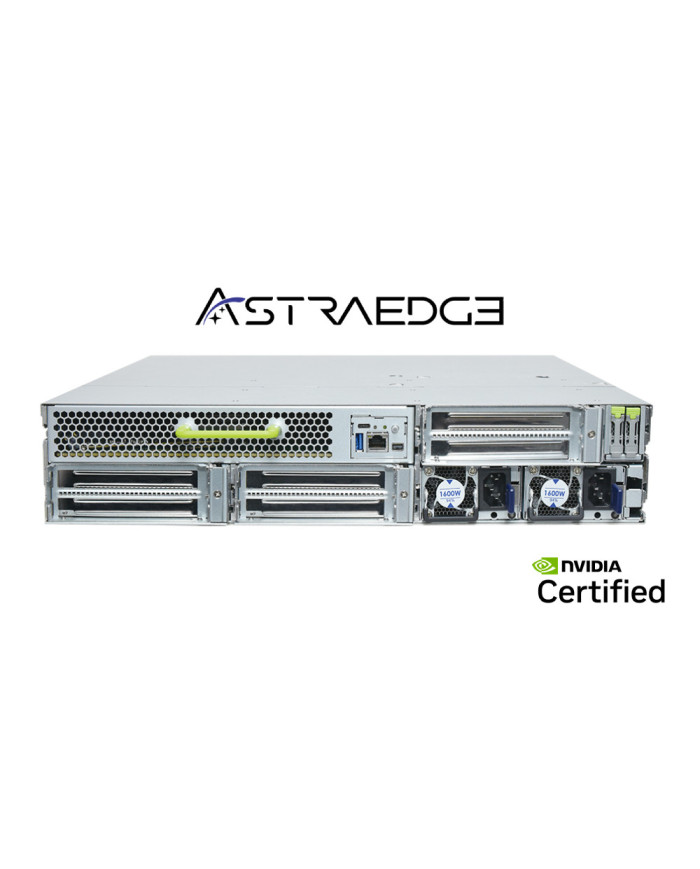

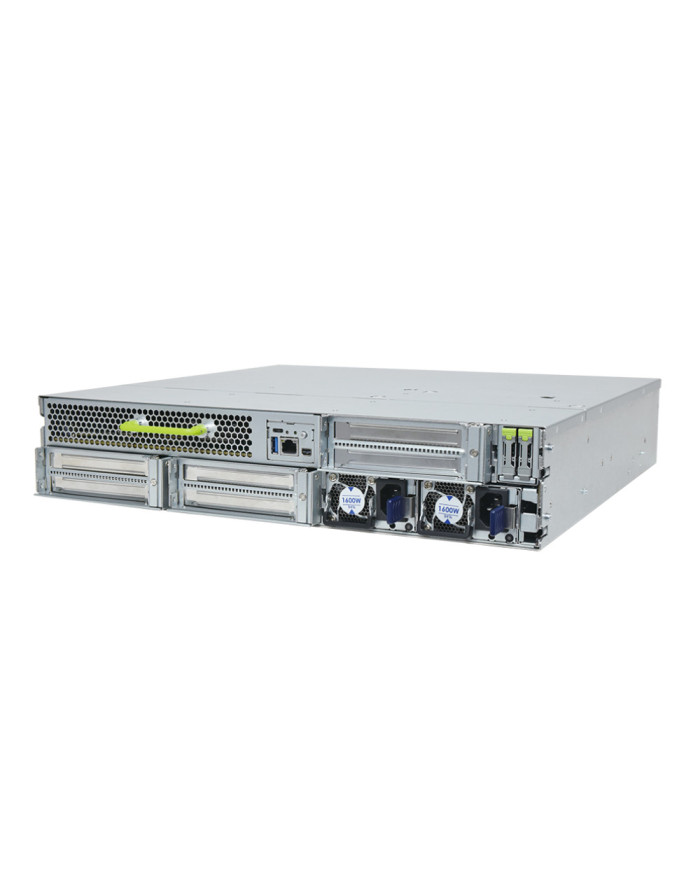

ECA-6051 industrial edge AI server
Ask for price
2U 19” Modular Edge AI Server Platform Based On Intel Xeon 6 Processor (Codenamed Sierra Forest-SP/Granite Rapids-SP)
- Intel Xeon 6 Processor (P-core and E-core)
- 8 x DDR5 6400 MHz RDIMM, Max. 1024 GB System Memory
- 2 x PCIe x16 FHFL, 1 x PCIe x16 FHHL or 1 x PCIe x16 LP (By SKU)
- 1 x GbE RJ45, 1 x USB 3.0
- 2 x M.2 NVMe (PCIe), 2x E1.S SSD
- 6 x Smart Fans, 2 x 1600 W AC CRPS PSU
- NVIDIA-Certified System (For Industrial Edge)
Description
Product Details
Lanner’s ECA-6051 is purpose-built for 5G edge networks, delivering AI-driven real-time data analysis and decision-making at the network edge. This 2U short-depth server is optimized for deployment in space-constrained 5G edge locations, supporting low-latency, high-bandwidth applications essential for industries relying on real-time insights.
Key features of the ECA-6051 include:
- Powered by NVIDIA’s GH200 Grace Hopper Superchip, which integrates GPU-accelerated computing with CPU processing for unparalleled performance in AI inference, machine learning, and memory-intensive tasks.
- Modular design with up to 3 PCIe 5.0 x16 slots, supporting NVIDIA L40S GPU, H100 Tensor Core GPU, Bluefield-3 DPU, and ConnectX-7 network adapters for enhanced AI and networking performance.
- Scalable, high-performance platform for telecom operators deploying secure, efficient vRAN networks.
ECA-6051 is designed to enhance AI-driven workloads, ensuring rapid data processing and real-time insights while supporting high-bandwidth 5G connectivity, fulfilling the significantly increased demand for low-latency AI applications found in telecommunications, autonomous systems and smart cities, such as video transcoding, factory visual inspection and RAN intelligent control.
Specifications
Platform
| Form Factor | 2U 19” Rackmount |
| Processor Options | Intel Xeon 6 Processor Scalable Family |
| CPU Socket | 1 x LGA 4710 |
| Security Acceleration | Intel QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
System Memory
| Technology |
DDR5 6400 MHz REG, RDIMM (Sierra Forest-SP CPU) DDR5 8000 MHz (Granite Rapids-SP) |
| Max. Capacity | 1024 GB |
| Socket | 8 x 288pin DIMM |
Networking
| Ethernet Ports | 1 x GbE RJ45 MGMT (i210) |
LOM
| IO Interface | 1 x RJ45 |
I/O Interface
| LED | Power/Status |
| Power Button | Yes |
| Console | Type-C |
| USB | 1 x USB 3.0 |
| Display | MiniDP (VGA Signal) |
Storage
| HDD/SSD Support | 2 x E1.S SSD |
| Onboard Slots | 2 x M.2 NVMe (PCIe) |
Expansion
| PCIe |
(SKU A) 2 x PCIe x16 FHFL (Double Width), 1 x PCIe x16 FHHL (SKU B) 1 x PCIe x16 FHFL (Double Width), 1 x PCIe x16 LP |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Yes, Onboard |
Cooling
| Processor | Passive CPU Heatsink |
| System | 6 x Smart Fans |
Environmental Parameters
| Temperature |
0 ~ 40ºC Operating -40 ~ 70ºC Non-Operating |
| Humidity (RH) |
5 ~ 95% Operating 5 ~ 95% Non-Operating |
System Dimensions
| Dimensions (W x D x H) | 438 x 420 x 88 mm |
| Weight | 19.6 kg |
Package Dimensions
| Dimensions (W x D x H) | 700 x 603 x 285 mm |
| Weight | 20.93 Kg |
Power
| Type / Watts | 2 x 1600 W AC CRPS PSU |
| Input | 200 ~ 240 VAC, 9.5 A, 50 ~ 60 Hz |
Certification
| Approvals and Compliance | RoHS, CE/FCC Class A, UL, NEBS (Level 3) |
