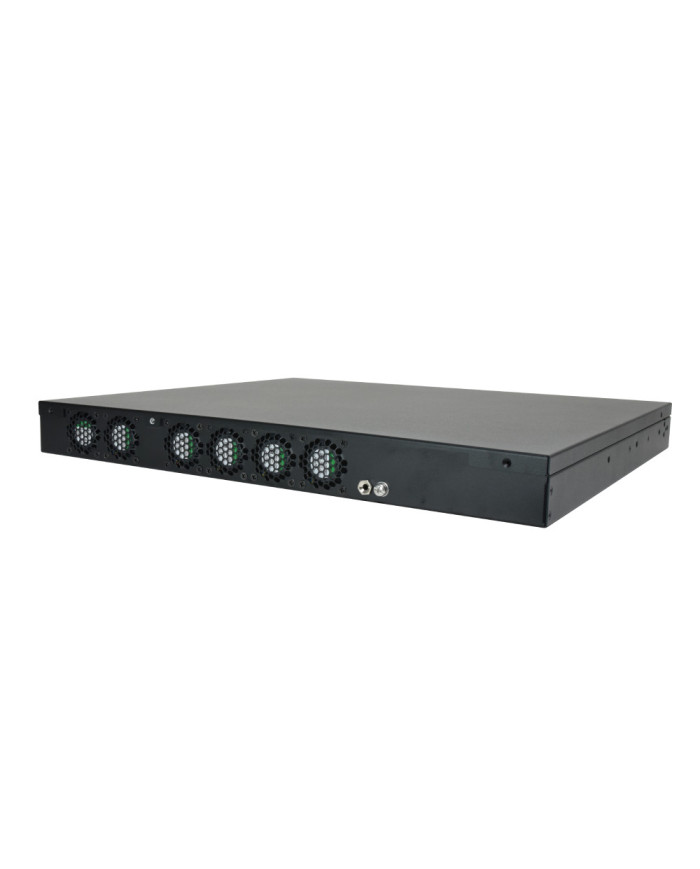

ECA-4035 industrial edge AI server
Ask for price
High Performance Edge AI Server with Intel Xeon D-2800/D-2700 Series Multi-core Processor (Codenamed Ice Lake D)
- Intel Xeon D2798NT/D2786NTE/D2896TER/D2899NT
- 4 x DDR4 3200/2933 MHz REG RDIMM, Max. 256 GB
- 8 x 10 GbE SFP+, 2 x 25 GbE SFP28, 2 x GbE RJ45, 2 x USB 3.0
- 1 x RJ45 Console, 2 x 2280 M.2 (1 x NVMe & 1 x SATA)
- 1 x OCP 3.0, 1 x PCIe x16
- NVIDIA-Certified System (For Industrial Edge)
Description
Product Details
The ECA-4035 is NVIDIA certified for industrial edge and offers 8 ~ 22 cores of computing power and comes with 1 x OCP 3.0 and 1 x PCIe x16. It is designed for deployment either as edge AI servers for smart city applications, or as multi-access edge computing (MEC) servers for 5G edge cloud and vRAN/O-RAN platform for distributed units.
Specifications
Platform
| Form Factor | 1U 19” Rackmount |
| Processor Options | Intel Xeon D2798NT/D2786NTE/D2896TER/D2899NT |
| Chipset | SoC |
| Security Acceleration | Intel QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
System Memory
| Technology | DDR4 3200/2933 MHz REG, RDIMM |
| Max. Capacity | 256 GB |
| Socket | 4 x 288-pin DIMM |
Networking
| Ethernet Ports |
2 x GbE RJ45 Intel i210-AT 4 x 10 GbE SFP+, 2x 25 GbE SFP28 4 x 10 GbE SFP+ Intel XL710 |
| IEEE 1588 | Yes |
| GPS | Yes |
LOM
| IO Interface | 1 x GbE RJ45 Via NCSI |
| OPMA Slot | Yes |
I/O Interface
| Reset Button | 1 x Reset Button |
| LED | Power/Status/Storage |
| Power Button | Yes |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| Power Input | AC Power Inlet On PSU Or Single DC Power Inlet (By SKU) |
Storage
| HDD/SSD Support | 2 x 2.5” Internal |
| Onboard Slots |
1 x M.2 NVMe 2280 M Key 1 x M.2 SATA 2280 M Key |
Expansion
| PCIe |
1 x FHFL (PCIe x16, Double Width, 350 W) 1 x OCP 3.0 Slot |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Optional |
Cooling
| Processor | Passive CPU Heatsink |
| System | 8 x or 6 x Smart Fans (By SKU) |
Environmental Parameters
| Temperature |
0 ~ 40ºC Operating -40 ~ 70ºC Non-Operating |
| Humidity (RH) |
5 ~ 95% Operating 5 ~ 95% Non-Operating |
System Dimensions
| Dimensions (W x D x H) | 438 x 382.2 x 44 mm |
| Weight | 10.70 kg |
Package Dimensions
| Dimensions (W x D x H) | 585 x 500 x 190 mm |
| Weight | 12.06 kg |
Power
| Type / Watts | 600 W or 800 W |
| Input | AC 90 ~ 264 V @47 ~ 63 Hz |
Certification
| Approvals and Compliance | CE/FCC Class A, UL, RoHS |
| OS Support | Linux |
