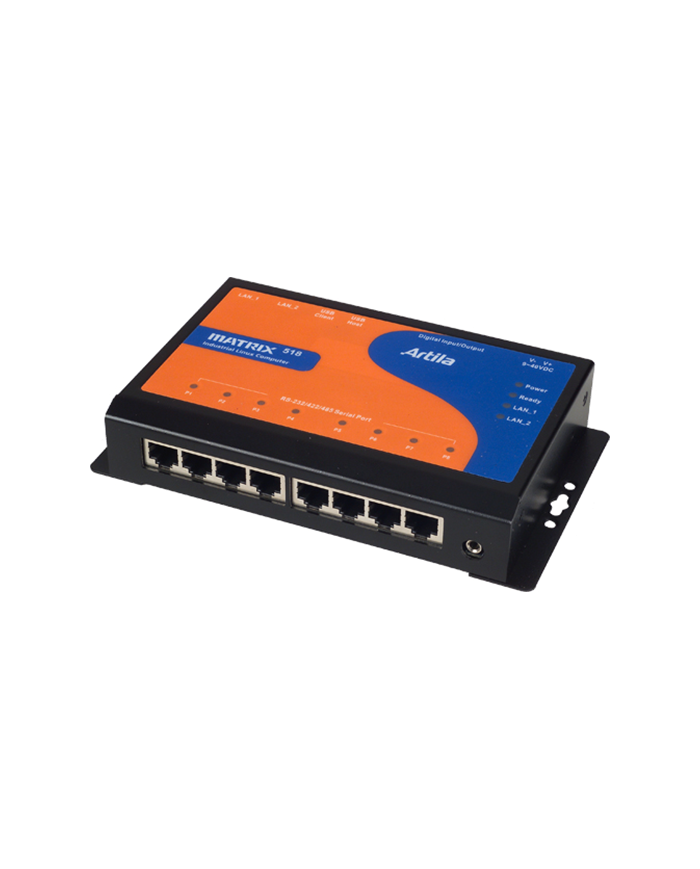

Matrix-518 Industrial Computer - Industrial IoT Gateway
Ask for price
Linux-ready ARM9 Industrial Box Computer / Industrial IoT Gateway
ATMEL 9G20 CPU
2 x LANs
8 x RS232 / 422 / 485 TTYs
2 x USB Hosts
21 x GPIOs
1 x Audio Out
Description
Product Details
- ATMEL AT91SAM9G20 400MHz CPU
- Linux kernel 2.6.29 with file system
- 64MB SDRAM and 256MB NAND Flash
- 1 x microSD socket inside
- 2 x 10/100Mbps Ethernet ports
- 8 x RS232 / 422 / 485 serial ports
- USB / GPIO / Audio out
- Ultra-low power consumption, less than 3 Watts
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 2 |
|---|---|
| Ethernet speed | 10/100 Mbps |
| Operating voltage | 9-40 VDC |
| Maximum power consumption | 2,3 W |
| Dimensions | 160 x 104 x 32 mm |
| Operating temperature | 0°C - 70°C |
| Serial ports | RS232 RS422 RS485 |
| USB ports | 2 |
| SD slot | SD |
| Audio out | 1 |
| Configurable I/O | 21 |
| Operating system | Linux 2.6.29 |
