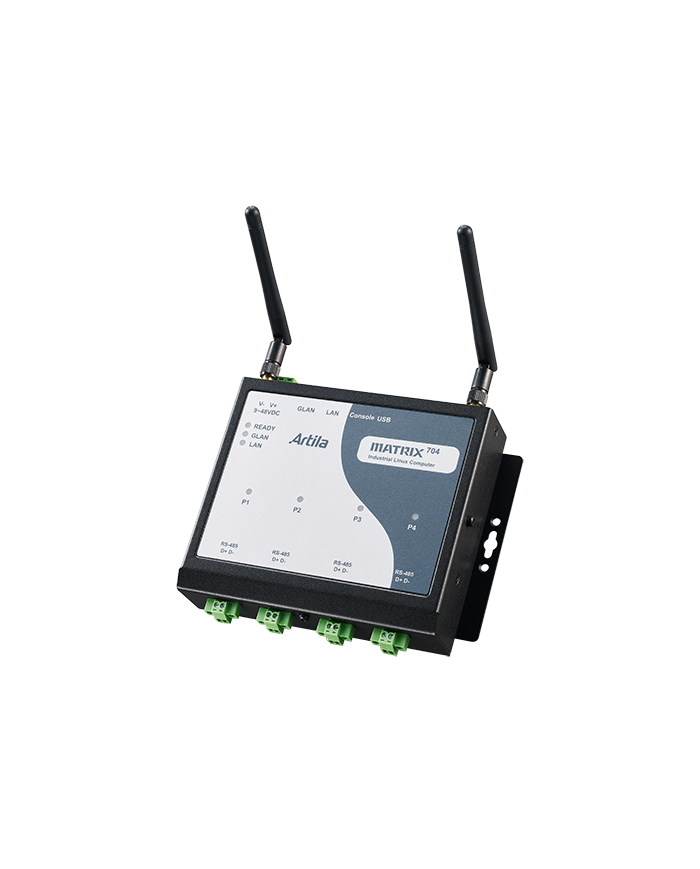

Matrix-704 Industrial Computer - Industrial IoT Gateway
Ask for price
Linux-Ready Cortex-A5 Surge-Protected Industrial Box Computer / Industrial IoT Gateway
ATMEL Cortex-A5 ATSAMA5D35 CPU
4 x Serial Ports
Optional Isolation and Surge Protection
Description
Product Details
- ATMEL Cortex-A5 ATSAMA5D35 536MHz CPU
- Linux Kernel 5.10.x / 4.19.x
- Toolchain gcc 8.2.0 + glibc 2.28
- 512MB LPDDR2 SDRAM
- 16GB eMMC Flash
- 1 x Gigabit Ethernet
- 1 x 10/100 Mbps Ethernet
- 1 x Full Size miniPCIe Socket Inside
- 1 x Micro-SIM Slot Inside
- 2 x Antenna Through SMA Connector Holes Reserved
- 1 x Micro-SD Card Inside for Data Backup
- 4 x RS485 Serial ports with Surge Protection
- Optional RS485 with Isolation and Surge Protection
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 2 |
|---|---|
| Ethernet speed | 10/100 Mbps 10/100/1000 Mbps |
| Operating voltage | 9-48 VDC |
| Dimensions | 140 x 119,5 x 35,2 mm |
| Operating temperature | 0°C - 70°C |
| Serial ports | RS485 |
| USB ports | 1 |
| SD slot | Micro SD |
| miniPCIe sockets | 1 |
| Operating system | Linux 4.19.x Linux 5.10.x |
