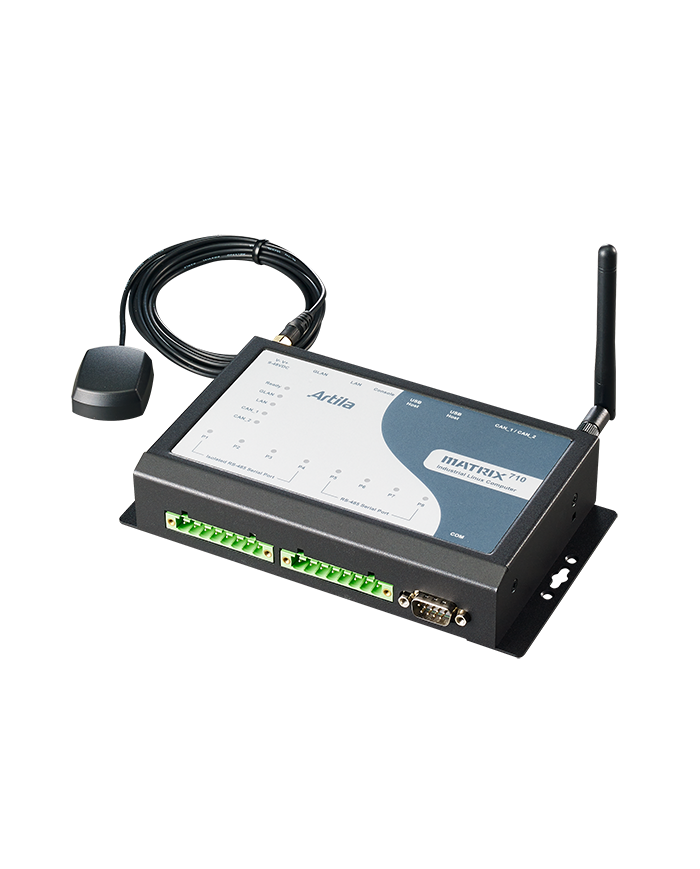

Matrix-710 Industrial Computer - Industrial IoT Gateway
Ask for price
Linux-ready Cortex-A5 Industrial Box Computer / Industrial IoT Gateway
ATMEL Cortex-A5 ATSAMA5D35 CPU
8 x Serial Ports
2 x CAN Ports
Description
Product Details
- ATMEL ATSAMA5D35 536MHz Cortex-A5 CPU
- Linux Kernel 5.4.x (or up) x with File System
- 512 MB LPDDR2 SDRAM
- 16 GB eMMC Flash and 8 MB Data Flash for System Backup
- Toolchain: gcc 9.3.0 + glibc 2.31
- 1 x Gigabit Ethernet
- 1 x 10/100 Mbps Ethernet
- 4 x USB Host Ports
- 4 x Isolation RS485 Serial Ports
- 4 x RS485 Serial Ports
- 2 x CAN Ports
- 1 x Full Size miniPCIe Socket Inside
- Ultra-Low Power Consumption
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 2 |
|---|---|
| Ethernet speed | 10/100 Mbps 10/100/1000 Mbps |
| Operating voltage | 9-48 VDC |
| Maximum power consumption | 6 W |
| Dimensions | 166 x 103 x 35 mm |
| Operating temperature | 0°C - 70°C |
| Serial ports | RS485 |
| CAN Bus Ports | 2 |
| USB ports | 4 |
| SD slot | Micro SD |
| miniPCIe sockets | 1 |
| Operating system | Linux 5.4.x |
