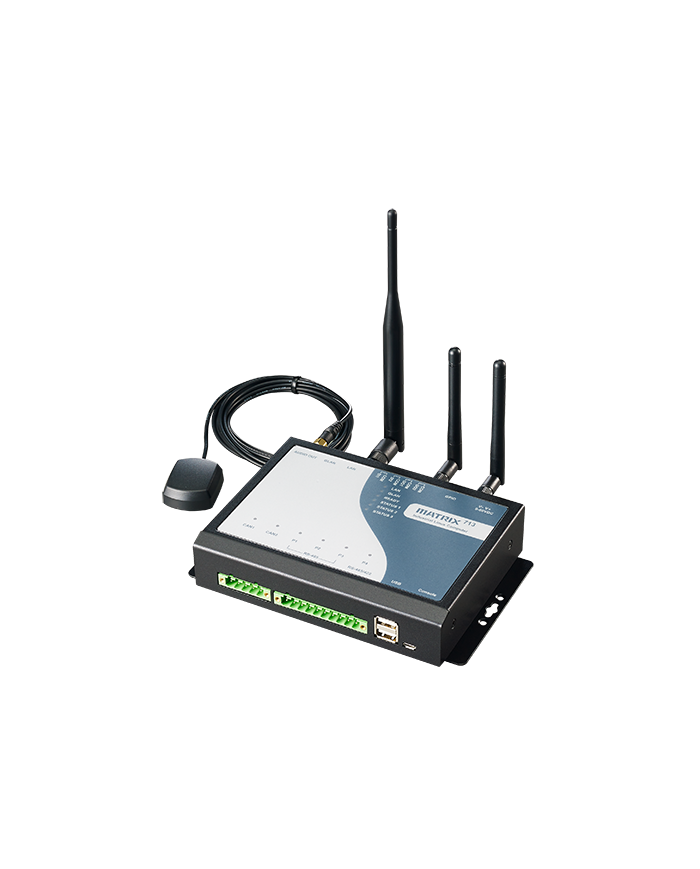

Matrix-713 Industrial Computer - Industrial IoT Gateway
Ask for price
Linux-ready Cortex-A5 Industrial Box Computer / Industrial IoT Gateway
ATMEL Cortex-A5 ATSAMA5D35 CPU
4 x Serial Ports
2 x DI
2 x DO
Description
Product Details
- Rugged Design, Wide-Range Temperature Operating
- ATMEL ATSAMA5D35 536MHz Cortex-A5 CPU
- Linux Kernel 5.10.x (or up) with File System
- Support Node-Red, the Browser-Based Flow Editor
- 512 MB LPDDR2 SDRAM
- 16 GB eMMC Flash and 8 MB DataFlash for System Backup
- Toolchain: gcc 9.3.0 + glibc 2.31
- 2 x USB
- 1 x Micro-SD Socket
- 1 x Audio Out
- 1 x Gigabit Ethernet
- 1 x 10/100 Mbps Ethernet
Rich I/Os:
- 4 x Isolated RS-485
- 2 x CAN
- 2 x USB
- 2 x Digital Input
- 2 x Digital Output
- 2 x miniPCIe slot
- 2 x micro-SIM Card Socket Reserved
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 2 |
|---|---|
| Ethernet speed | 10/100 Mbps 10/100/1000 Mbps |
| Operating voltage | 9-60 VDC |
| Maximum power consumption | 7,2 W |
| Dimensions | 160 x 118 x 35 mm |
| Operating temperature | 0°C - 70°C |
| Serial ports | RS485 |
| CAN Bus Ports | 2 |
| USB ports | 2 |
| Digital inputs | 2 |
| Digital outputs | 2 |
| SD slot | Micro SD |
| Audio out | 1 |
| miniPCIe sockets | 2 |
| Operating system | Linux 5.10.x |
