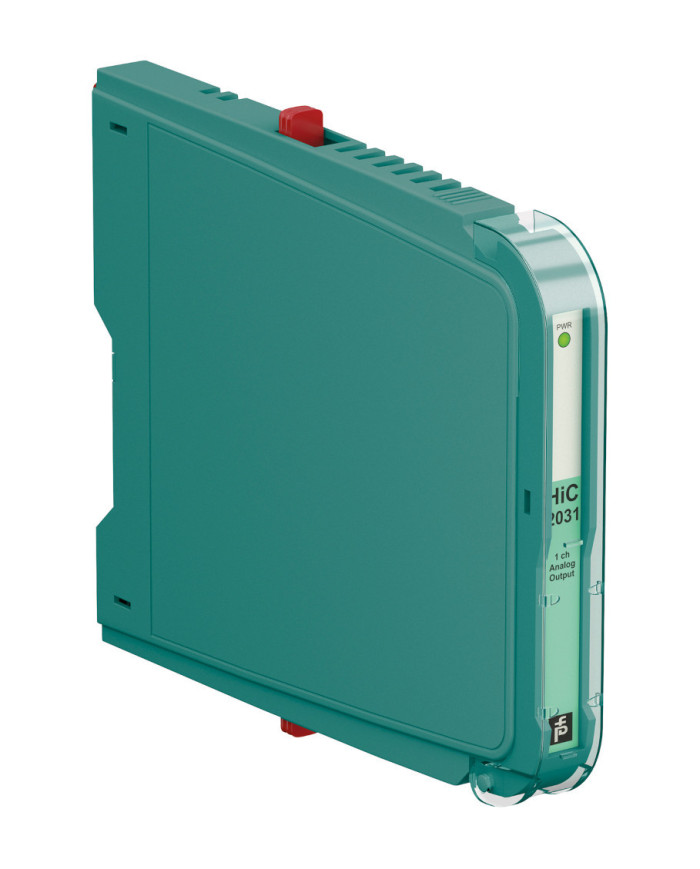

HiC2031 SMART Current Driver
Ask for price
- 1-channel isolated barrier
- 24 V DC supply (bus powered)
- Current output up to 650 Ω load
- Low power dissipation
- Up to SIL 2 (SC 3) acc. to IEC/EN 61508
Description
Product Details
This isolated barrier is used for intrinsic safety applications.
It repeats the input signal from a control system to drive HART I/P converters, valve actuators, and displays located in a hazardous area.
Digital signals are superimposed on the analog values at the field side or control side and are transferred bi-directionally.
An open field circuit presents a high impedance to the control side to allow alarm conditions to be monitored by the control system.

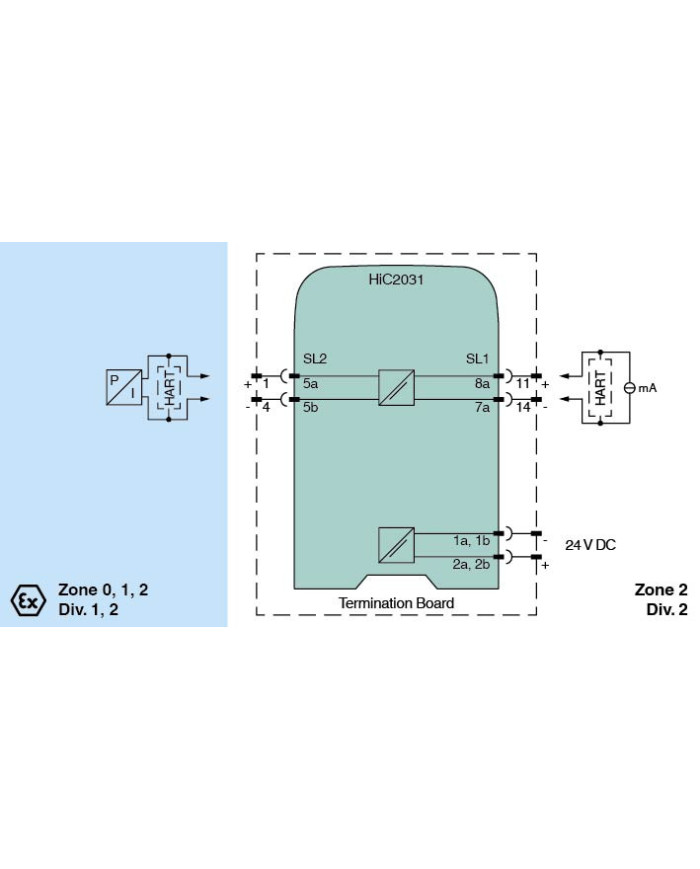

This device mounts on a HiC termination board.
Technical data
General specifications
| Signal type | Analog output |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 | |
| Systematic capability (SC) | SC 3 |
Supply
| Connection | SL1: 1a(-), 1b(-); 2a(+), 2b(+) | |
| Rated voltage | Ur | 19 … 30 V DC bus powered via Termination Board |
| Ripple | ≤ 10 % | |
| Rated current | Ir | ≤ 30 mA at 24 V |
| Power dissipation | ≤ 600 mW at 20 mA and 500 Ω load | |
| Power consumption | ≤ 700 mW |
Input
| Connection side | control side | |
| Connection | SL1: 8a(+), 7a(-) | |
| Input signal | 4 … 20 mA, limited to approx. 26 mA | |
| Input voltage | open loop voltage of the control system < 30 V | |
| Voltage drop | approx. 6 V at 20 mA | |
| Input resistance | > 100 kΩ, with field wiring open |
Output
| Connection side | field side | |
| Connection | SL2: 5a(+), 5b(-) | |
| Voltage | ≥ 13 V at 20 mA | |
| Current | 4 … 20 mA | |
| Load | 0 … 650 Ω | |
| Ripple | 20 mV rms |
Transfer characteristics
| Deviation |
at 20 °C (68 °F), 4 … 20 mA
< 0.1 % of full scale, incl. non-linearity and hysteresis |
||||
|
|||||
| Frequency range |
field side into the control side:
bandwidth with 0.5 Vpp signal 0 … 3 kHz (-3 dB)
control side into the field side: bandwidth with 1 mApp signal 0 … 3 kHz (-3 dB) |
||||
| Rise time | 10 to 90 % ≤ 10 ms | ||||
Galvanic isolation
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | |
| Input/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff | |
| Output/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
Indicators/settings
| Display elements | LED | |
| Labeling | space for labeling at the front |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
Conformity
| Electromagnetic compatibility |
NE 21:2017
EN 61326-3-2:2018 For further information see system description. |
|
| Degree of protection | IEC 60529:2001 | |
| Protection against electrical shock | UL 61010-1:2018 |
Ambient conditions
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) |
Mechanical specifications
| Degree of protection | IP20 | |
| Mass | approx. 100 g | |
| Dimensions | 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D) | |
| Mounting | on termination board | |
| Coding |
pin 1 and 3 trimmed
For further information see system description. |
Data for application in connection with hazardous areas
| EU-type examination certificate | CESI 06 ATEX 017 | ||||||||||||||||
|
|||||||||||||||||
| Supply | |||||||||||||||||
|
|||||||||||||||||
| Equipment | SL2: 5a(+), 5b(-) | ||||||||||||||||
|
|||||||||||||||||
| Certificate | CESI 19 ATEX 027 X | ||||||||||||||||
|
|||||||||||||||||
| Directive conformity | |||||||||||||||||
|
|||||||||||||||||
International approvals
| FM approval | ||||||||
|
||||||||
| UL approval | E106378 | |||||||
|
||||||||
| IECEx approval | ||||||||
|
||||||||
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
