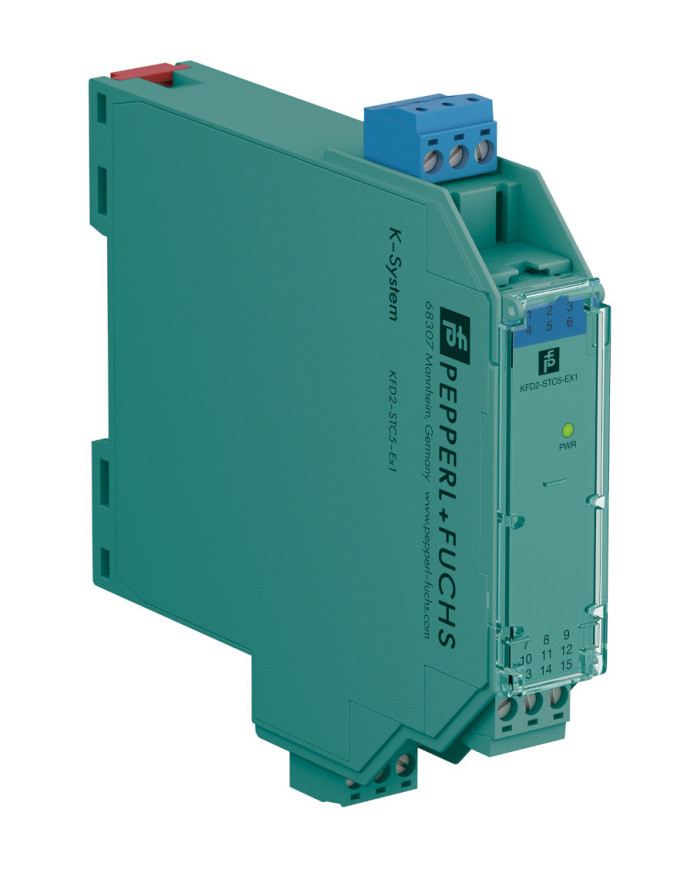

KFD2-STC5-Ex1 SMART Transmitter Power Supply
KFD2-STC5-Ex1 SMART Transmitter Power Supply
KFD2-STC5-Ex1 SMART Transmitter Power Supply
KFD2-STC5-Ex1 SMART Transmitter Power Supply

KFD2-STC5-Ex1 SMART Transmitter Power Supply

Ask for price

  • 1-channel isolated barrier
  • 24 V DC supply (power rail)
  • Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources
  • Output 4 mA … 20 mA current sink/current source
  • Terminals with test points
  • Up to SIL 2 acc. to IEC/EN 61508

Attachments:
KFD2-STC5-Ex1 Data Sheet
KFD2-STC5-Ex1 EU Declaration of Conformity

Description

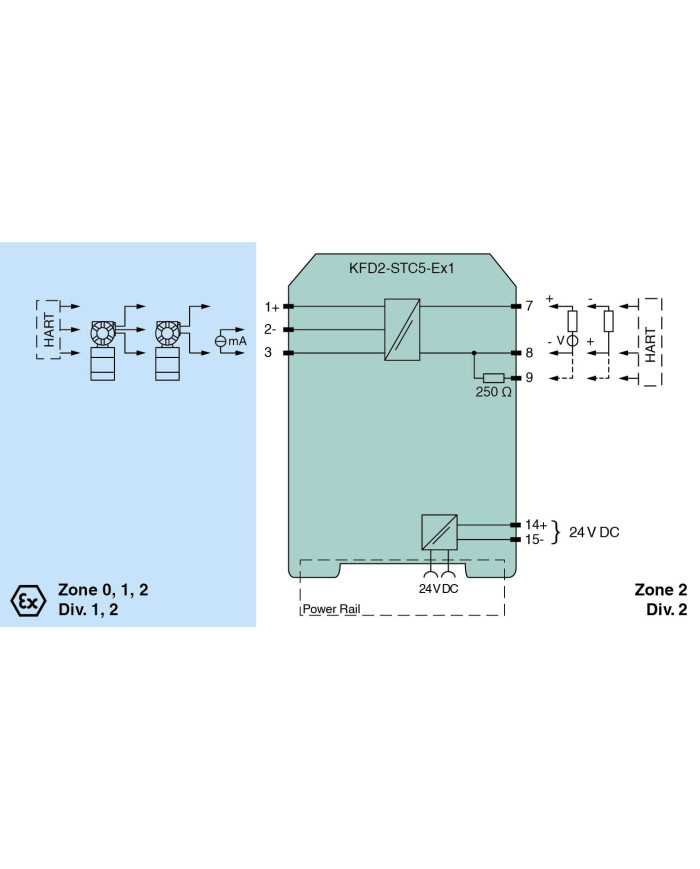

This isolated barrier is used for intrinsic safety applications.
The device supplies 2-wire and 3-wire SMART transmitters, and can also be used with 2-wire SMART current sources.
It transfers the analog input signal to the safe area as an isolated current value.
Digital signals may be superimposed on the input signal in the hazardous or non-hazardous area and are transferred bi-directionally.
The device provides a sink mode or a source mode output on the safe area terminals.
The device has an internal resistor. Use this resistor if the HART communication resistance in the control circuit is too low.
Test sockets for the connection of HART communicators are integrated into the terminals of the device.

Technical data


General specifications

Signal type Analog input

Functional safety related parameters

Safety Integrity Level (SIL) SIL 2

Supply

Connection Power Rail or terminals 14+, 15-
Rated voltage Ur 18 … 30 V DC
Ripple within the supply tolerance
Power dissipation ≤ 1 W at maximum load
Power consumption ≤ 1.6 W at maximum load

Input

Connection side field side
Connection terminals 1+, 2-, 3
Input signal 4 … 20 mA
Open circuit voltage/short-circuit current terminals 1+, 3: 23 V / 25 mA
Input resistance max. 265 Ω terminals 2-, 3 , max. 330 Ω terminals 1+, 3
Available voltage ≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3

Output

Connection side control side
Connection terminals 7+, 8-, 9- (sink)
terminals 7-, 8+, 9+ (source)
see additional information
Load 0 … 800 Ω
Output signal 4 … 20 mA (overload > 25 mA)
Ripple max. 50 µArms
External supply (loop) 2 … 30 V DC
If the external voltage is > 19 V, a load ≥ ((V - 19) / 0.02) Ω is required. V represents the value of the external voltage.
The internal 250 Ω resistor at terminal 9 can be used as a load.

Transfer characteristics

Deviation at 20 °C (68 °F), 4 … 20 mA
≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
Influence of ambient temperature ≤ 0.25 µA/K
Frequency range field side into the control side: bandwidth with 0.5 Vpp signal 0 … 7.5 kHz (-3 dB)
control side into the field side: bandwidth with 0.5 Vpp signal 0.3 … 7.5 kHz (-3 dB)
Settling time 200 µs
Rise time/fall time 100 µs

Galvanic isolation

Output/power supply functional insulation, rated insulation voltage 50 V AC

Indicators/settings

Display elements LED
Labeling space for labeling at the front

Directive conformity

Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibility NE 21:2012
EN 61326-3-2:2008
Degree of protection IEC 60529:2001
Protection against electrical shock UL 61010-1:2012

Ambient conditions

Ambient temperature -20 … 70 °C (-4 … 158 °F)

Mechanical specifications

Degree of protection IP20
Connection screw terminals
Mass approx. 150 g
Dimensions 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D), housing type B2
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

EU-type examination certificate CML 17 ATEX 2029X
Marking II (1)G [Ex ia Ga] IIC
II (1)D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I
Input [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Supply
Maximum safe voltage Um 250 V (Attention! The rated voltage can be lower.)
Equipment terminals 1+, 3-
Voltage Uo 26.2 V
Voltage Uq 27.25 V
Current Io 93 mA
Power Po 634 mW
Equipment terminals 2-, 3
Voltage Ui 30 V
Current Ii 115 mA
Power Pi max 1 W
Voltage Uo 2 V
Current Io 8.5 mA
Power Po 4.3 mW
Equipment terminals 1+, 2 / 3-
Voltage Uo 26.2 V
Voltage Uq 27.25 V
Current Io 115 mA
Power Po 784 mW
Certificate CML 17 ATEX 3028X
Marking II 3G Ex ec IIC T4 Gc
Galvanic isolation
Input/Output safe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V
Input/power supply safe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V
Directive conformity
Directive 2014/34/EU EN IEC 60079-0:2018, EN 60079-7:2015+A1:2018, EN 60079-11:2012

International approvals

UL approval E106378
Control drawing 116-0439 (cULus)
IECEx approval
IECEx certificate IECEx CML 17.0015X
IECEx marking [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I, Ex ec IIC T4 Gc

General information

Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
