HiCTB08-FBM-RSC-SP-IO08-Y1 Termination Board
Ask for price
- System board for Schneider, Foxboro FBM series
- For 8 modules
- For 8-channel cards FBM201/214(b)/216(b) (AI), FBM215/218/237 (AO), FBM204/205 (AO/AI), FBM244 (AI/AO), FBM247/248 (UIO)
- 24 V DC supply
- Recommended modules: HiC2025(A) (AI), HiC2031 (AO), HiC2081 (TI), HiC2831R5 (DI), HiC2883 (DO), HiC2441 (UIO)
- Hazardous area: spring terminals, blue
- Non-hazardous area: Sub-D connector (male), 25-pin
Description
Product Details

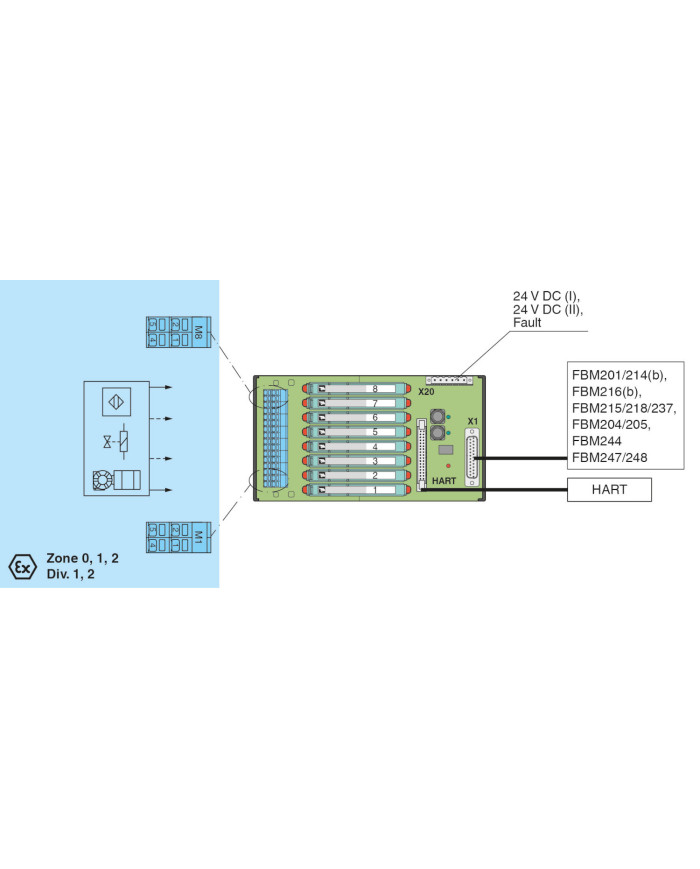

The function of the termination board and the connector pin assignment are exactly fitted to the requirements of the Foxboro FBM system.
The signal is output to the process control system via the system connector.
The connection to the separate HART Communication Board is realized via a HART connection cable.
Information about a missing supply voltage of the isolators is available for the system as a volt-free contact.

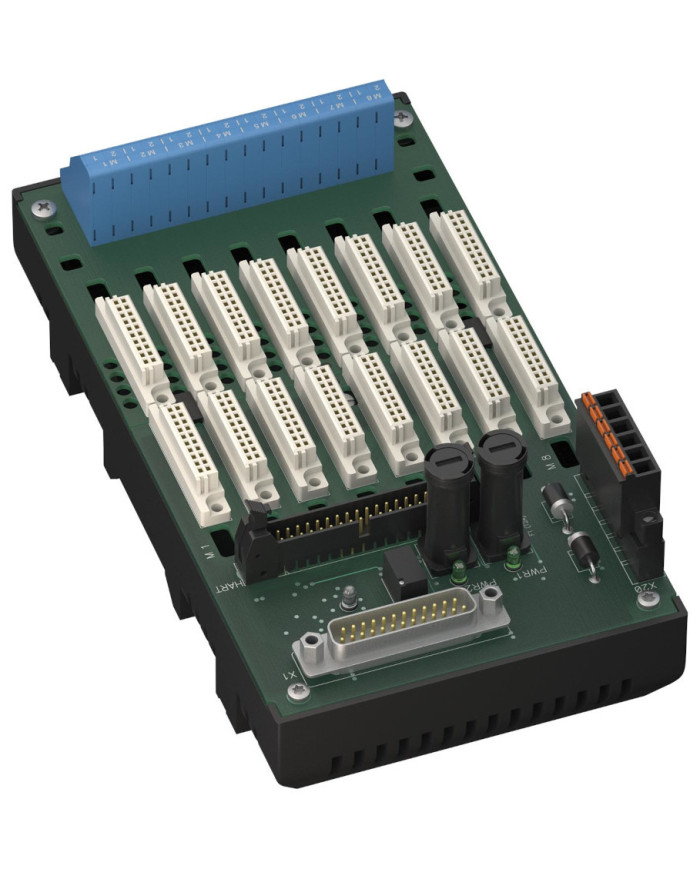

The termination board has a robust glass fiber reinforced plastic housing.
The termination board is mounted in the switch cabinet on a 35 mm DIN mounting rail according to EN 60175.
Technical data
Supply
| Connection | X20: terminals 3, 5(+); 4, 6(-) | |
| Nominal voltage | 24 V DC, in consideration of rated voltage of used isolators | |
| Voltage drop | 0.9 V, voltage drop across the series diode on the termination board must be considered | |
| Ripple | ≤ 10 % | |
| Fusing | 2 A, in each case for 8 modules | |
| Power dissipation | ≤ 500 mW, without modules | |
| Reverse polarity protection | yes |
Redundancy
| Supply | Redundancy available. The supply for the isolators is decoupled, monitored and fused. |
Fault indication output
| Connection | X20: terminals 1, 2 | |
| Output type | volt-free contact | |
| Switch behaviour |
no fault: relay contact closed
power supply fault: relay contact open |
|
| Contact loading | 30 V DC, 1 A |
Indicators/settings
| Display elements |
LED PWR1 (termination board power supply), green LED
LED PWR2 (termination board power supply), green LED LED FAULT (fault indication), red LED LED flashes: power supply fault |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
Conformity
| Electromagnetic compatibility |
NE 21:2017
For further information see system description. |
|
| Degree of protection | IEC 60529:2001 |
Ambient conditions
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) |
Mechanical specifications
| Degree of protection | IP20 | |||||||||||||
| Connection | ||||||||||||||
|
||||||||||||||
| Core cross section | 0.25 … 1.5 mm2 (24 … 16 AWG) | |||||||||||||
| Material | housing: polycarbonate, 10 % glass fiber reinforced | |||||||||||||
| Mass | approx. 355 g | |||||||||||||
| Dimensions | 108 x 200 x 163 mm (4.25 x 7.9 x 6.42 inch) (W x H x D), depth including module assembly | |||||||||||||
|
||||||||||||||
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |||||||||||||
Data for application in connection with hazardous areas
| EU-type examination certificate | CESI 06 ATEX 022 | ||||
|
|||||
| Non-hazardous area | |||||
|
|||||
| Galvanic isolation | |||||
|
|||||
| Directive conformity | |||||
|
|||||
International approvals
| UL approval | E106378 | |||||||
|
||||||||
| IECEx approval | ||||||||
|
||||||||
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
