KFD2-SH-Ex1 Switch Amplifier

Ask for price

  • 1-channel isolated barrier
  • 24 V DC supply (Power Rail)
  • Input for approved dry contacts or SN/S1N sensors
  • Relay contact output
  • Fault indication output
  • Line fault detection (LFD)
  • Up to SIL 3 acc. to IEC/EN 61508
  • Up to PL d acc. to EN/ISO 13849

Attachments:
KFD2-SH-Ex1 Data Sheet
KFD2-SH-Ex1 EU Declaration of Conformity

Add to Compare
Brand: Pepperl+Fuchs
Description

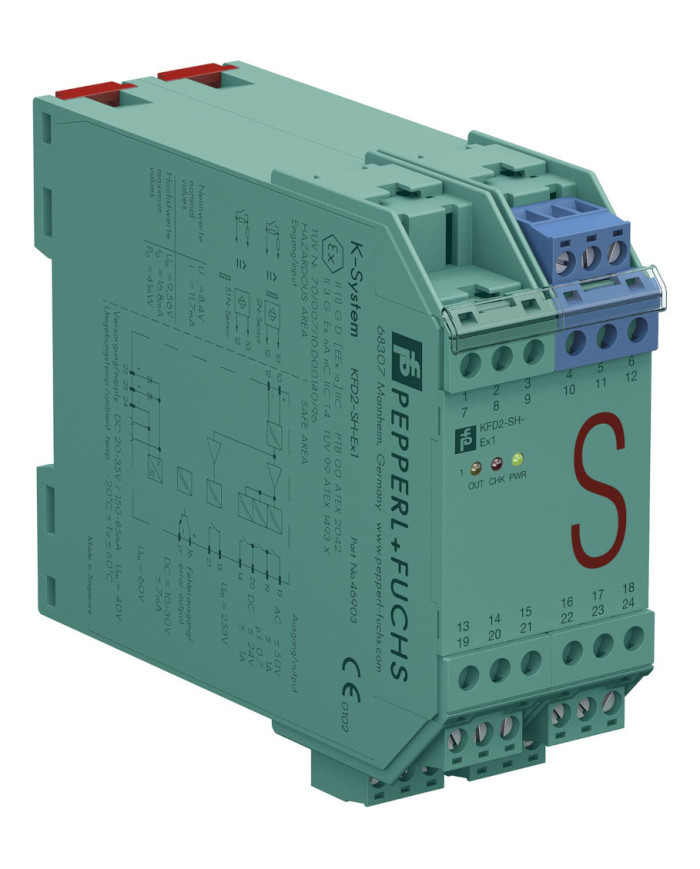

This isolated barrier is used for intrinsic safety applications.
The device transfers digital signals (SN/S1N proximity sensors or approved dry contacts) from a hazardous area to a safe area.

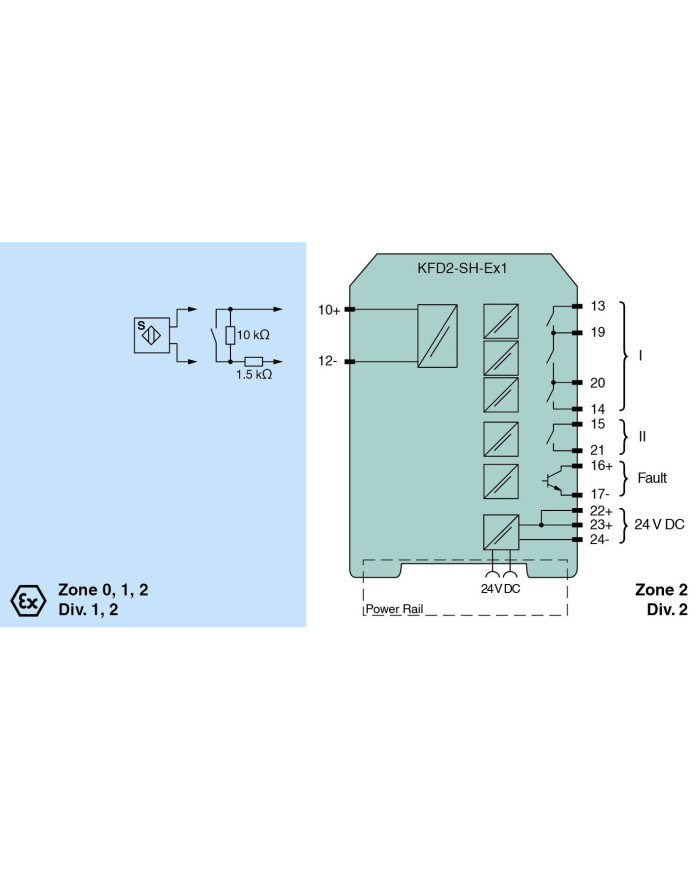

The input controls one relay contact output with 3 NO contacts (one output is in series to the both output relays for the safety function), one relay contact output with one NO contact, and one passive transistor output.
Unlike an SN/S1N series proximity sensor, a mechanical contact requires a 10 kΩ resistor to be placed across the contact in addition to a 1.5 kΩ resistor in series.
Lead breakage (LB) and short circuit (SC) conditions of the control circuit are continuously monitored.
During an fault condition, the fault indication output energizes and outputs I and II de-energize.
For safety applications up to SIL 3, output I must be used. For safety applications up to SIL 2, output I and output II can be used.

Technical data


General specifications

Signal type Digital Input

Functional safety related parameters

Safety Integrity Level (SIL) SIL 3
Systematic capability (SC) SC 3
Performance level (PL) PL d

Supply

Connection Power Rail or terminals 22+, 23+, 24-
Rated voltage Ur 20 … 35 V DC
Ripple ≤ 10 %
Rated current Ir ≤ 130 mA
Power dissipation 2.1 W
Power consumption max. 2.3 W

Input

Connection side field side
Connection terminals 10+, 12-
Open circuit voltage/short-circuit current approx. 8.4 V DC / approx. 11.7 mA
Lead resistance ≤ 50 Ω, in hazardous area cable capacitances and inductivities are to be taken into account
Switching point
Relay de-energized I < 2.1 mA and I > 5.9 mA
Relay energized 2.8 mA < I < 5.3 mA
Response delay ≤ 1 ms

Output

Connection side control side
Connection output I: terminals 13, 14 ; output II: terminals 15, 21 ; output III: terminals 16+, 17-
Output I relay, signal
Contact loading 50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive load
Mechanical life 50 x 106 switching cycles
Output II relay, signal
Contact loading 50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive load
Mechanical life 50 x 106 switching cycles
Output III electronic output, passive, fault signal
Rated voltage 10 … 30 V DC
Signal level 1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output
(Leakage current ≤ 10 µA)

Transfer characteristics

Switching frequency 5 Hz

Galvanic isolation

Output/power supply reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Mutual output I, II, III basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff

Indicators/settings

Display elements LEDs
Labeling space for labeling at the front

Directive conformity

Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Machinery Directive
Directive 2006/42/EC EN/ISO 13849-1:2015

Conformity

Electromagnetic compatibility NE 21:2017, EN 61326-3-1:2017
Degree of protection IEC 60529:2001
Safety IEC/EN 61508:2010

Ambient conditions

Ambient temperature -20 … 60 °C (-4 … 140 °F)

Mechanical specifications

Degree of protection IP20
Connection screw terminals
Mass approx. 280 g
Dimensions 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D), housing type C1
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

EU-type examination certificate PTB 00 ATEX 2042
Marking II (1)G [Ex ia Ga] IIC
II (1)D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I
Input Ex ia
Voltage Uo 9.56 V
Current Io 16.8 mA
Power Po 41 mW (linear characteristic)
Supply
Maximum safe voltage Um 40 V AC/DC (Attention! The rated voltage can be lower.)
Output
Maximum safe voltage Um output I/output II: 253 V AC/DC (Attention! Um is no rated voltage.)
output III: 60 V AC/DC (Attention! Um is no rated voltage.)
Certificate TÃœV 99 ATEX 1493 X
Marking II 3G Ex ec nC IIC T4 Gc
Galvanic isolation
Input/Output safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
Directive 2014/34/EU EN IEC 60079-0:2018+AC:2020, EN 60079-7:2015+A1:2018, EN 60079-11:2012, EN IEC 60079-15:2019

International approvals

FM approval
Control drawing 116-0158
IECEx approval
IECEx certificate IECEx TUN 19.0013X
IECEx marking Ex ec nC IIC T4 Gc

General information

Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
