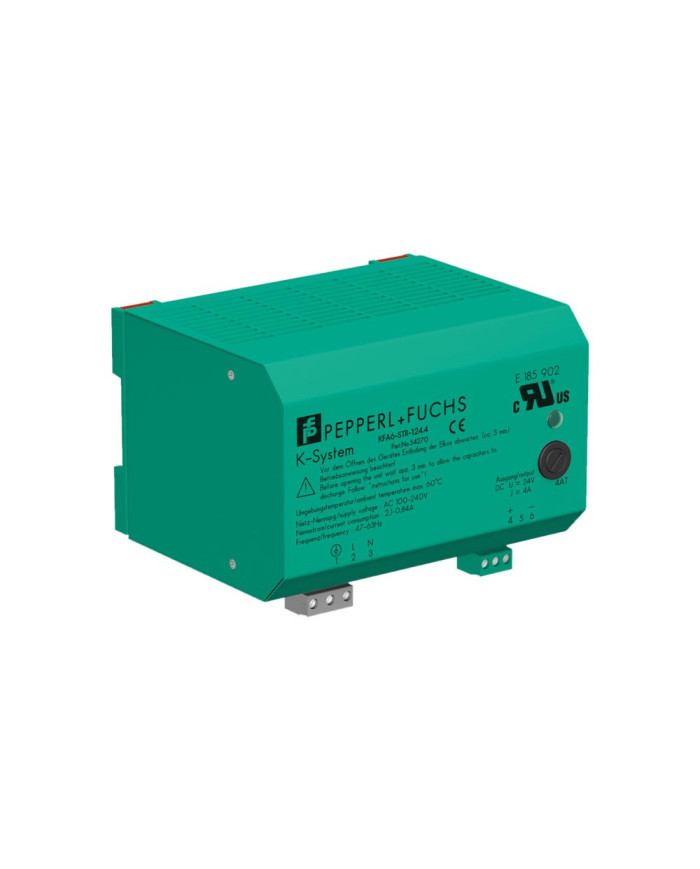

KFA6-STR-1.24.4 Power Supply
Ask for price
Electric power supply; removable terminals; supply voltage 92 V … 265 V AC; output voltage 24 V DC, 4 A; suitable for Power Rail supply
- 115/230 V AC supply
- Output 24 V DC, 4 A
- Fused output
- Power Rail connection
Description
Product Details
This regulated power supply provides 24 V DC, at 4 A. It features removable terminals, LED fault indication, and mounts directly on the Power Rail.
Designed with a replaceable fuse and LED, it will provide a green visual indication for normal operation or a flashing red indication if a fault occurs.
Attention: Ignoring the safety instructions (i. e., touching hot sections when the device is open, handling malpractices) can be extremely dangerous.
When exceeding the values stated in the technical data, there is a danger of overheating. As a result, the operation of the power supply and its electrical safety may be impaired.
Before starting installation or service, switch mains off. Do not plug or unplug powered!
Technical data
Supply

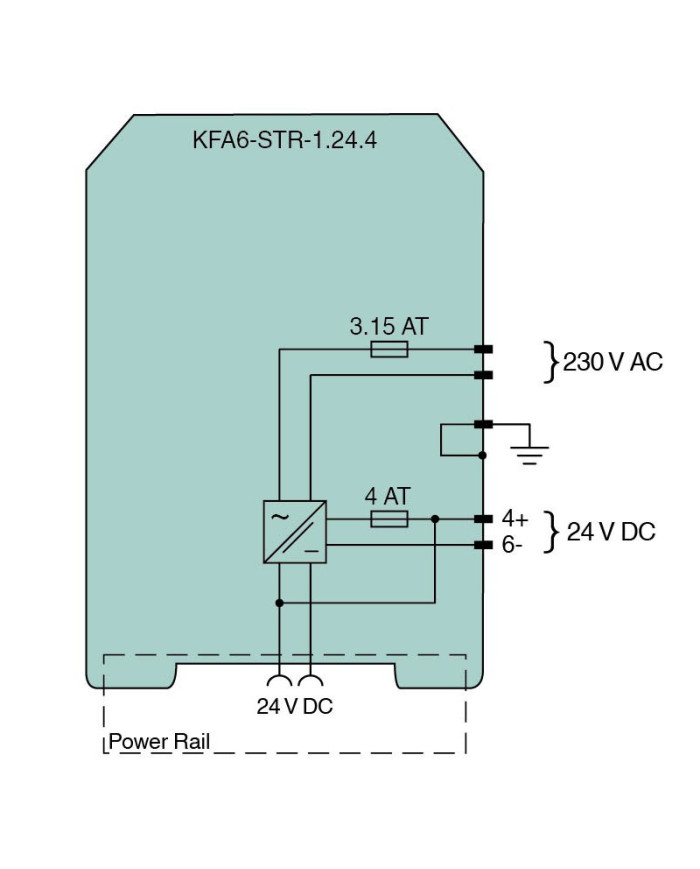

| Connection | terminals 1(PE), 2 (L1), 3 (N) | |
| Rated voltage | Ur | 92 … 265 V AC, 47 … 63 Hz |
| Rated current | Ir | 2.1 … 0.84 A |
| Fusing |
back-up fuse:
B characteristic: 16 A B characteristic: 10 A C characteristic: 6 A |
|
| Failure override time | > 75 ms / 230 V AC; 5 ms / 115 V AC |
Output
| Connection | terminals 4+, 6- | |
| Current | 0 … 4 A, Power Rail limiting by means of fuse 4 AT, electron. limitation typ. 4.6 A | |
| Output current | max. 4 A | |
| Output voltage | 24 V DC | |
| Ripple | < 100 mVss | |
| Efficiency | typ. 87 % | |
| Voltage limitation | < 28 V DC |
Galvanic isolation
| Power supply/Output | for 253 V AC design insulation voltage |
Indicators/settings
| Display elements | LED | |
| Labeling | space for labeling at the front |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
| Low voltage | |||||
|
|||||
Conformity
| Degree of protection | IEC 60529:2001 |
Ambient conditions
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) |
Mechanical specifications
| Degree of protection | IP20 | ||||||||||
| Connection | self-opening connection terminals | ||||||||||
| Core cross section | max. 2 x 2.5 mm2 | ||||||||||
| Mass | approx. 800 g | ||||||||||
| Dimensions | 140 x 101 x 114 mm (5.5 x 4.0 x 4.5 inch) (W x H x D) | ||||||||||
|
|||||||||||
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | ||||||||||
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
