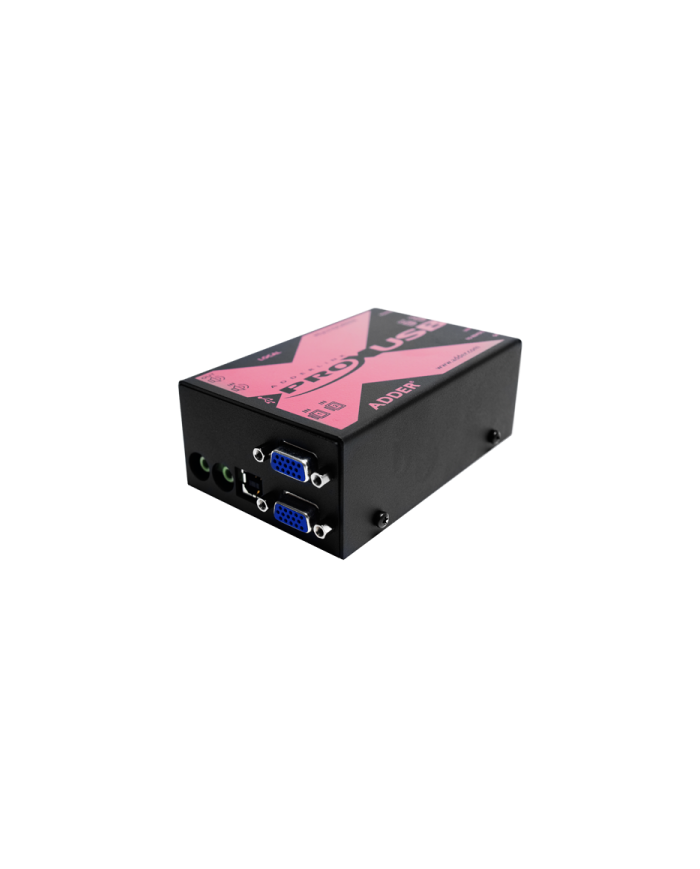

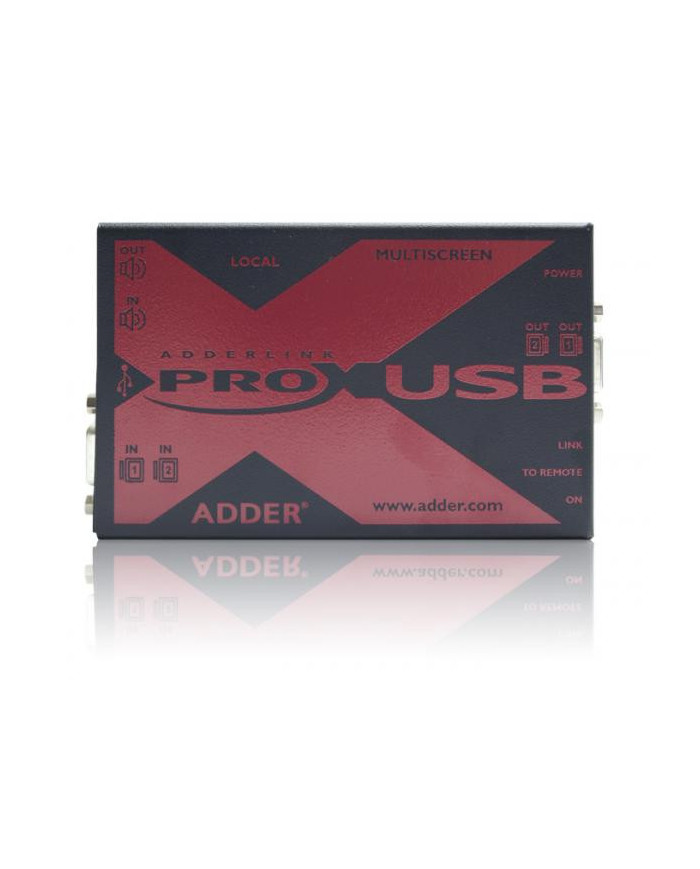

ADDERLink X-USB PRO MS VGA Extender

Product Features

• Multiscreen: Replicating the exact content shown on the local monitor
• Digital-quality video: VGA resolutions of up to 1920 x 1200 @60Hz are achievable at 300m. Variable noise filter for extension in excess of 200m
• Video compensation: Multi-pole compensation technique enables uncompromised video quality at maximum distance over a single cable. Color skew compensation and gain adjustment controlled from the receiver’s keyboard to ensure crystal clear images
• Local feed through port: For audio and video, enabling a local console to be used
• USB powered transmitter: Reduces the need for external supplies, with external power supply in place as backup
• Dual user configuration: Two X-USB PRO units linked to the USB sub-system of a single computer enables two users to access the system simultaneously
• Emulated two page DDC EDID: Support for full two page Display Data Channel Extended Display Identification Data which enables the remote system to exactly mirror the data coming from the source monitor
• USB support: Low and Full speed USB extension supporting all USB compatible accessories (including isochronous devices). 4 port USB hub within the receiver unit enables a complete desktop to be located remotely, including support for keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device USB device.
• Audio transmission: Delivers CD quality stereo audio for speakers
• Rack options: Both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis.

Specification

Video

• Video resolution up to 1920x1200 at 60Hz

Audio (end to end)

• 2 channel 16bit Audio @ 44.1kHz
• THD+N (Total Harmonic Distortion + Noise) typically -80dB at 1kHz
• SNR typically 85dB at 1kHz

Approvals / Compliance

• CE
• FCC Class A

Standards

• Supports all USB 1.1 devices (Full speed and Low speed modes) and USB 2.0 devices that will run in Low speed or Full speed USB 1.1 modes

Skew Compensation

• 62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)

Cable Guidelines

• 200m using CAT5 Trunk cable
• 250m using CAT5e Trunk cable
• 300m using CAT6 Trunk cable
• 300m using CAT7 Trunk cable
• 200m using CAT7a Patch cable

Environmental

• Operating Temperature: 0ºC to 40ºC

Connectors – Local Unit

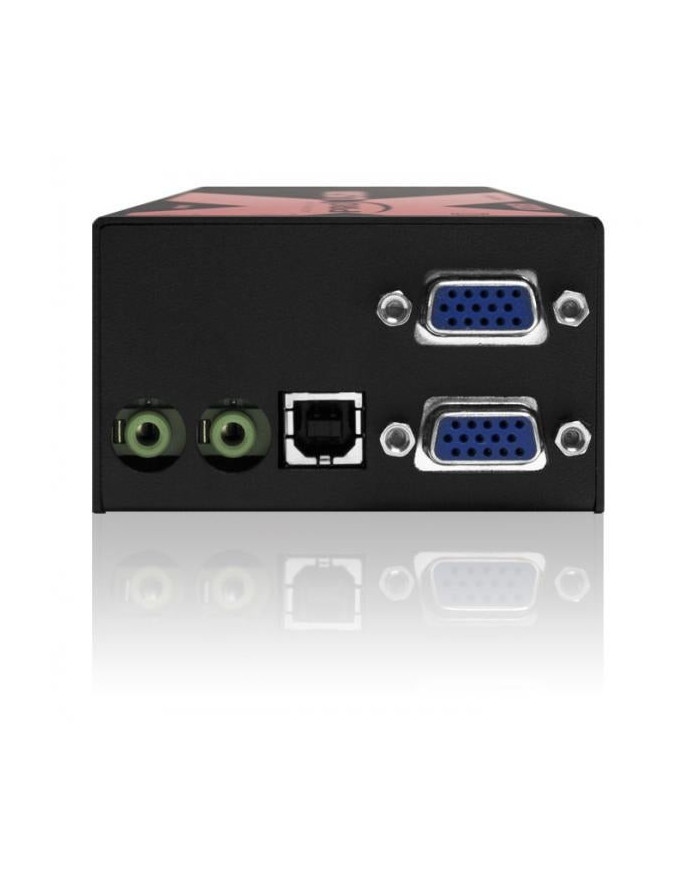

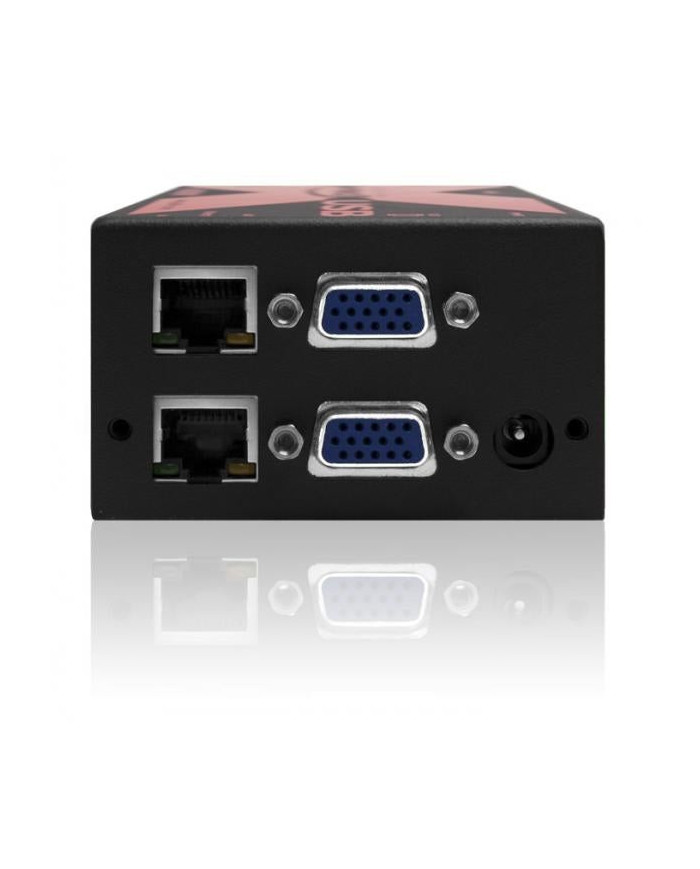

• Local: 4 x 15 Pin D Type VGA, 1 x USB B, power jack, 2 x 3.5mm jack socket and 2 x RJ45

Connectors – Remote Unit

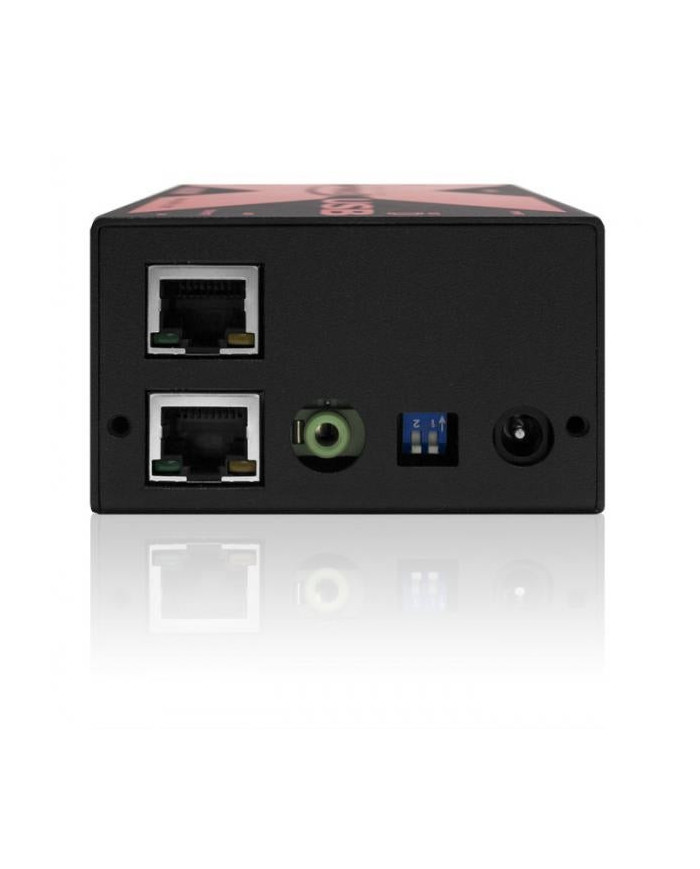

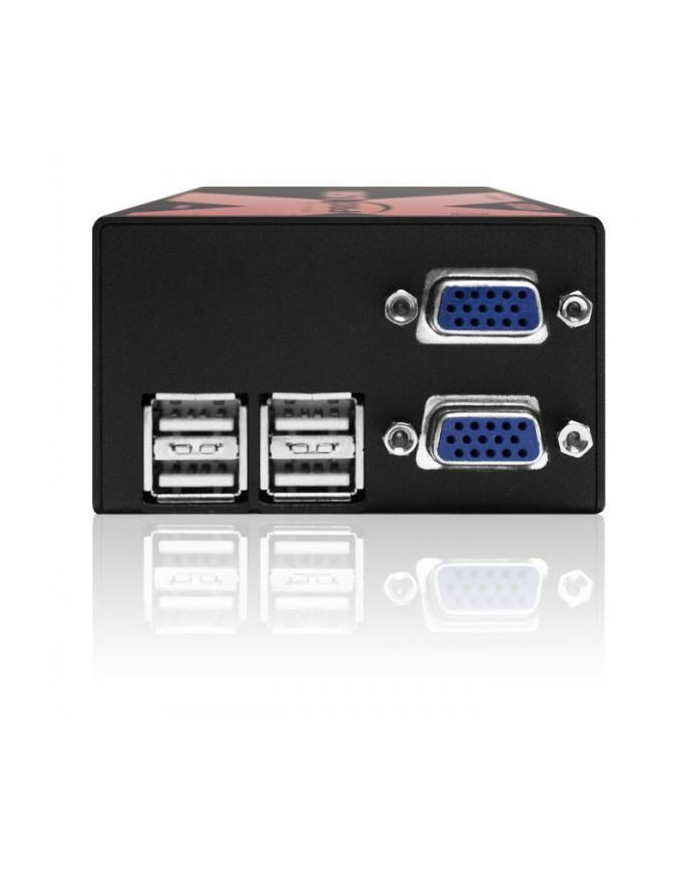

• Remote: 2 x 15 Pin D Type VGA, 4 x USB A, power jack, 3.5mm jack socket and 2 x RJ45

Mechanical

• Local: All metal case, 122mm (w) x 75mm (d) x 48mm (h), 500g
• Remote: All metal case, 162mm (w) x 75mm (d) x 48mm (h), 650g

Power

• 100 - 240V AC, 50/60Hz input
• 5V, 12W output

Software

• Support for all known software and operating systems including Windows(all), DOS, Linux, UNIX, BSD, Sun OS, Solaris, Mac OS, NetWare
