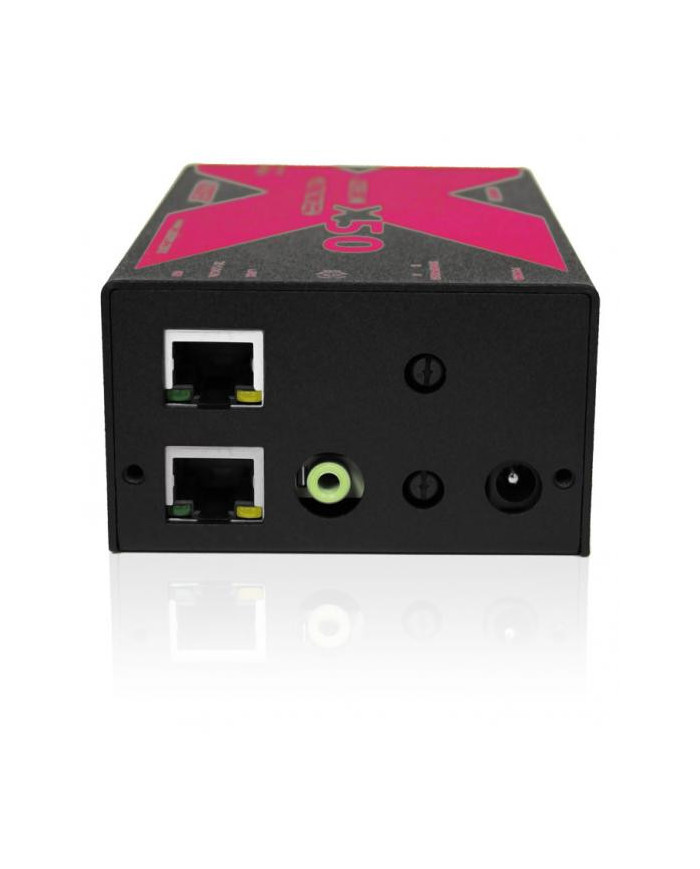

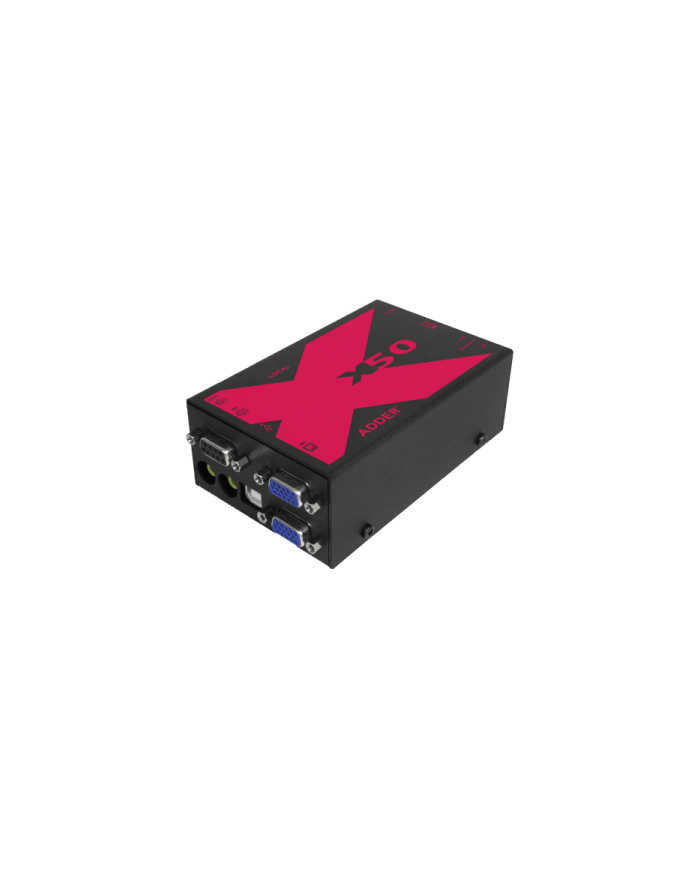

ADDERLink X50-MS VGA Extender
Ask for price
ADDERLink X50-MS is compact in size and delivers uncompressed, lossless extension of USB peripherals including Keyboards, Video and Mice (KVM) up to 50m over a single CAT5 or higher UTP cable. Sharp, bright and ultra high-resolution video plus digital stereo audio are delivered over a VGA interface to multiple screens with total USB 2.0 compatibility, regardless of the computer being controlled or the peripheral being extended.
Description
Product Details
Product Features
- MultiScreen option: ADDERLink X50 MultiScreen (MS) adds a second video and transparent, High speed RS232 up to baud rates of 115200 to enable extension of computers with dual monitors
- Fully transparent Low/Full speed USB: delivers the highest possible levels of USB compatibility through a unique USB communication method. Integrated 4 port hub to support all USB 1.1 and 2.0 Low/Full speed devices.
- High-performance video: industry leading video quality at high resolutions of 1920 x 1200 @ 60Hz over 50m
- Video compensation: broad range of ultra smooth, fine adjustments to video picture
- True DDC Emulation: full supports 2-page Display Data Channel (DDC) ensuring all possible resolutions are supported
- Fully platform independent: support for all common hardware platforms, and their associated peripherals, through fully transparent USB connections
- Digital audio: click-less 44.1kHz CD-quality stereo audio without the need for an additional CATx cable, through Adder’s unique digital transmission of audio signals
- Dual Access: both a local video and audio output provided at the transmitter unit to enable local control of extended computers (USB devices can be plugged directly into the computer)
- Extended common mode input range: failsafe operation thanks to a special termination system, allowing the common mode range to be extended
- High density rack mount option: chassis houses up to 16 ADDERLink X50-MS units in 2U of rack space
Specification
Video Resolution
- 1920 x 1200 @ 60Hz at distances up to 50m
Approvals / Compliance
- CE
- FCC
Standards
- Supports all computers with USB style keyboards and mice, HDD15 video connectors and audio through 3.5mm audio jack. Supports all USB devices.
Cable Guidelines
- Up to 50m using CATx cable (x=5,5e,6)
- The maximum extension distance for USB is 50m including connections to and from the X50 independent of cable type. If a USB hub is connected to the RX unit, this is seen as 5m of cable length. This needs to be taken into consideration when planning your system.
Environmental
- 0 to 40ºC
Connectors – Local Unit
- ADDERLink X50-MultiScreen: As for as X50 plus extra Video input/output: HDD15 and Serial: DB9
Connectors – Remote Unit
- ADDERLink X50-MultiScreen: As for as X50 plus extra Video: HDD15 and Serial: DB9
Mechanical
- Local Unit: All metal case, 120mm (w) x 75mm (d) x 44mm (h), 430g
- Remote Unit: All metal case, 120mm (w) x 75mm (d) x 44mm (h), 430g
Power
- 100 - 240VAC, 10W, 50/60Hz (Remote unit only)
Software
- Compatible with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare
Data sheet
| Dimensions | 120 x 75 x 44 mm |
|---|---|
| Weight | 430 g |
| Operating temperature | 0°C ~ +40°C |
| Video resolution | 1920 x 1200 @ 60Hz |
| Video connector | 2x VGA |
| Power consumption | 10 W |
