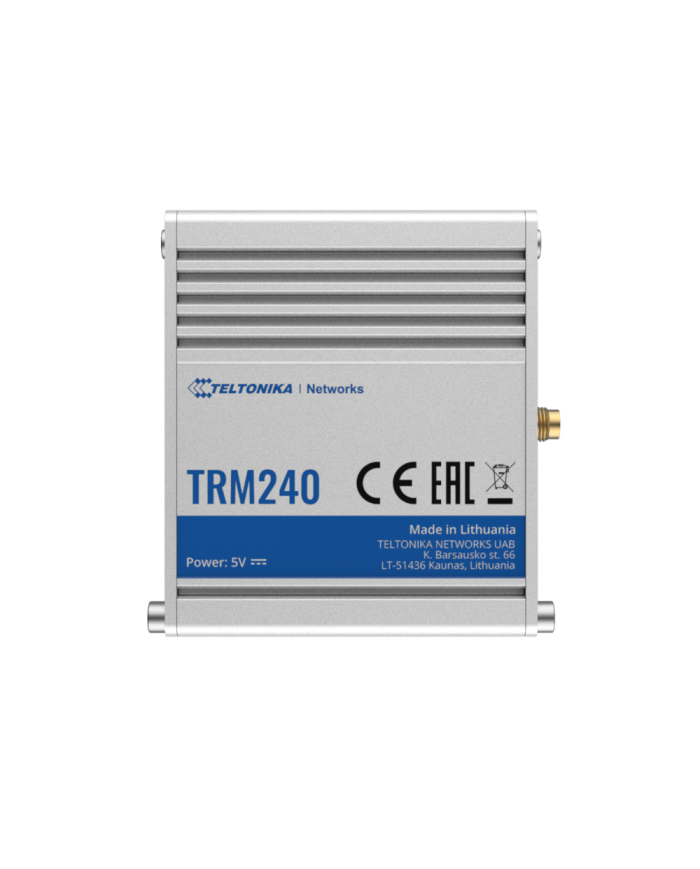

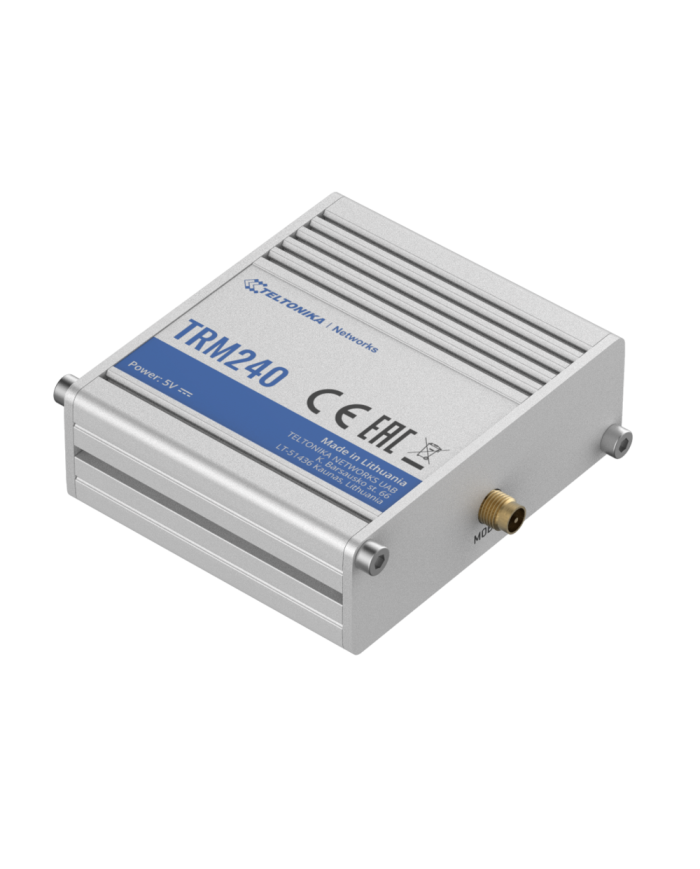

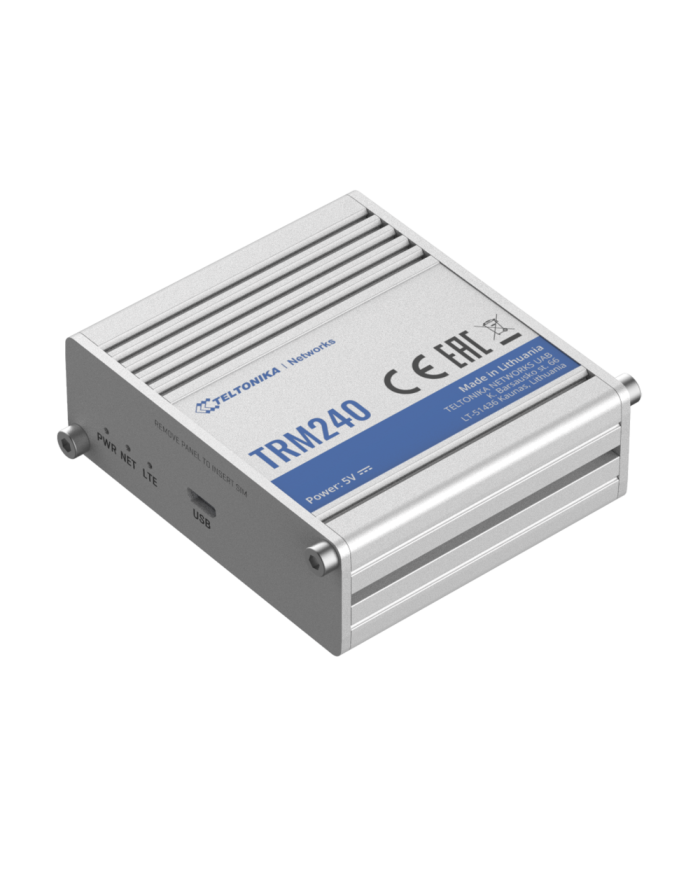

TRM240 Modem
Ask for price
Industrial Cellular Modem
Connectivity: 4G/LTE (Cat 1), 3G, 2G
Durability: rugged aluminium housing
USB: interface for internet access
Efficiency: low power consumption
Compactness: small size, easy installation
Ease of use: controlled using Network manager
Description
Product Details
Industrial grade cellular LTE Cat 1 modem with rugged aluminium housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments. It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IIoT projects. TRM240 comes with a USB interface for power and communication. The device offers a wide range of operating temperatures (-40°C ~ +75°C).
Standard package contains
- TRM240 Modem
- 1 x LTE antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1 x hex key
- QSG (Quick Start Guide)
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Operating voltage | 5 VDC |
|---|---|
| Connectivity | 2G 3G 4G/LTE Cat 1 |
| Maximum power consumption | 3,2 W |
| Dimensions | 74,5 x 25 x 64,5 mm |
| Weight | 131 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C - 75°C |
| IP degree of protection | IP30 |
| USB ports | 1 |
| SIM slots | 1 |
