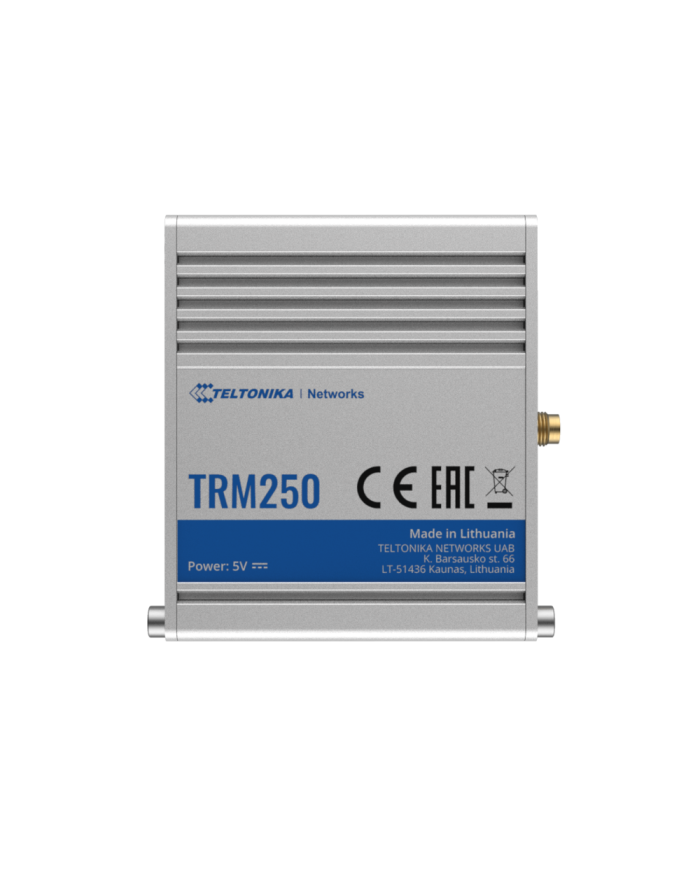

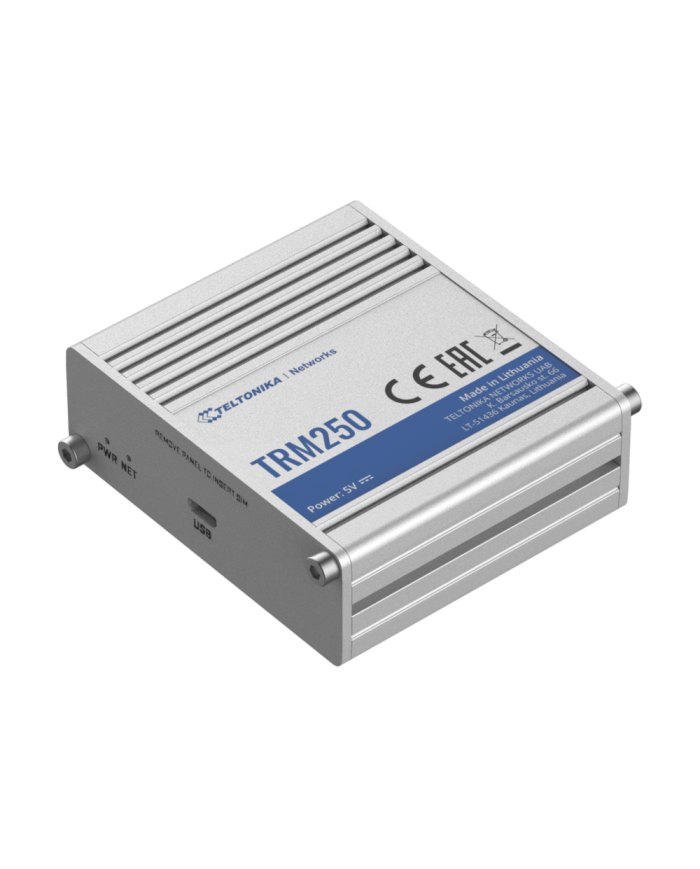

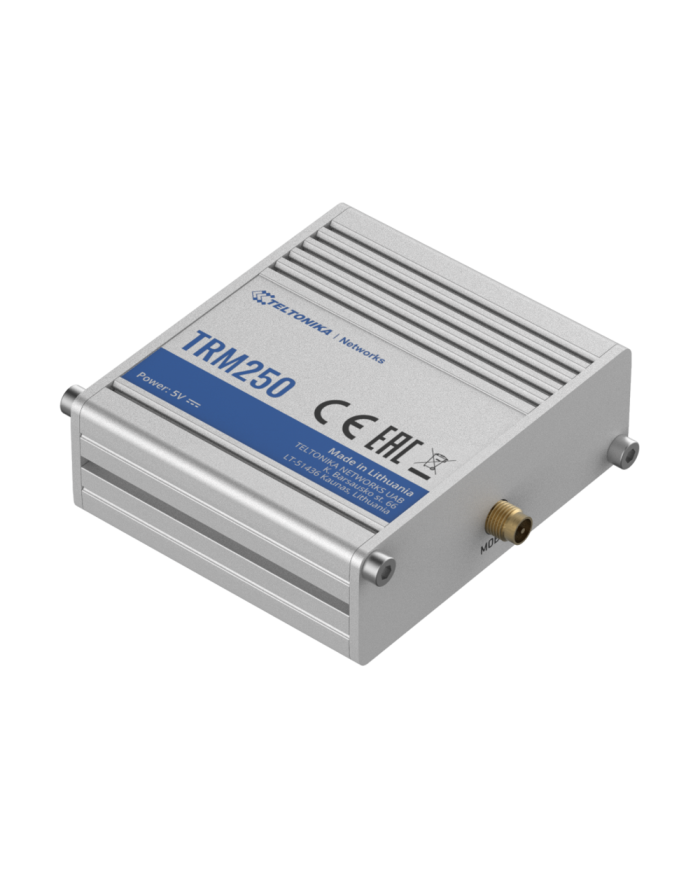

TRM250 Modem
Ask for price
Industrial Cellular Modem
Connectivity: 4G/LTE (Cat M1), NB-IoT, 2G
Durability: rugged aluminium housing
USB: interface for internet access
Efficiency: low power consumption
Compactness: small size, easy installation
Ease of use: controlled using Network manager
Description
Product Details
TRM250 is an industrial grade cellular modem with multiple LPWAN connectivity options. It features NB-IoT, LTE Cat-M1, and is backward compatible with EGPRS (2G). It offers an extremely long lifecycle, low power consumption, and is the most flexible option when upgrading the connectivity of existing industrial equipment. TRM250 has a USB interface, a durable aluminum housing, and an external antenna for better signal coverage. It is perfect for providing cost-efficient internet connectivity in remote monitoring applications. The device offers a wide range of operating temperatures (-40°C ~ +75°C).
Standard package contains
- TRM250 Modem
- 1 x LTE antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1 x hex key
- QSG (Quick Start Guide)
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Operating voltage | 5 VDC |
|---|---|
| Connectivity | 2G 4G/LTE Cat M1 NB-IoT |
| Maximum power consumption | 3,6 W |
| Dimensions | 74,5 x 25 x 64,5 mm |
| Weight | 130 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C ~ +75°C |
| IP degree of protection | IP30 |
| USB ports | 1 |
| SIM slots | 1 |
