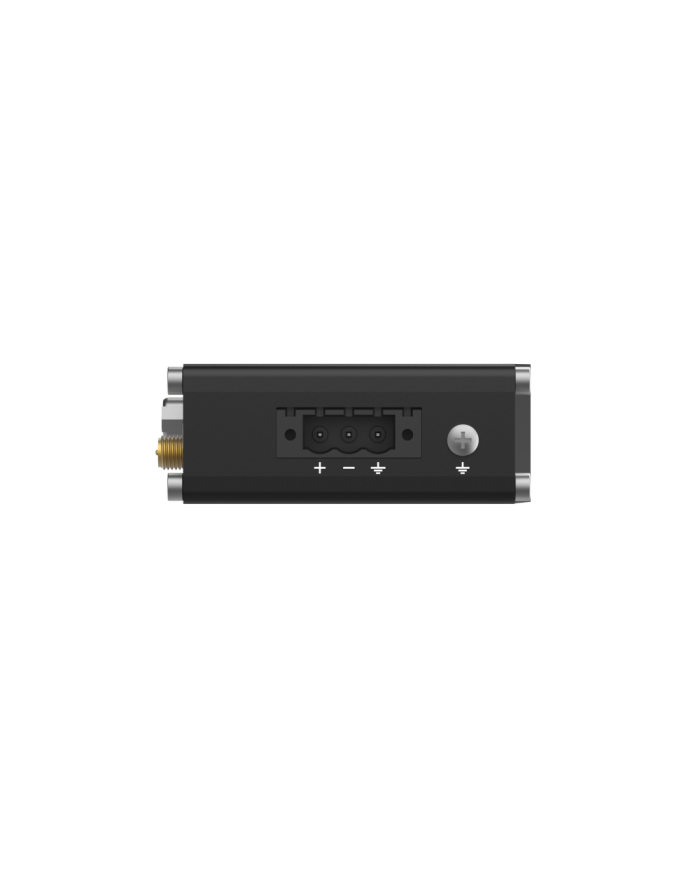

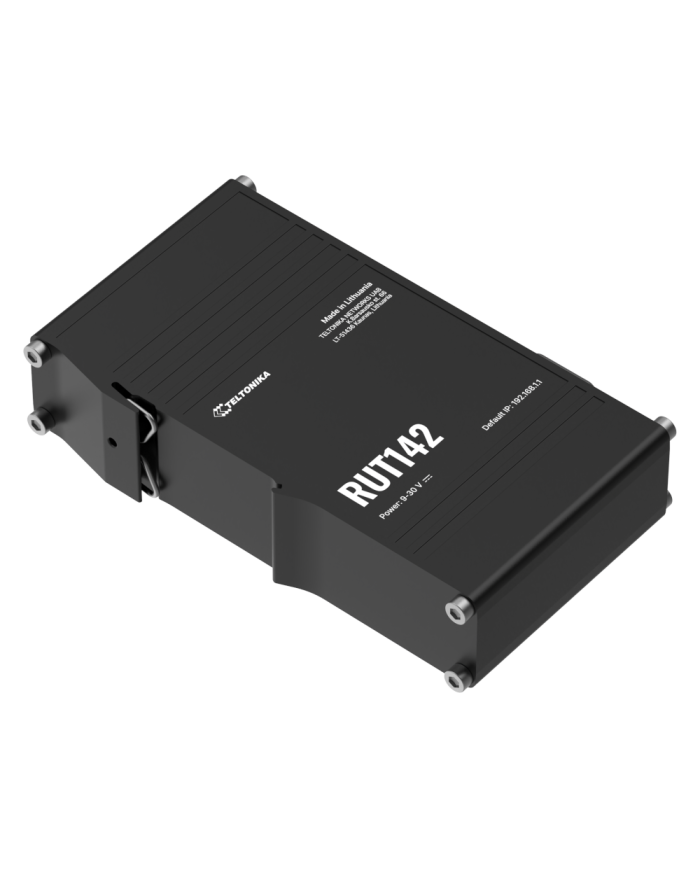

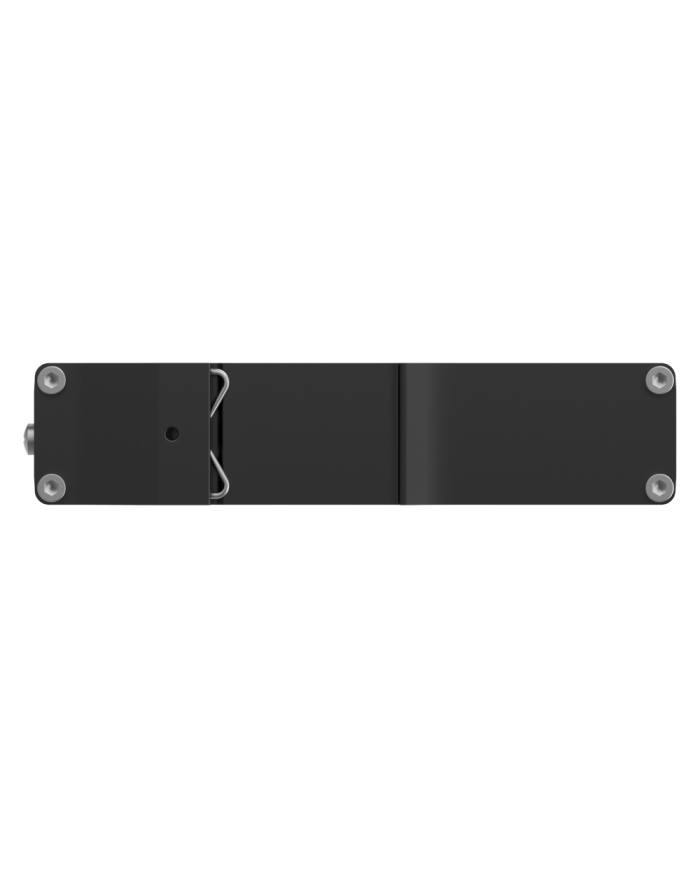

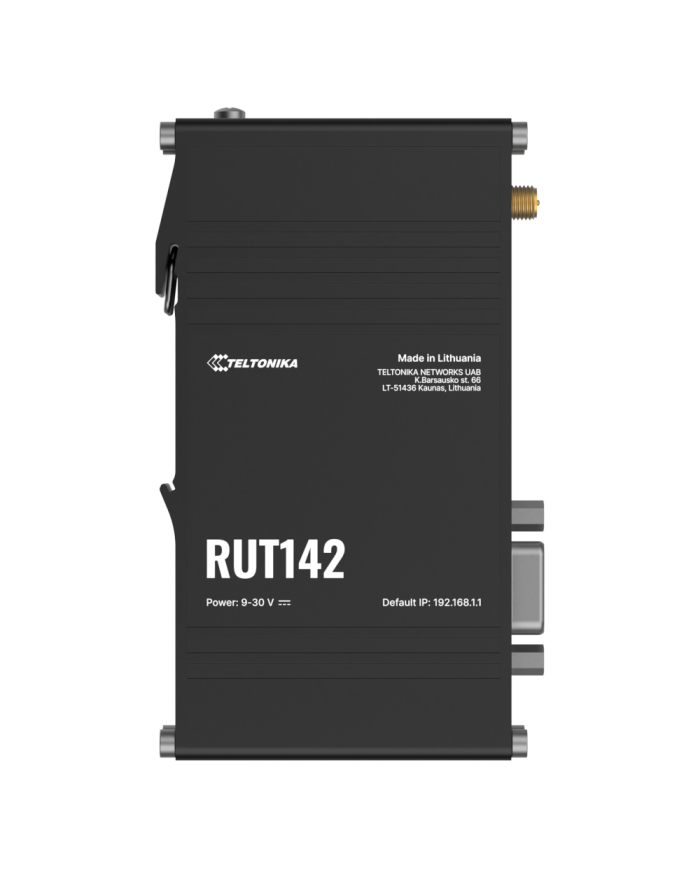

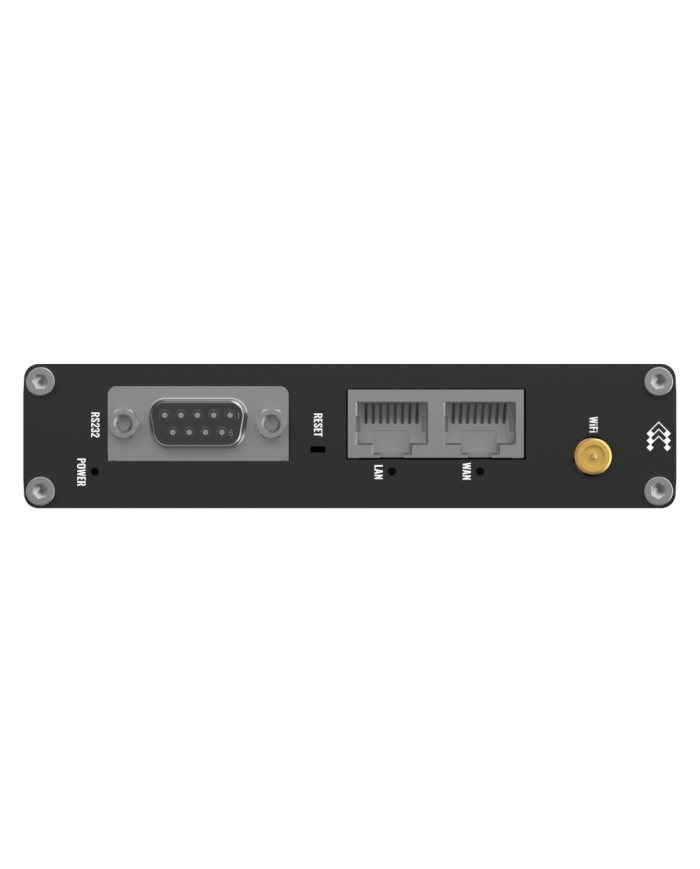

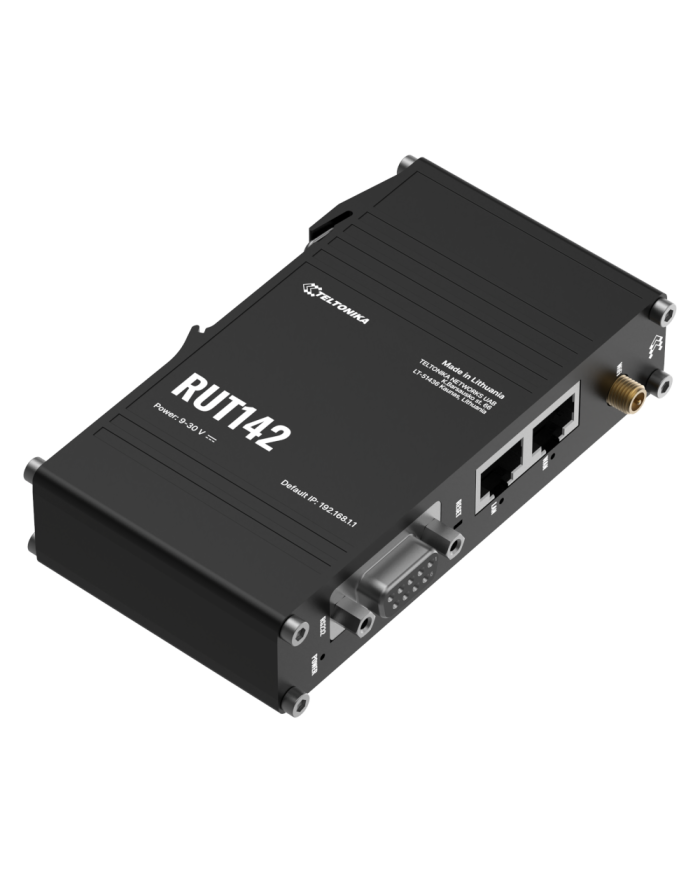

RUT142 Router
Ask for price
Industrial RS232 Router
Connectivity - 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
Serial interface - RS232 for serial communication
Industrial design - Integrated DIN rail bracket and a 3-pin power connector
RMS - Remote management, access & VPN services
Description
Product Details
The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
KEY FEATURES
Hardware
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Storage | 16 MB serial NOR flash |
| Memory | 128 MB, DDR2 |
| Powering options | 3-pos plugable terminal block, 9-30 VDC |
| Antenna connectors | 1 x RP-SMA for Wi-Fi |
| Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN, 1 x LAN |
| WiFi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Other | 1 x Grounding screw |
| Status LEDs | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| RS232 | 1 x DB9 socket |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with integrated din rail bracket |
| Dimensions (W x H x D) | 113.10 x 25 x 68.6 mm |
| Weight | 149.2 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, Call, Email, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity |
| Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes |
| Modbus | TCP Server, TCP Client, RTU(RS232) |
Standard package
- Router RUT142
- 3-pin power connector
- QSG (Quick Start Guide)
- Packaging box
