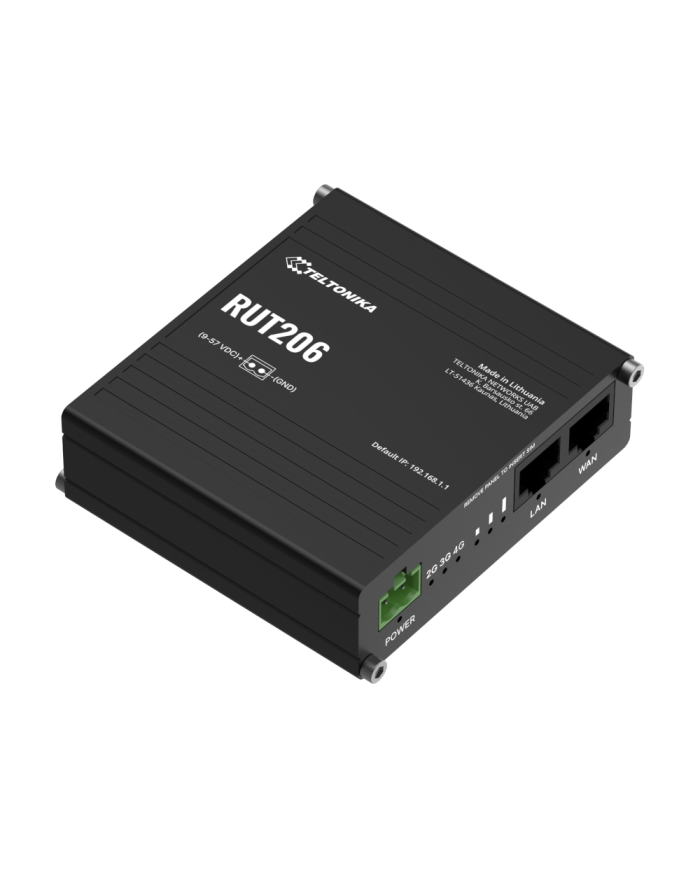

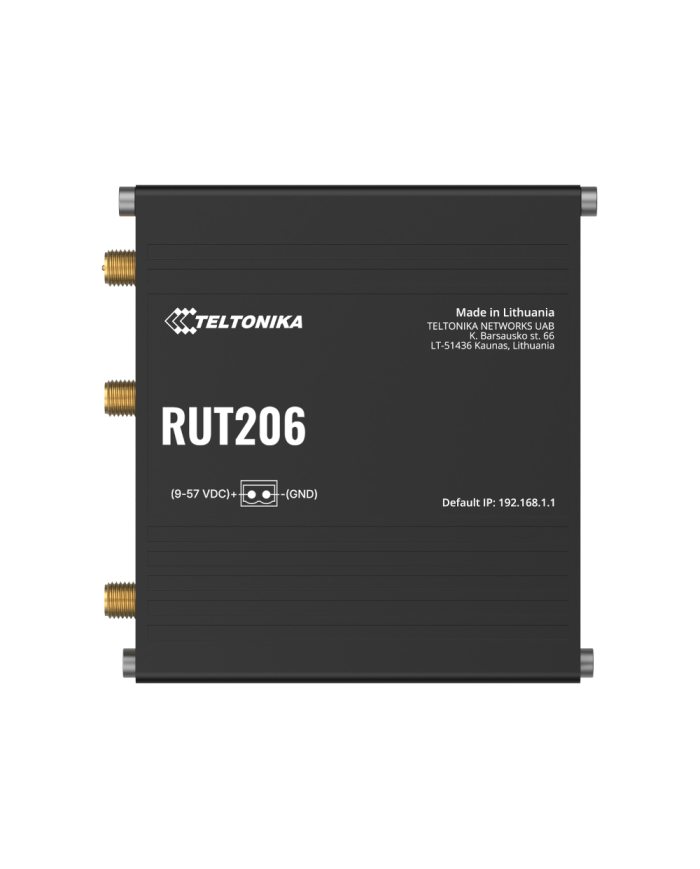

RUT206 Router
Ask for price
Industrial 4G Router
Connectivity - 4G Cat 4, 3G, 2G
Serial interfaces - RS232 & RS485 for serial communication
2-pin power input - Simple and suitable for industrial applications
PoE - Active and Passive PoE inputs
Description
Product Details
The RUT206 is a compact industrial router that supports RS232 and RS485 serial interfaces, along with both active and passive PoE inputs. Its rugged design, 2-pin power input, and expandable data storage via a microSD slot make it an ideal choice for a range of IoT and M2M applications. This 4G Cat 4 router comes with RutOS open-source software and supports key industrial protocols like Modbus, DNP3 and DLMS.
KEY FEATURES
Hardware
| Mobile | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 32 MB, SPI Flash |
| Powering options | 2-pin industrial DC power socket, 9 - 57 VDC; Active PoE In: 802.3af Class 0 (12.94 W) on LAN port; Passive PoE In: over spare pairs 4,5 (+) / 7,8 (-) on LAN port, 16 - 57 VDC |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, double stacked SIM tray |
| Antenna connectors | 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps: 1 x WAN (configurable as LAN), 1 x LAN |
| Wi-Fi | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Serial | 1 x 6-pin terminal block (RS232, RS485) |
| SD card (capacity) | Up to 2 TB |
| Status LEDs | 3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 83 x 25 x 83 mm |
| Weight | 132 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, Traffic Management |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation, 802.1x |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS, RMS API |
Standard package
- RUT206 router
- 2-pin terminal block
- 2X3PIN connector
- 1 x hex key
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 2 |
|---|---|
| Ethernet speed | 10/100 Mbps |
| Connectivity | 2G 3G 4G/LTE Cat 4 |
| WiFi standard | IEEE 802.11b/g/n |
