RUT361 Router
Ask for price
Industrial Cellular Router
4G/LTE Cat 6 - cellular speeds of up to 300 Mbps with carrier aggregation
Wi-Fi - 802.11 b/g/n wireless access point with hotspot functionality
WAN failover - automatic switching to available backup connection
RMS - for remote management, access & VPN services
Description
Product Details
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
KEY FEATURES
Hardware
| Mobile | 4G (LTE) - Cat 6 up to 300 Mbps (DL) / 50 Mbps (UL), 3G up to 42 Mbps (DL) |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| SIM | 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |

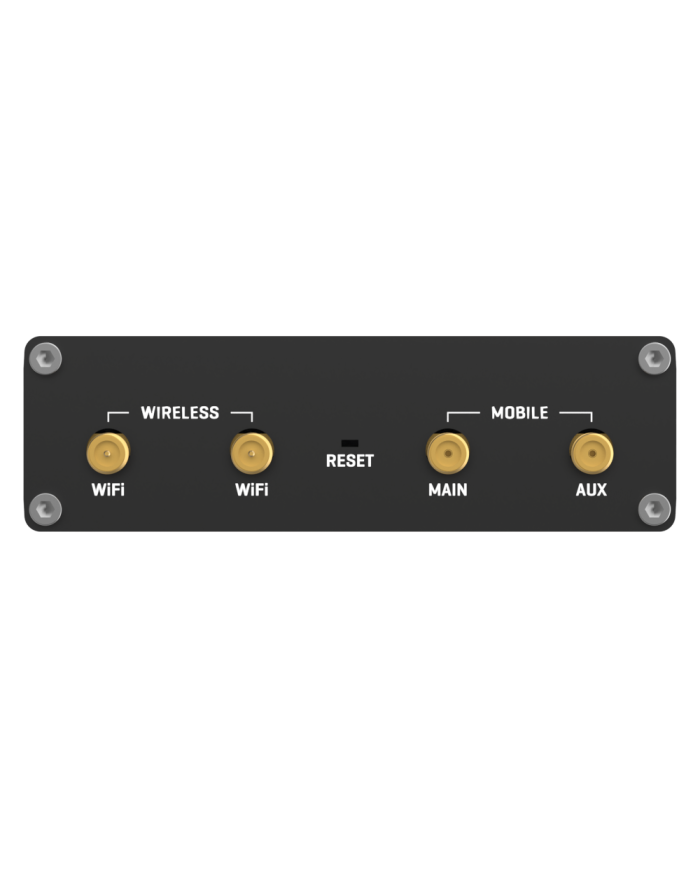

| Antenna connectors | 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi |

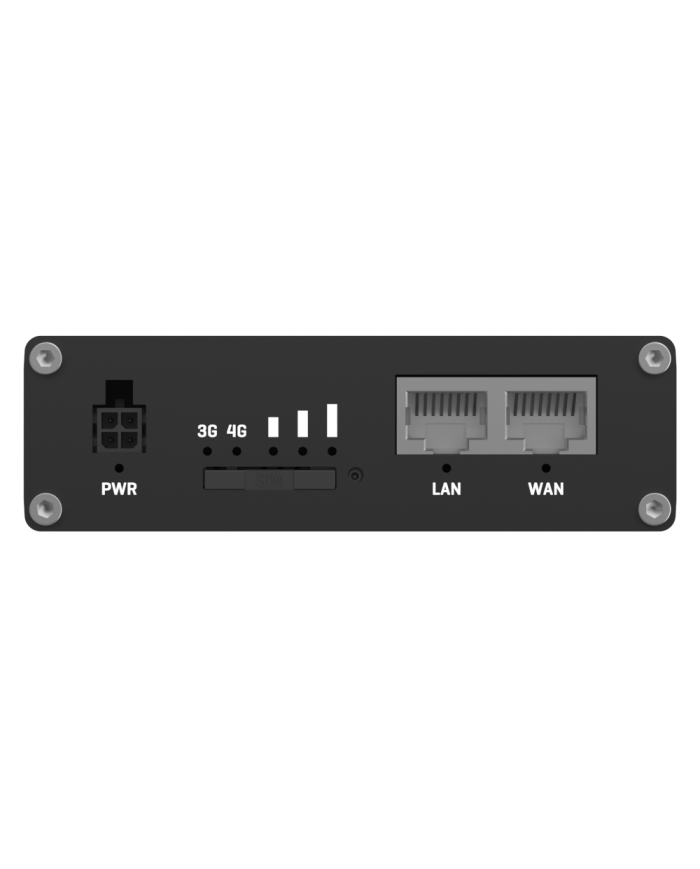

| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| WiFi | 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA) |
| Inputs/Outputs | 2 x Digital Input, 2 x Digital Output on 4-pin power connector |
| Status LEDs | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x ETH status, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing |
| Dimensions (W x H x D) | 93.2 x 100 x 30 mm |
| Weight | 243 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Multiple PDN, Auto APN, Band lock, Operator black/white list, Data/SMS limits |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS,TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| SMS features | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP |
Standard package
- Router RUT361
- 18 W PSU
- 2x Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 2 |
|---|---|
| Ethernet speed | 10/100 Mbps |
| Connectivity | 3G 4G/LTE Cat 6 |
| WiFi standard | IEEE 802.11b/g/n |
