RUTC50 Router
Ask for price
5G Powerhouse Router with Wi-Fi 6
5G - Ultra-high cellular speeds of up to 3.4 Gbps
Wi-Fi 6 - Dual-band multi-user MIMO for superior wireless performance
Processing power - 1 GB RAM and 8 GB flash for edge computing applications
eSIM - Global, touch-free deployments
Description
Product Details
Unleash the full potential of your edge applications with the RUTC50 5G router. This compact powerhouse combines ultra-fast 5G (up to 3.4 Gbps), dual-band Wi-Fi 6, and enhanced processing power with 1GB RAM and 8GB flash memory. Featuring dual SIM and eSIM for global, touch-free deployments, the RUTC50 delivers lightning-fast, low-latency communication for mission-critical operations. Rugged, powerful, and future-ready.
KEY FEATURES
Hardware
| Mobile | 5G Sub-6 Ghz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) - LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G - 42 Mbps DL, 5.76 Mbps UL |
| CPU | Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 |
| RAM | 1GB, DDR4 |
| Storage | 16MB serial NOR flash, 8GB eMMC |
| TPM | Identification and authentication module, TPM 2.0 standard |

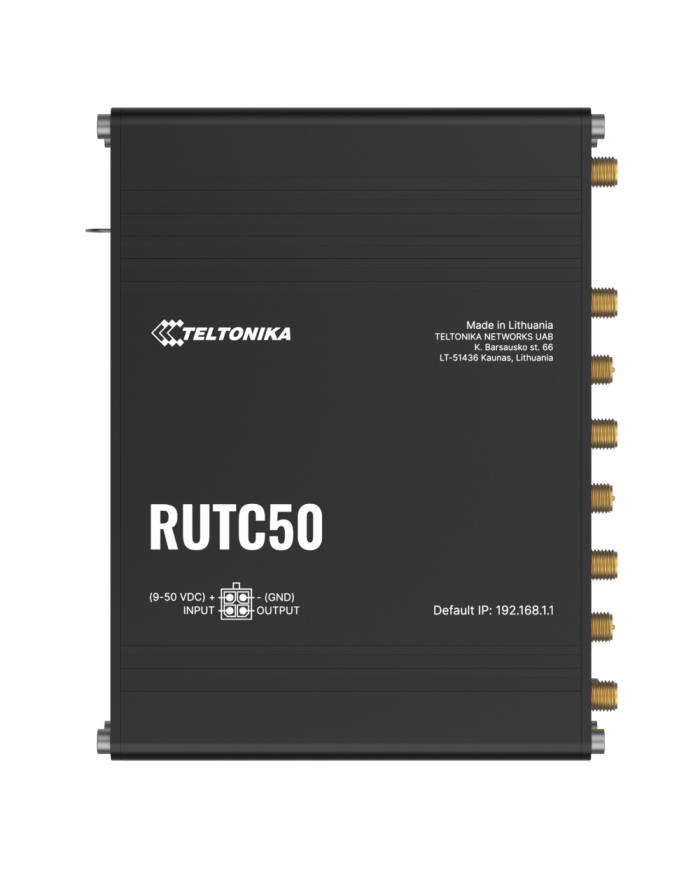

| Powering options | 4-pin industrial DC power socket, 9 - 50 VDC |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |

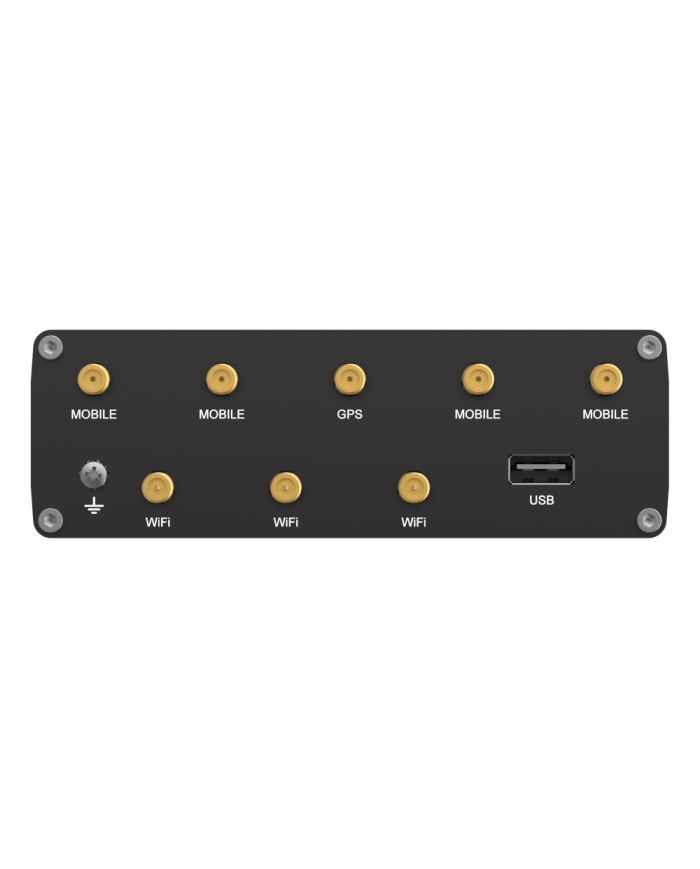

| Antenna connectors | 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |

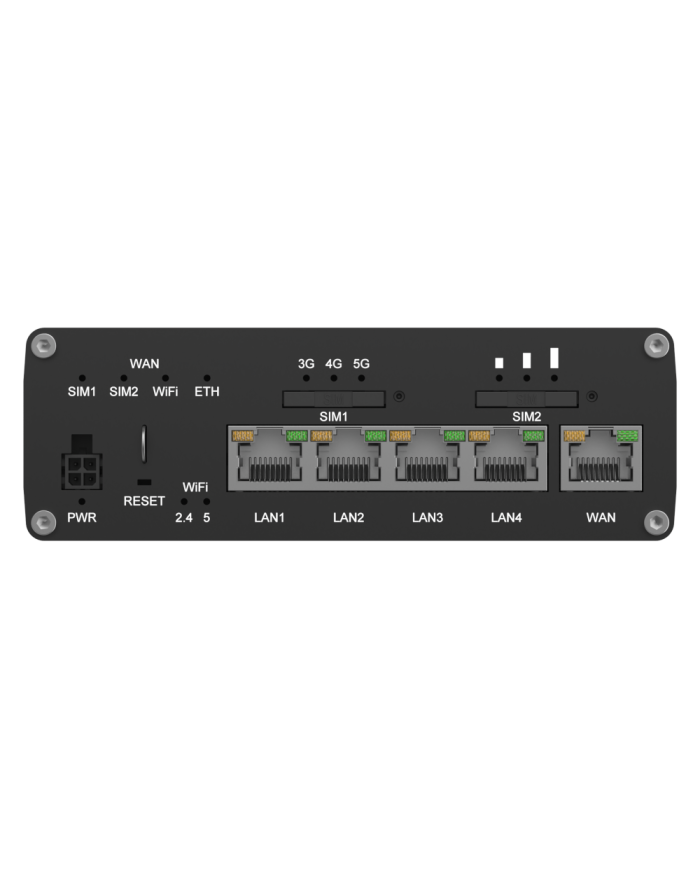

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN |
| Wi-Fi | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5 GHz, 576 Mbps on 2.4GHz (Dual Band, MU-MIMO) |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs |
1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high, 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
| Grounding | 1 x Grounding screw |
| Status LEDs | 4 x WAN status, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4 GHz and 5 GHz Wi-Fi |
| Operating temperature | 40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 130.4 x 42.6 x 103.4 mm |
| Weight | 452 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | eSIM, SIM switch, Status, SMS, USSD, Block/Allow list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, Port Mirroring |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, TPM, SSL certificate generation, 802.1x |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM |
| Location tracking | GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing |
Standard package
- RUTC50 Router
- 24 W PSU
- 4 x 5G Mobile antennas (swivel, SMA male)
- 3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 5 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Connectivity | 3G 4G/LTE Cat 19 5G |
| WiFi standard | IEEE 802.11b/g/n/ac/ax |
