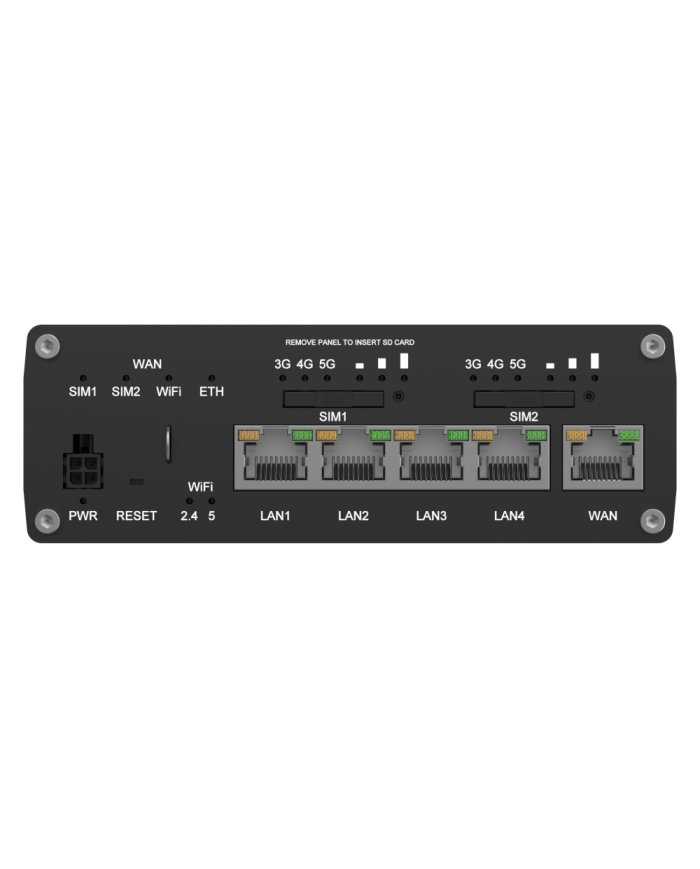

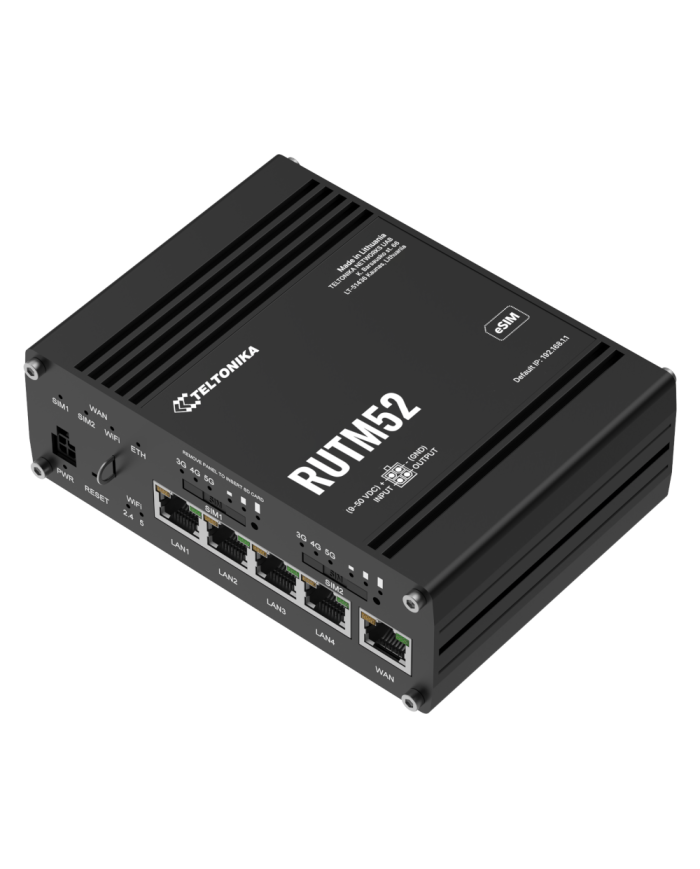

RUTM52 Router
Ask for price
Dual 5G Router
Dual 5G Modem - Up to double cellular speeds and always-on connection
Dual SIM & eSIM - With auto failover, backup WAN and other switching scenarios
SA & NSA - Supports both architectures to leverage the 5G infrastructure
Backward compatibility - Backward compatible with 4G (LTE Cat 20)
Description
Product Details
The RUTM52 is a future-proof 5G router designed for mission-critical applications, featuring dual 5G modems, multi-WAN capabilities, and 4G LTE Cat 20 fallback. With dual SIM slots, eSIM support, and compatibility with SA and NSA 5G architectures, it ensures high-speed, uninterrupted connectivity today and years ahead. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports enhance performance, while RutOS with industrial protocols and various VPNs make it versatile for complex setups. Compatible with RMS, the RUTM52 is ideal for secure and efficient remote management.
KEY FEATURES
Hardware
| Mobile | 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3 Gbps DL (4x4 MIMO) 900/600 Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 20 2.0 Gbps (4x4 MIMO)/UL Cat 20 200 Mbps; 3G: 42 Mbps DL, 5.76 Mbps UL |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| Storage | 16MB serial NOR flash, 256MB serial NAND flash |
| Powering options | 4-pin industrial DC power socket, 9 - 50 VDC |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Antenna connectors | 8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN |
| Wi-Fi | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Grounding | 1 x Grounding screw |
| Status LEDs | 4 x WAN type LEDs, 6 x Mobile connection type, 6 x Mobile connection strength, 10 x Ethernet port status LEDs, 1 x Power, 2 x 2.4 GHz and 5 GHz Wi-Fi |
| Operating temperature | -40 °C to 60 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 95 mm |
| Weight | 530 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Wireless features | SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support, Traffic Management |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation, 802.1x, TPM |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS, Teltonika Networks Web API (beta) support |
| Location Tracking | GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing |
Standard package
- RUTM52 Router
- 18 W PSU
- 8 x 5G Mobile antennas (magnetic mount, SMA male)
- 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 5 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Connectivity | 3G 4G/LTE Cat 20 5G |
| WiFi standard | IEEE 802.11b/g/n/ac Wave 2 |
