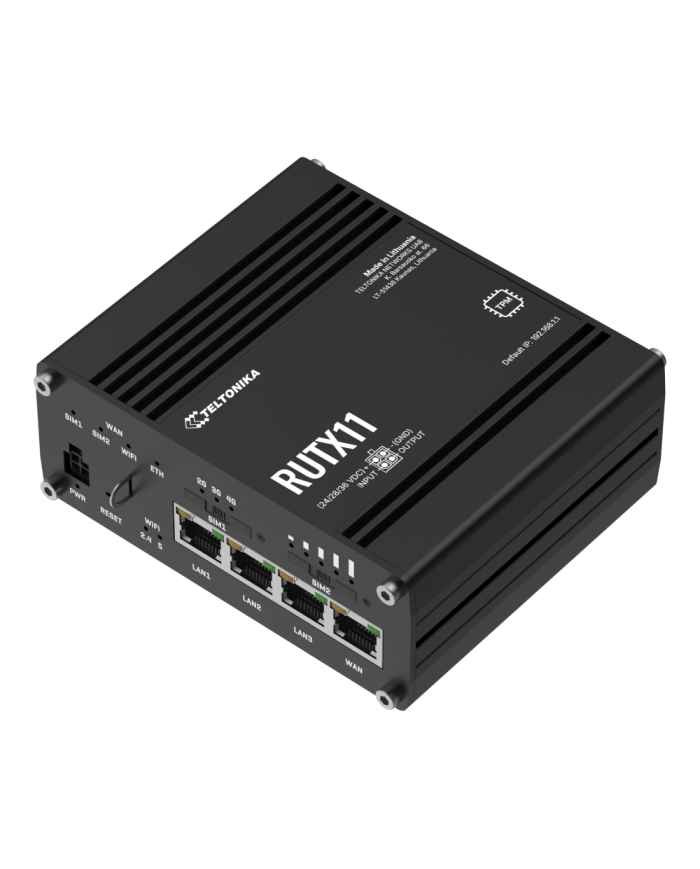

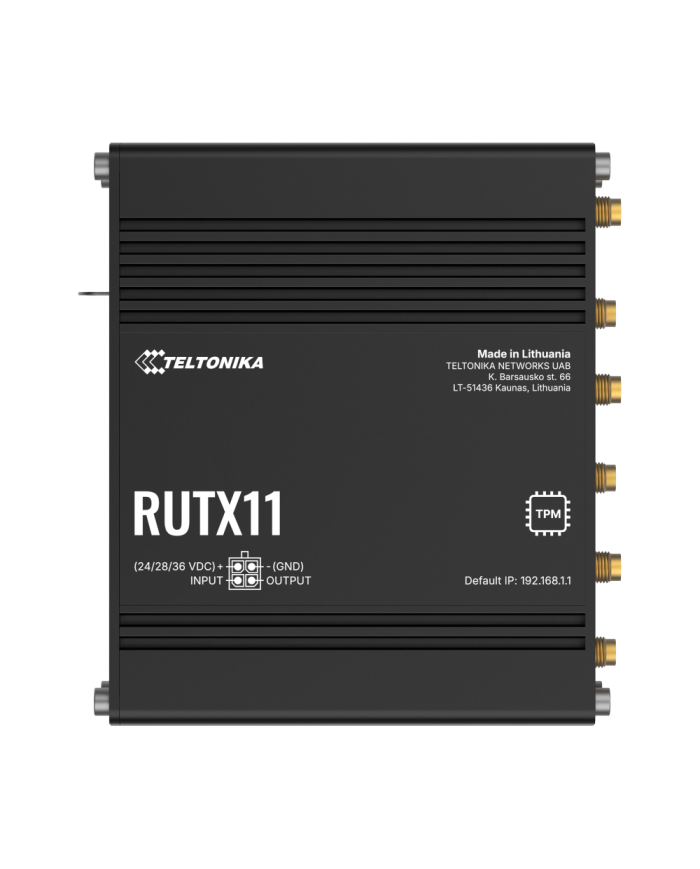

RUTX11 Router - Railway Version
Ask for price
Industrial Cellular Router
4G/LTE Cat 6 - Cellular speeds up to 300 Mbps with carrier aggregation
Dual SIM - With auto failover, backup WAN and other switching scenarios
Wi-Fi & BT - Wave-2 802.11ac dual band Wi-Fi and Bluetooth LE
Gigabit Ethernet - 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
Description
Product Details
This powerful 4G/LTE Cat 6 cellular router is designed for professional applications requiring reliable, fast connection and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC Wi-Fi, Bluetooth LE, and is EN 45545-2-certified, making it approved for use in passenger trains across Europe.
KEY FEATURES
Hardware
| Mobile | 4G/LTE (Cat 6), 3G |
| CPU | Qualcomm, 4 x ARM Cortex A7, 717 MHz |
| Storage | 256 MB Flash |
| Memory | 256 MB RAM |
| Powering option | 4-pin power socket, 9 - 50 VDC |
| SIM | 2 x External SIM holders (2FF) |

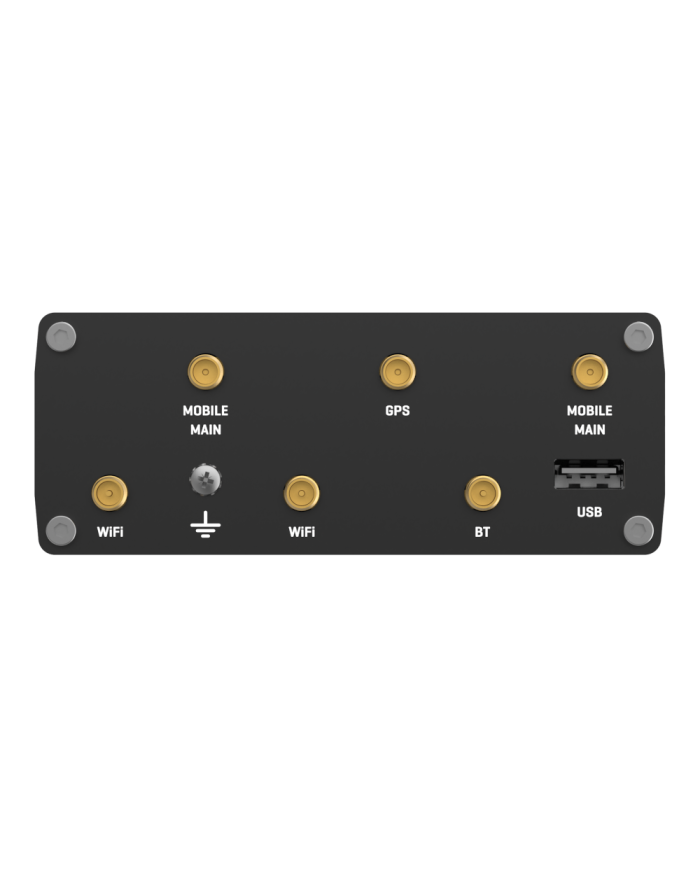

| Antenna connectors | 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS |
| Ethernet | 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
| Wi-Fi | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz, Access point (AP), Station (STA) |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Bluetooth | 4.0 (Low Energy) |
| Inputs/Outputs | On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
| Other | 1 x USB host |
| Status LEDs | 4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x Wi-Fi, 8 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option and grounding capability |
| Dimensions (W x H x D) | 115 x 44.2 x 95.1 mm |
| Weight | 456 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| Routing | Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Hotspot | External/Internal Radius, SMS OTP, MAC authentication, Walled Garden |
| NTP | NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator |
| GNSS | NMEA forwarding, AVL, Geofencing |
Standard package
- Router RUTX11
- 18 W PSU
- 2x Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (swivel, RP-SMA male)
- 1x GNSS antenna (adhesive, SMA male, 3 m cable)
- 1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 4 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Connectivity | 3G 4G/LTE Cat 6 |
| WiFi standard | IEEE 802.11b/g/n/ac Wave 2 |
