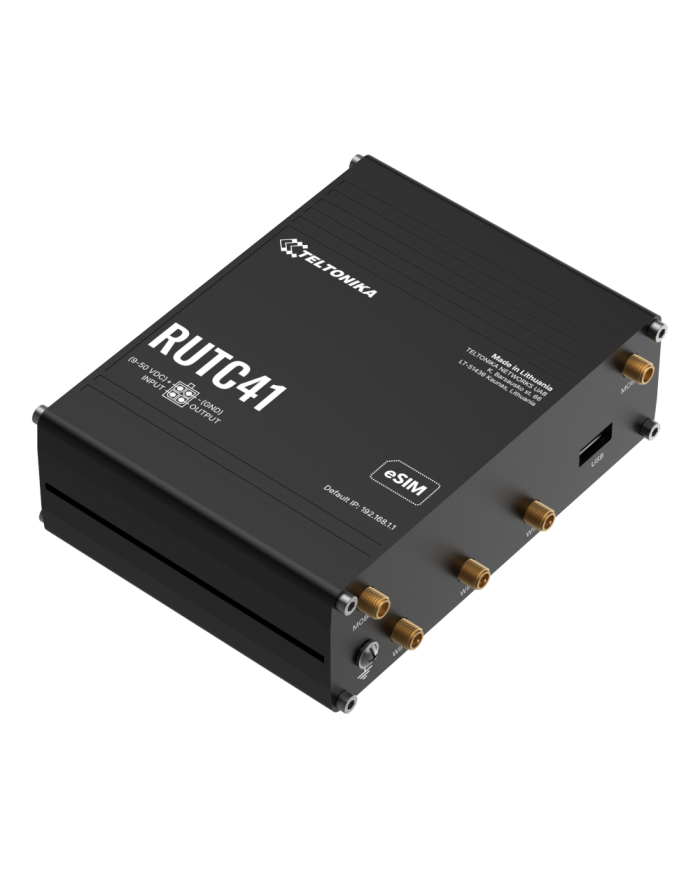

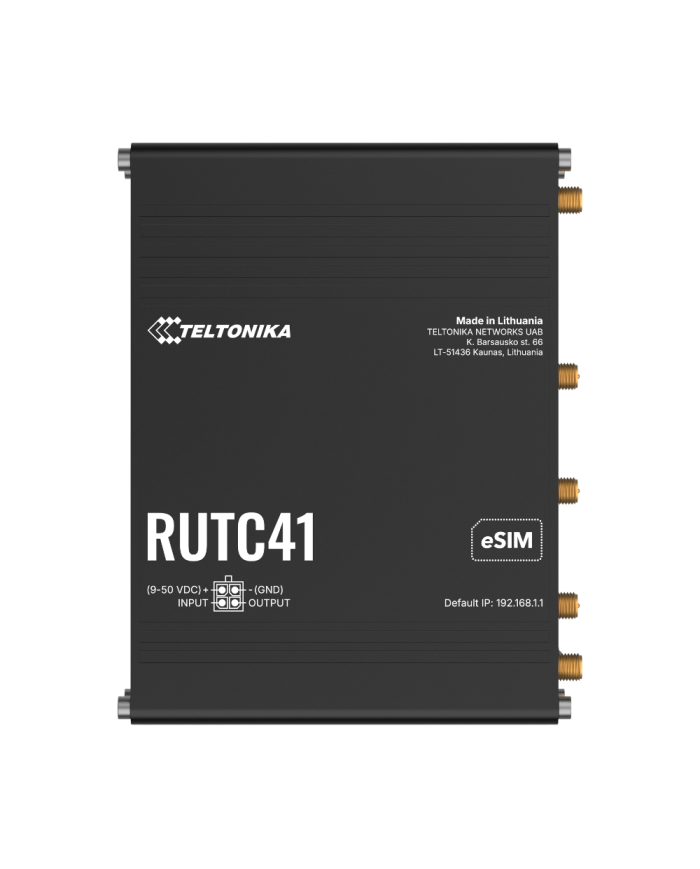

RUTC41 Router
Ask for price
4G/LTE Industrial Edge Router
4G/LTE Cat 4 - Enable smarter edge computing over 4G
Enhanced processing - Dual-core CPU, 1 GB RAM, and 8 GB flash memory
Docker support - Run Docker containers directly on the router to deploy custom solutions
Wi-Fi 6 - Dual-band multi-user MIMO for superior wireless performance
Description
Product Details
Bring powerful on-site computing to your industrial deployments with the RUTC41 edge router. This high-performance yet compact and versatile device combines 4G/LTE Cat 4 connectivity with advanced processing power and dual-band Wi-Fi 6. Built-in Docker support allows you to run containerized applications directly on the router. Equipped with 1 GB RAM, a dual-core 1.3 GHz CPU, and industrial-grade RutOS features, the RUTC41 delivers secure networking, cloud integration, and real-time data logger in one rugged device.
KEY FEATURES
Hardware
| Mobile | 4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps |
| CPU | Mediatek, 1.3 GHz, Dual-core ARM Cortex A53 |
| RAM | 1 GB, DDR4 |
| Storage | 16 MB serial NOR flash, 8 GB eMMC Flash |
| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |

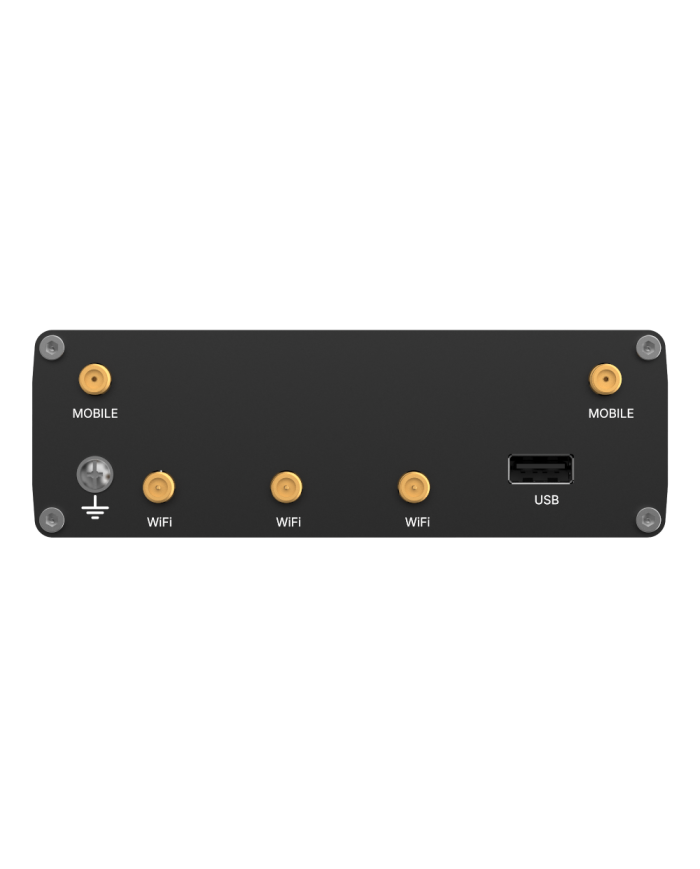

| Antenna connectors | 2 x SMA for Mobile, 3 x RP-SMA for Wi-Fi |

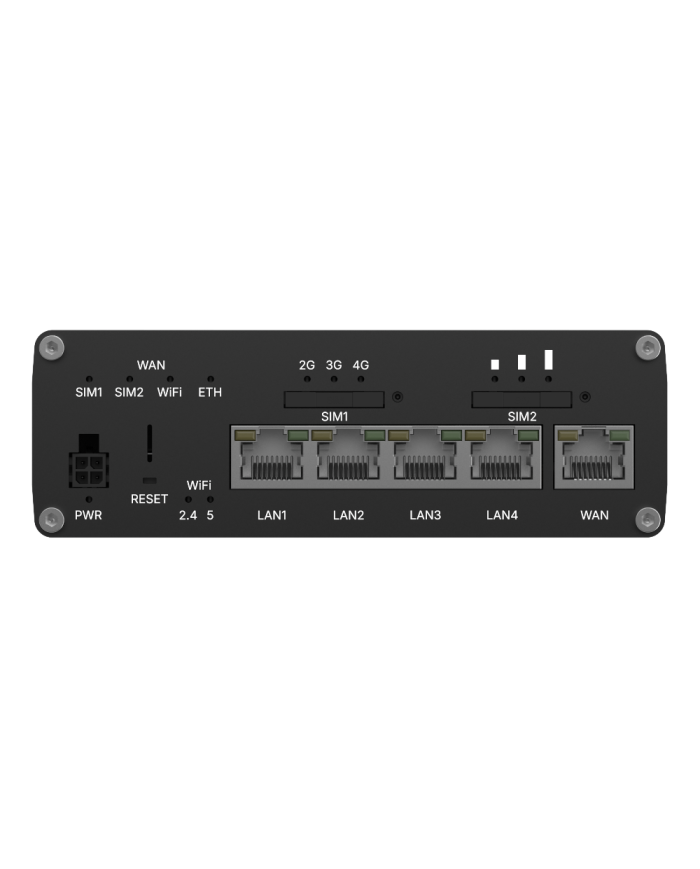

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN |
| Wi-Fi | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5 GHz, 576 Mbps on 2.4 GHz (Dual Band, MU-MIMO) |
| Inputs/Outputs | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high, 1 x Digital Output, Open collector output, max output 50 V, 300 mA |
| Grounding | 1 x Grounding screw |
| Status LEDs | 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4 GHz and 5 GHz Wi-Fi |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 130.4 x 42.6 x 104 mm |
| Weight | 480 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, USSD, Block/Allow list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, IGMP Proxy, Port Mirroring |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, TPM, Certificate Manager, 802.1x |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale, Netbird, EoIP, OpenConnect |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM, API |
Standard package
- RUTC41 Router
- 24 W PSU
- 2x Mobile antennas (swivel, SMA male)
- 3x Wi-Fi antennas (magnetic mount, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 5 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Connectivity | 2G 3G 4G/LTE Cat 4 |
| WiFi standard | IEEE 802.11b/g/n/ac/ax |
