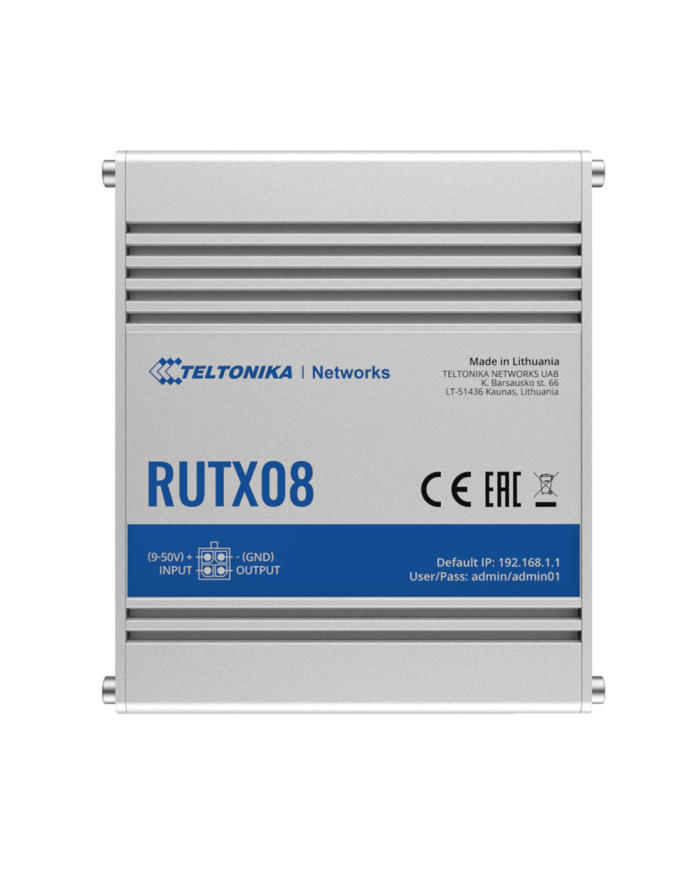

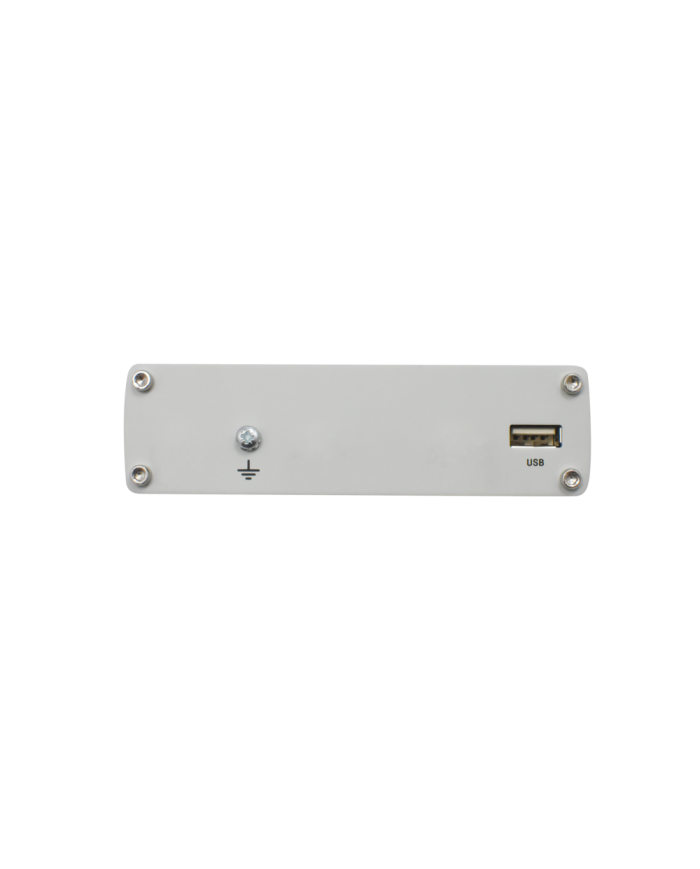

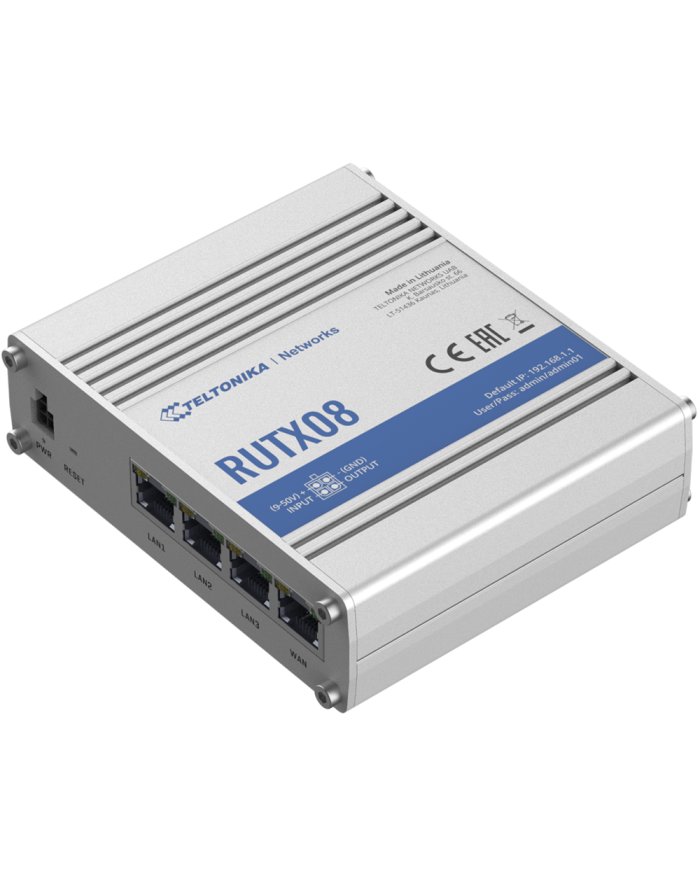

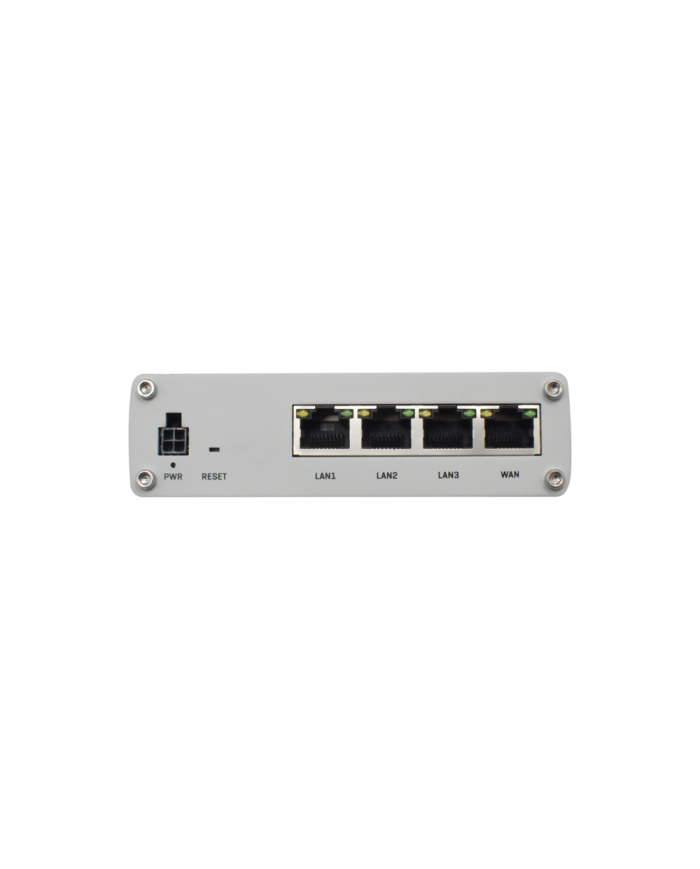

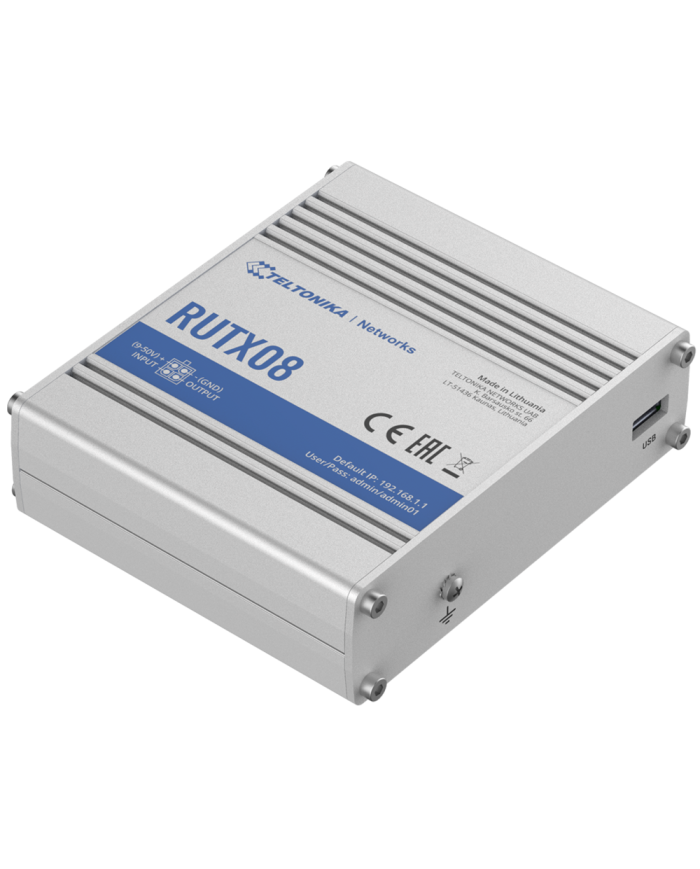

RUTX08 Router
Ask for price
Industrial Ethernet Router
Gigabit Ethernet: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
I/O and USB: digital Input / Output for remote monitoring and control and USB 2.0 interface
9-50 V: this router supports a wide range of power supply voltage for versatile integration
Protocols: multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
Security: firewall and numerous vpn services including OpenVPN, Ipsec, PPTP, L2TP i DMVPN
RMS: compatible with Teltonika Remote Management System
Description
Product Details
RUTX08 is a durable and powerful Ethernet-to-Ethernet industrial VPN router that runs on RutOS - an advanced OpenWRT based operating system. It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications. These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required. The device offers a wide range of supported power supply voltages (9-50 V) and operating temperatures (-40°C ~ +75°C).
Standard package contains
- RUTX08 Router
- 18 W PSU
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 4 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Operating voltage | 9-50 VDC |
| Maximum power consumption | 6 W |
| Dimensions | 115 x 32,2 x 95,2 mm |
| Weight | 345 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C ~ +75°C |
| IP degree of protection | IP30 |
| USB ports | 1 |
| Digital inputs | 1 |
| Digital outputs | 1 |
| Operating system | RutOS (OpenWrt based Linux OS) |
| VPN | IPsec OpenVPN WireGuard |
