XSLAN-1400 SHDSL Extender/Modem

The family of SHDSL (XSLAN) and SPE (XELAN) switches enables the connection of remote Ethernet networks using a simple copper pair in order to reach data rate up to 15 Mbps.

A large range of Ethernet extenders is offered: point-to-point, multipoint up to 12 lines concentrator.

SHDSL / SPE Switch

• From 1 to 12 WAN ports
• From 1 to 6 Ethernet ports
• Technology: SHDSL or SPE
• Up to 13 km
• Up to 15 Mb/s
• IP Router
• SNMP, QoS Diffserv, VLAN
• Bypass feature
• Failsafe ring (RSTP or proprietary protocol)
• Auto-negotiation
• Railway compatible
• AES256 encryption (MACSec)
• Authentication 802.1X

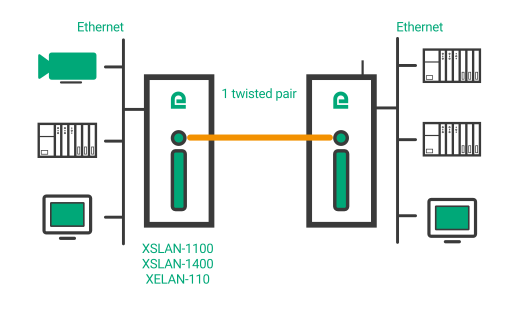

A “PLUG AND PLAY” MODEL
Activation of a point to point connection (XSLAN-1100 or XELAN-110) or web page (XSLAN-1400).

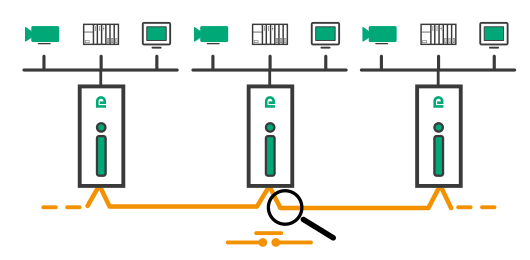

DAISY CHAIN NETWORK
The XSLAN-2400 or XELAN-210 can be used to build a daisy chain topology via a copper pair.

“The Bypass”
The “By-Pass” feature is used to close the line (electro-mechanical relay) when the XSLAN or XELAN is switched off. The daisy chain is thus not cut.

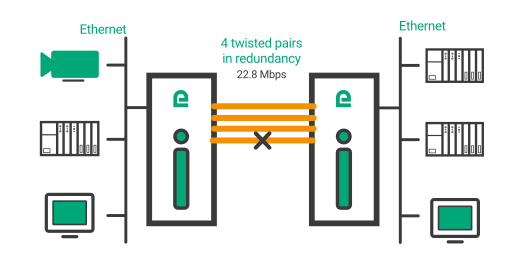

SHDSL LINE AGGREGATION TO INCREASE DATA RATE AND SECURITY
XSLAN-2xxx and XSLAN-4200 can aggregate SHDSL lines to increase the data rate or to offer a line backup.

XELAN’s strengths

• Low consumption
• Plug & Play
• Quick connection
• Economically optimized

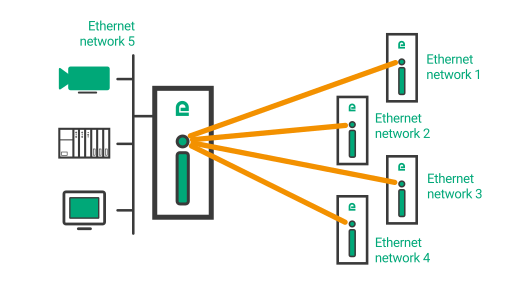

SHDSL LINE CONCENTRATOR

Models: XELAN 210, XSLAN-2400, XSLAN-4200 and XSRACK-1260.

Auto-negotiation
This configuration mode can be used to quickly plug the XSLAN or XELAN without configuration.

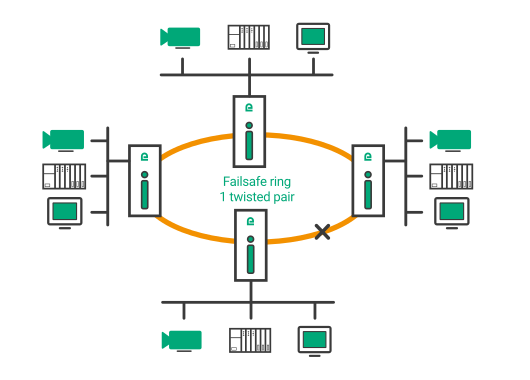

FAILSAFE RING
XSLAN is working with RSTP or Etic Telecom protocol in order to build any type of topology with redundancy.

Loop VPN for secured ring (XSLAN only).
When the SHDSL network forms a daisy chain and when it is not possible to form a secured ring, the “loop VPN” function allows a network redundancy if an Internet or a private (MPLS) connection is available at each end of the SHDSL network.

SELECTION GUIDE

GENERAL CHARACTERISTICS

Dimensions

• XSLAN-1100, XELAN-110 and XELAN-210: 120x37x88mm (h,l,d)
• XSRACK: 44x435x290 mm (h,l,d)
• Others products: 137x51x142 mm (h,l,d)

Weight

• XELAN and XSLAN-1100: 500g
• XSRACK: 3500g
• Other products: 750g

Power

• XELAN-110, XELAN-210, XSLAN-1100: 10-30 VDC (nominal: 12-24 VDC). Optional remote-powered product (contact us).
• Others XSLAN: 10-60 VDC (nominal : 12-48 VDC)
• Phoenix type 2-point connector (removable)
• Isolation: 1500 V

Consumption

• XSLAN-1100: <2 W
• XSLAN-1XXX: 3 W
• XSLAN-2XXX: 4 W
• XSLAN-4XXX: 6 W
• XSLANBP4200: 7 W
• XELAN-110: 0,5 W
• XELAN-110 PW: 3 W
• XELAN-210: 0,7 W
• XSRACK: 27 W

Temperature

• XSRACK: 0°C / + 50°C
• Other products: -40°C / + 70°C (Humidity 5 to 95 %)

EMC Immunity (EN 61000-6-2)

• EN61000-4-2: Electrostatic discharge (ESD)
• EN61000-4-3: RF radiated
• EN61000-4-4: EFT/Burst
• EN61000-4-5: Surge
• EN61000-4-6: RF Conducted Emission (EN 61000-6-4)
• EN55032: Radiated and conducted emission

Electrical Safety

• IEC/EN 62368-1

Hazardous substances

• Directive 2011/65UE (RoHS)
• REACH

Casing - Metallic case with Rail DIN or RACK fixation

• XELAN and XSLAN-1100: IP31
• Other products: IP21

SHDSL TRANSMISSION

Cable

• 1 copper pair (shielded and diameter between 0.4 mm and 1 mm is recommended)

Connector

• Phoenix type 2-point connector (removable)

Isolation

• 1500 V

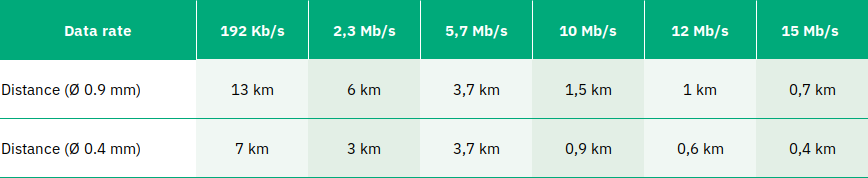

DISTANCE AND DATA RATE IN SHDSL
(Estimated values without noise)

DISTANCE AND DATA RATE IN SPE
(Estimated values without noise)

Data rate & distance

• 10 Mbit/s full duplex up to 2 km. Greater range with the addition of repeaters (contact us).

ETHERNET FEATURES (LEVEL 2)

Ethernet

• RJ45
• Auto: 10/100 full & half MDI/MDI-X

SHDSL Ethernet

• 802.3ah: 2BaseTL

SPE Ethernet

• 10 Base T1L

Switch

• Store and forward

VLAN

• VLAN via port IEEE 802.lQ (XSLAN only)

MAC Filtering

• Destination MAC address filtering (XSLAN only)

Redundant network

• RSTP Protocol and Failsafe Ring (XSLAN only)

IP FEATURES (LEVEL 3 / XSLAN ONLY)

IP Address

• IPv4 and IPv6

SNMP

• SNMP V3 RFC1213 MIB II
• HDSL2-SHDSL-LINE-MIB
• HOST-RESOURCES-MIB
• IF-MIB IP-MIB
• BRIDGE-MIB

QoS

• DiffServ - 5 priority levels management depending on traffic

IP Router

• IP routing between LAN interface and SHDSL interface
• 25 static routes
• RIP V1 and V2
• Address translation

SERIAL GATEWAY

Connectors

• RS232: RJ45
• RS485: removable 2-point connector

Data rate

• 1200 to 115 200 b/s

Gateway

• Raw TCP client & server
• UDP (unicast or towards broadcast list)
• Multicast, Telnet
• Modbus Master & Slave, Unitelway Slave

SYSTEM AND CONFIGURATION (XSLAN ONLY)

XSLAN Configuration

• Web server (configuration and diagnostic)

Backup

• Configuration file backup
• Editable text file

Date and hour

• NTP client and server

Upgrade firmware

• Locally or via the SHDSL link

Diagnostic

• LOG, Syslog, line quality monitoring

Alarms

• Digital Input
• Digital Output (SHDSL default)
