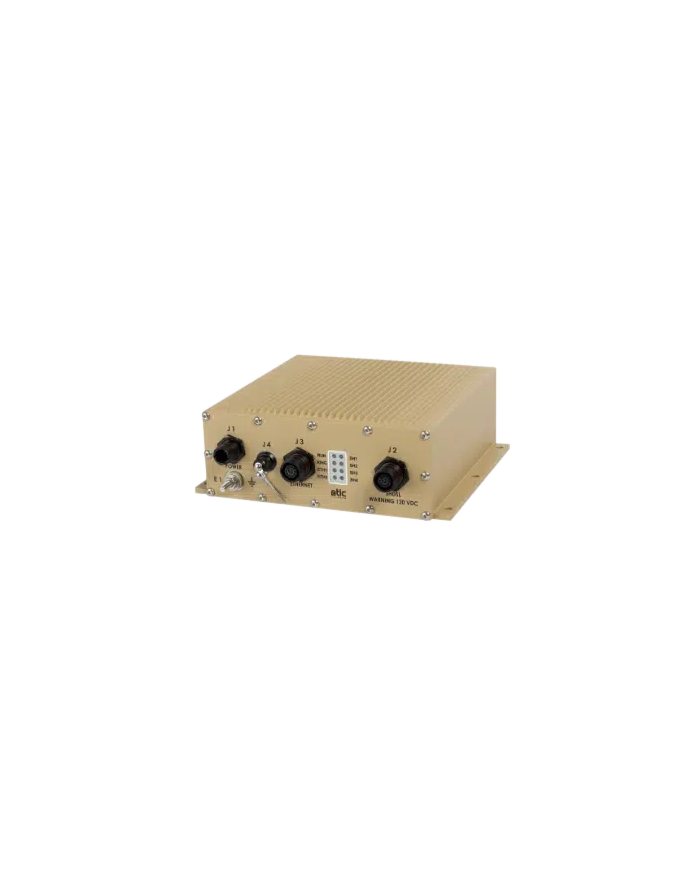

XSMIL-BP4200IB SHDSL Tactical Extender/Modem

Etic Telecom markets a range of tactical SHDSL switches allowing the IP interconnection of a fleet of equipment linked together by D10 cable.
The box version (XSMIL-BP4200IB) is installed in vehicles while the case version (XSMIL-FD4200) is installed in the field in order to allow long distance connections by repeating the signal.

Tested with standards: MIL-STD 810 and MIL-STD 461

The range of XSMIL Ethernet Extenders (Switch SHDSL and Switch-Repeater SHDSL) allows the simple and safe interconnection of a fleet of tactical equipment without using radio communication means.
Thanks to the SHDSL connectivity of XSMILs, a tactical IP network can be extended over long distances using a conventional field cable (D10 cable for example).
All equipment interconnected by a product from the XSMIL familiy is in the same LAN network.

Main use cases:

1. Vehicle in front
2. Distant vehicle in the outpost (SHDSL case repeating the signal) => the case is autonomous (internal battery) or powered by the D10 transmission cable
3. Portable Command Post allowing the soldier to communicate via phone, tablet or PC
4. Connection of fleet of vehicles to the camp
5. Network looping allowing communication to be maintained even when the cable is cut

Data transmission distance

• 0,5 km – 8 Mbps
• 4,0 km – 2 Mbps
