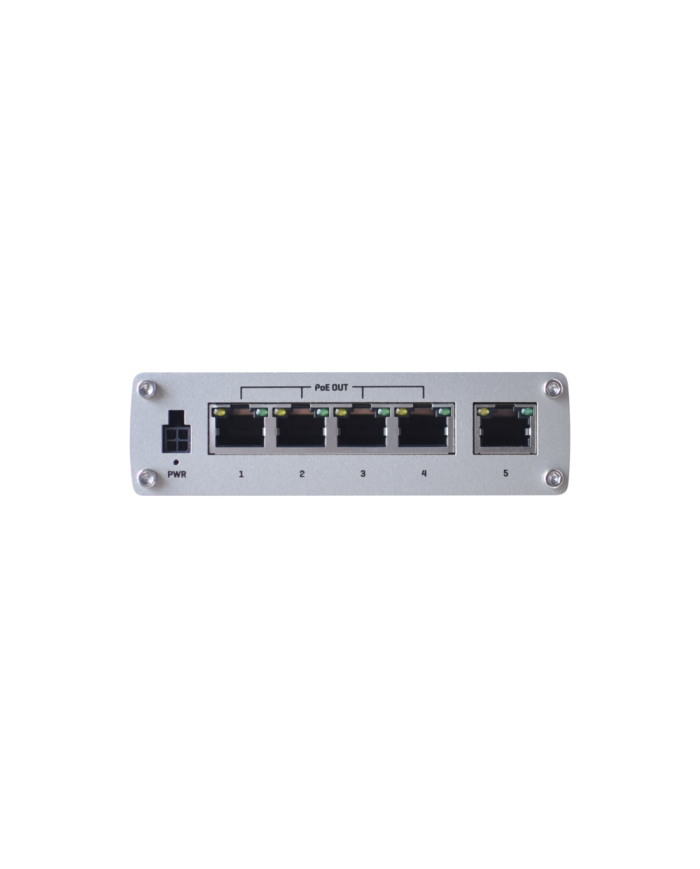

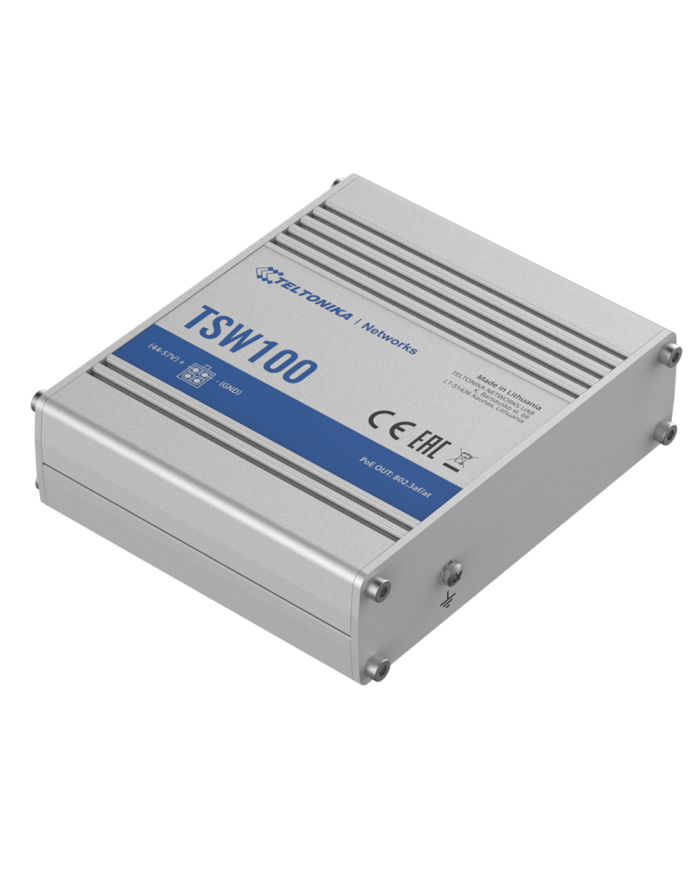

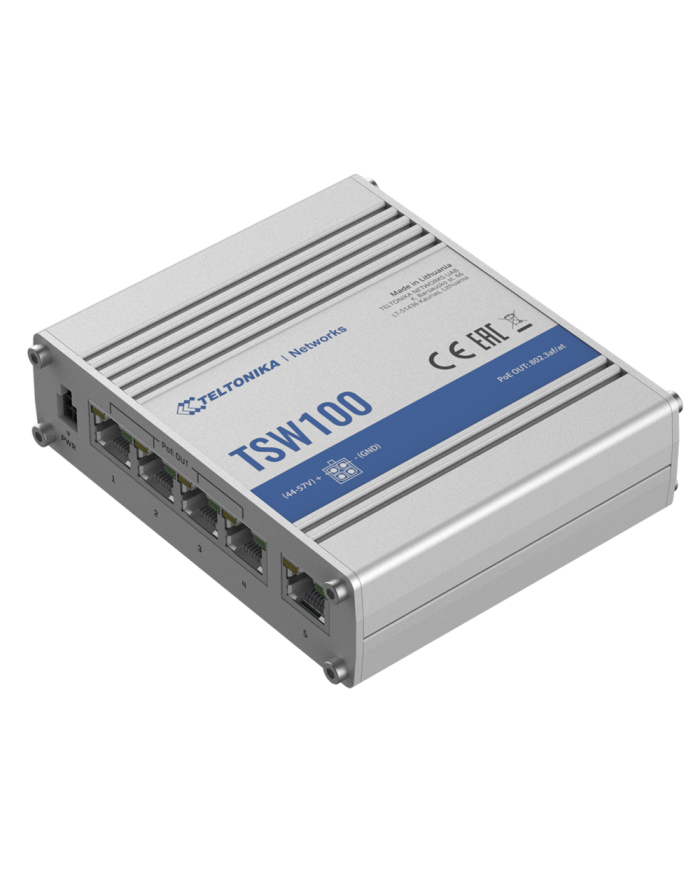

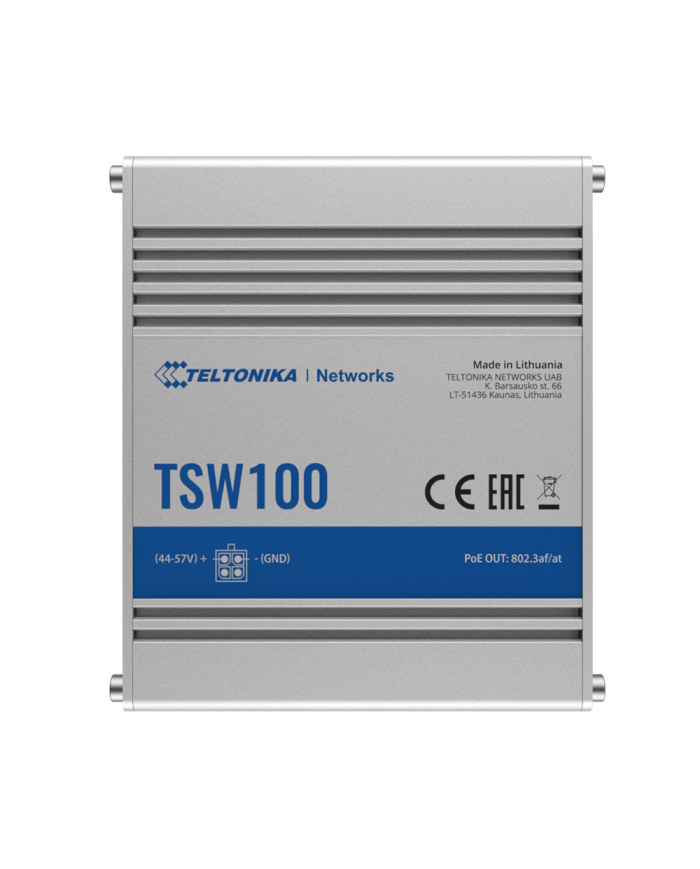

TSW100 Switch
Ask for price
Industrial Unmanaged POE+ Switch
POE: 4 x PoE ports with 802.3af and 802.3at support
Durability: Rugged aluminium housing
Mounting: DIN rail and surface mounting options
Power budget: total power budget at PSE up to 120W
Ethernet: 5 x Gigabit Ethernet with speeds up to 1000 Mbps
Plug-N-Play: no additional configuration needed
Description
Product Details
TSW100 is the first industrial unmanaged switch from Teltonika. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply. The device offers a wide range of operating temperatures (-40°C ~ +75°C).
Standard package contains
- TSW100 Switch
- 65W PSU
- QSG (Quick Start Guide)
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 5 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| POE ports | 4 |
| Operating voltage | 7-57 VDC 44-57 VDC PoE |
| Maximum power consumption | 129 W |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 340 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C - 75°C |
