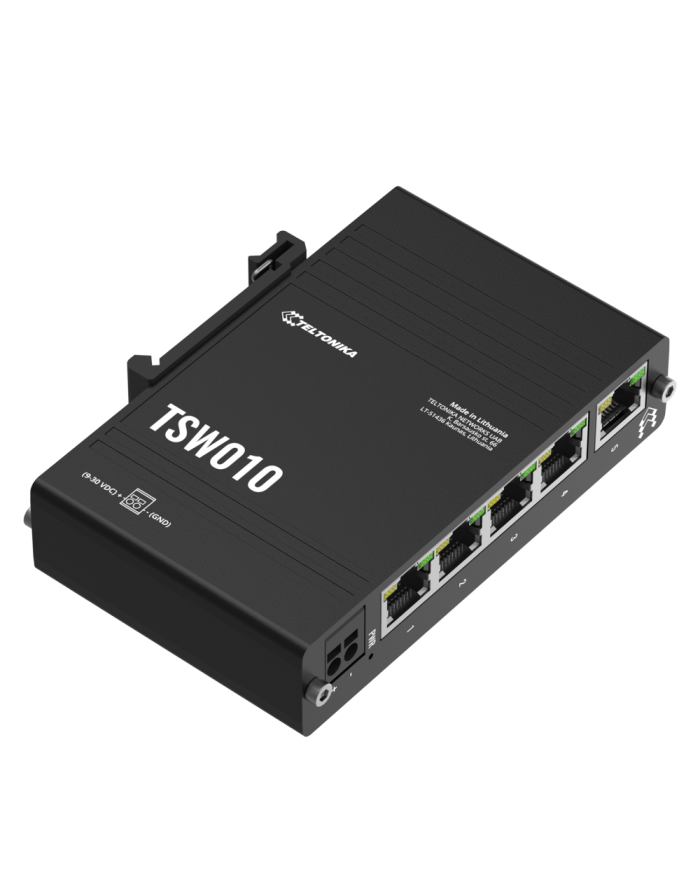

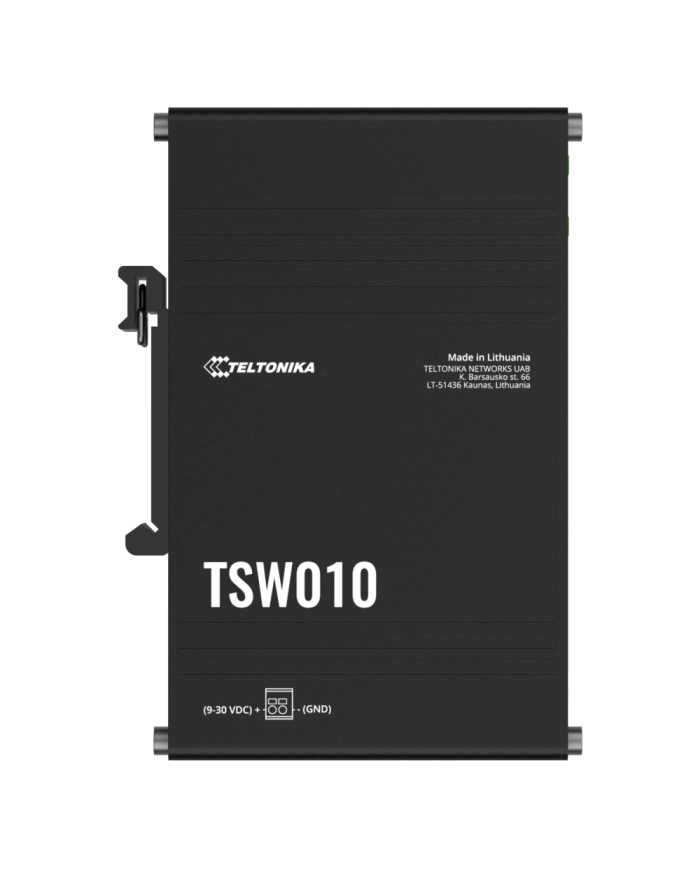

TSW010 Switch
Ask for price
DIN Rail Unmanaged Ethernet Switch
Plug and Play - No additional configuration needed
Mounting - Integrated DIN rail bracket and surface mounting options
Industrial design - Anodized aluminum housing and panels
Ethernet - 5 x Ethernet ports with speeds of up to 100 Mbps
Description
Product Details
TSW010 Ethernet unmanaged switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
KEY FEATURES
Hardware
| Power supply | 2-pin industrial DC power socket, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 0.9 W |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |

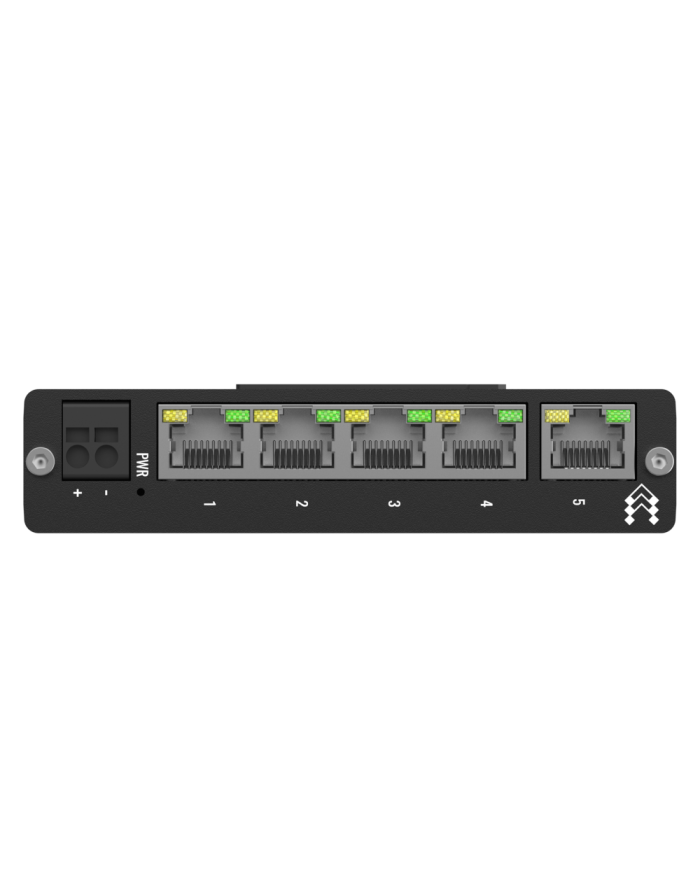

| Ethernet | 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |

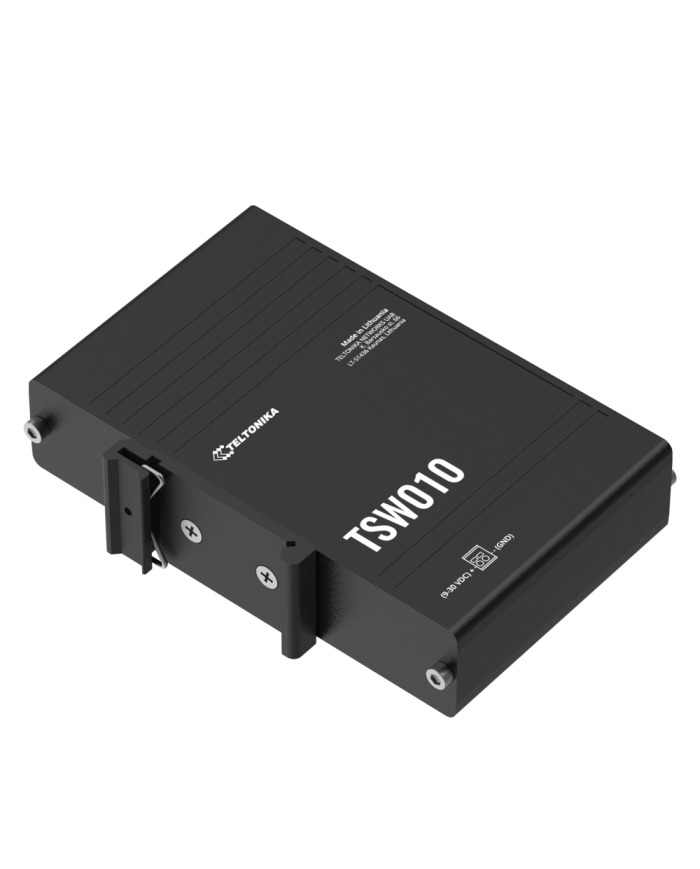

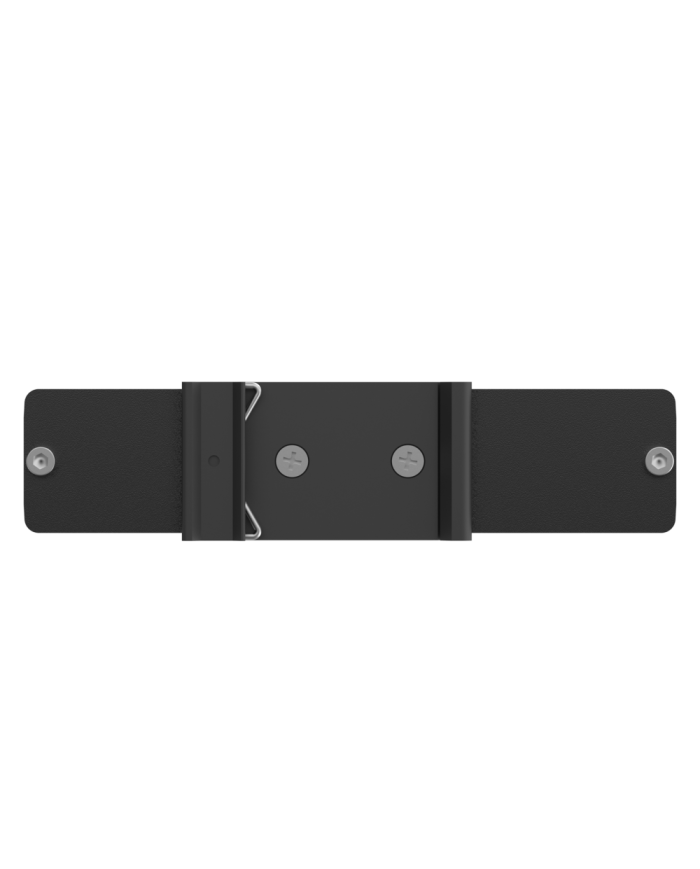

| Installation | Integrated DIN rail bracket, flat surface placement |
Performance specifications
| Bandwidth (Non-blocking) | 1 Gbps |
| MAC address table size | 2K entries |
| Jumbo frame support | 2048 bytes |
| Switch Processing Scheme | Store-and-Forward |
Standard package
- TSW010 Switch
- QSG (Quick Start Guide)
- Packaging box
