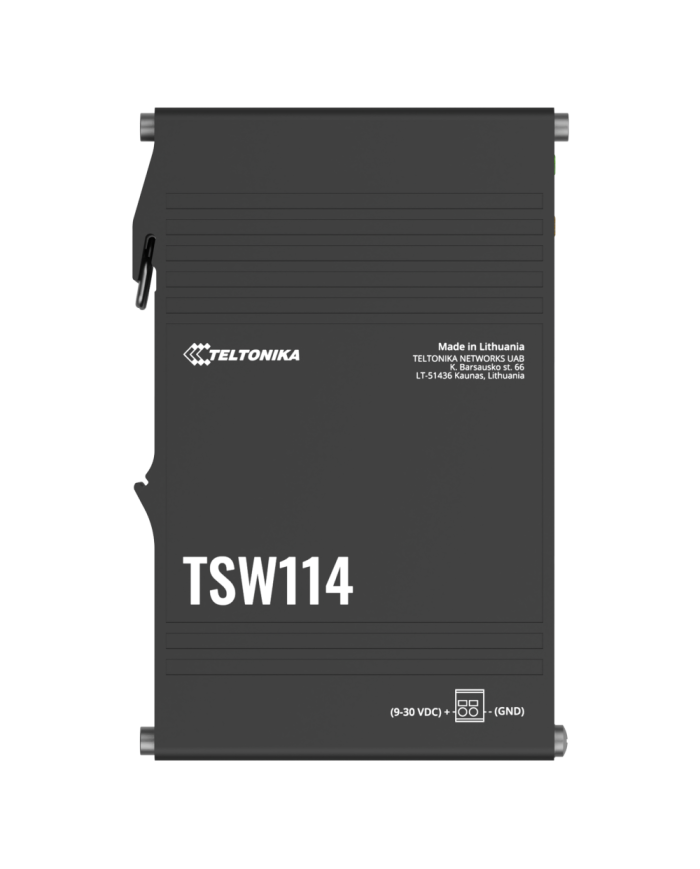

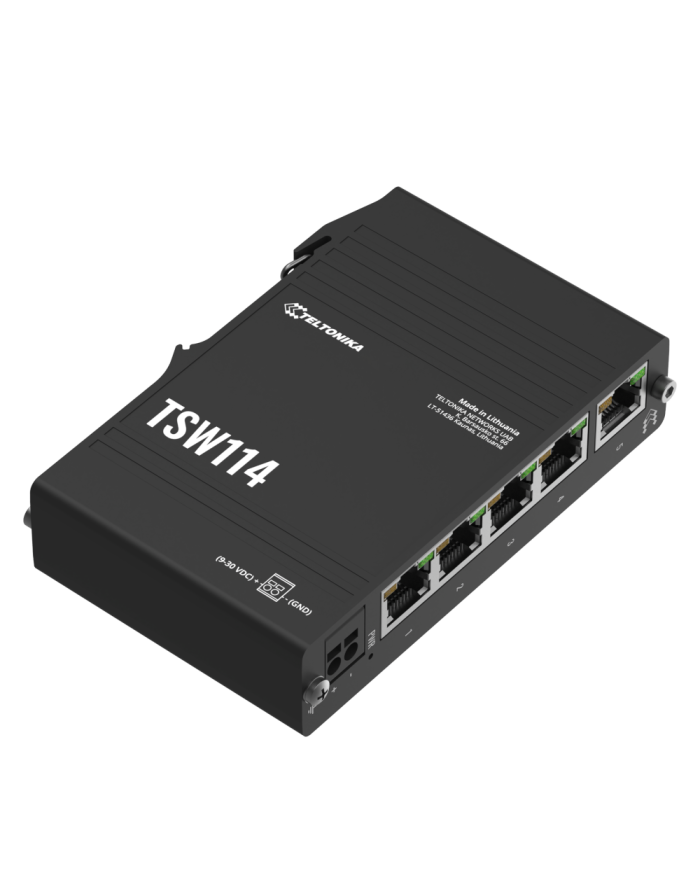

TSW114 Switch
Ask for price
Industrial Unmanaged Gigabit DIN Rail Ethernet Switch

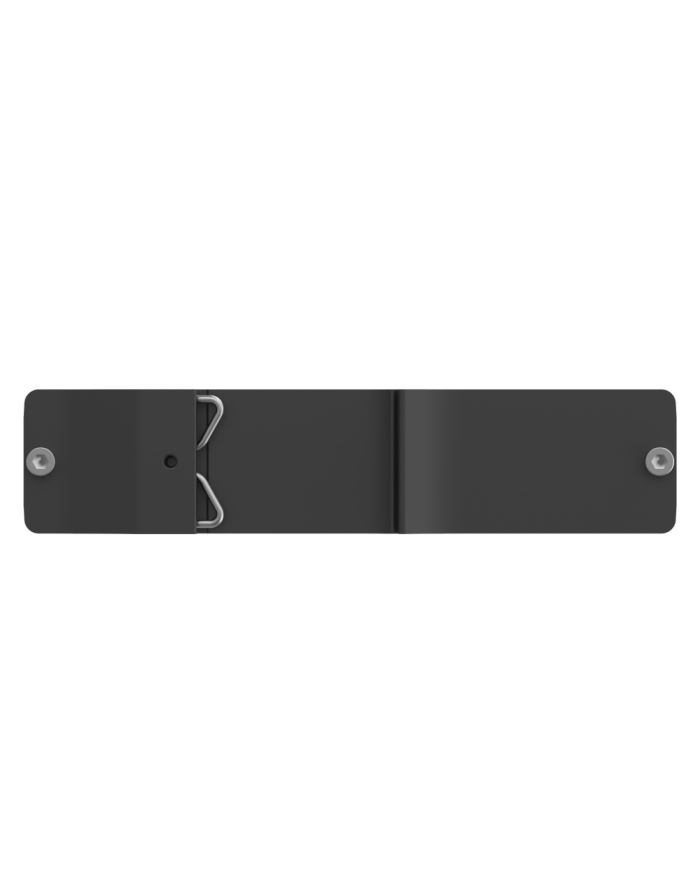

Easy mounting - Integrated DIN rail bracket and front-facing ports
Gigabit Ethernet - 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
Compact & durable - Rugged anodized aluminum housing that fits in your pocket
Plug and Play - No additional configuration needed
Description
Product Details
TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
KEY FEATURES
Hardware
| Power supply | 2-pin industrial DC power socket, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 2.3 W |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |

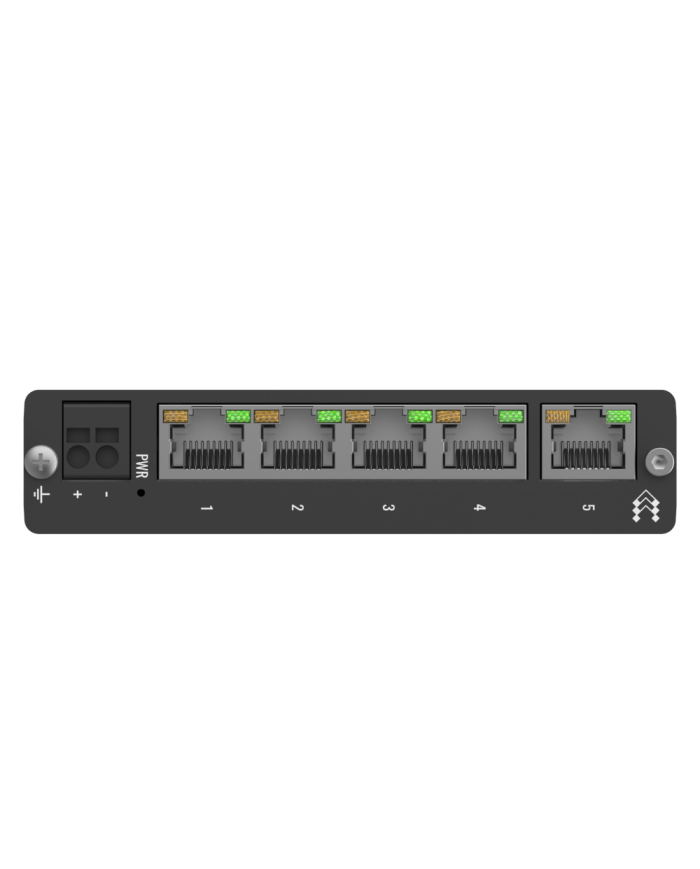

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |
| Installation | Integrated DIN rail bracket, flat surface placement |
Performance specifications
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
Standard package
- TSW114 Switch
- QSG (Quick Start Guide)
- Packaging box
