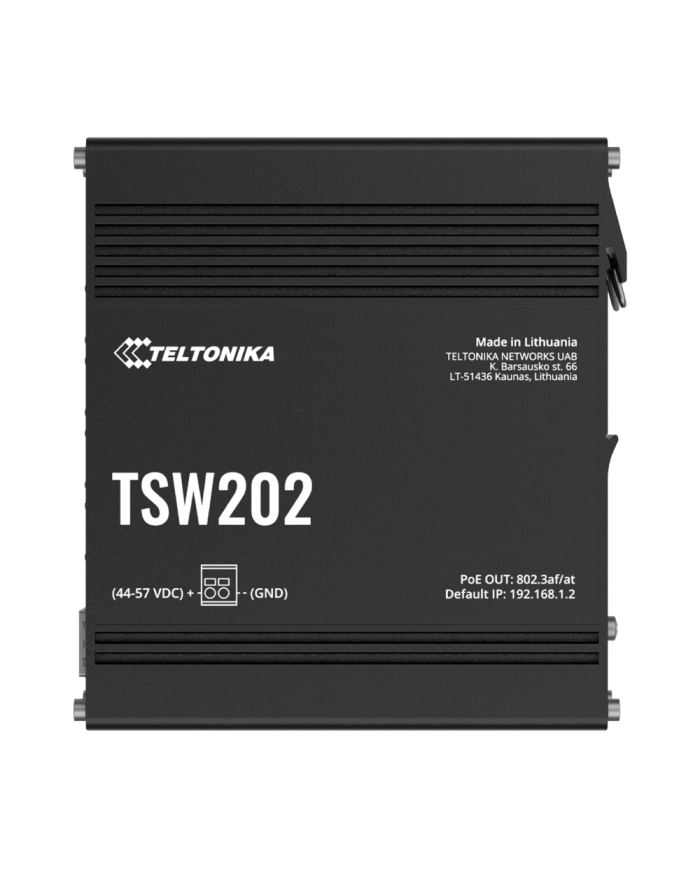

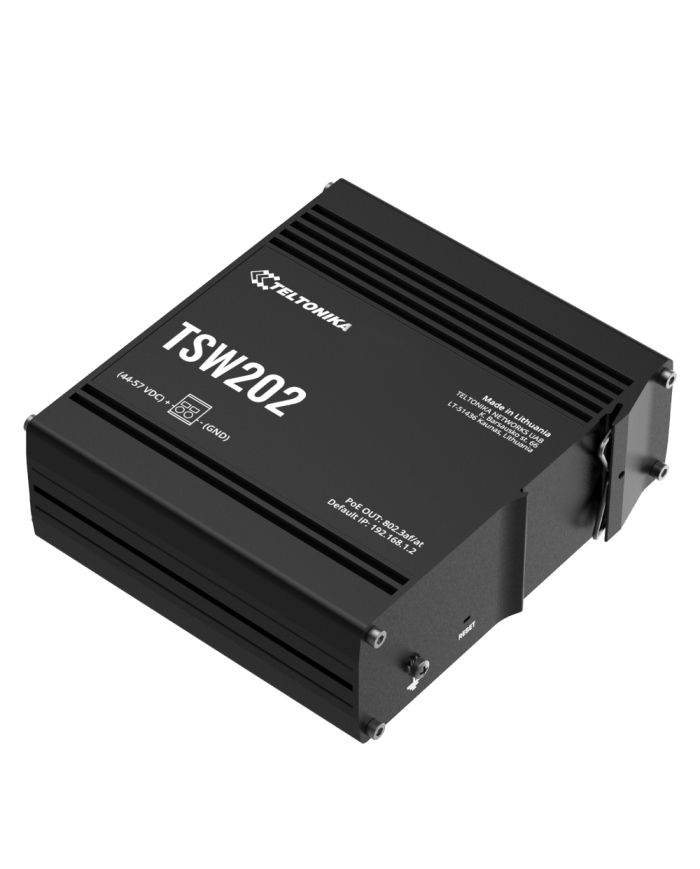

TSW202 Switch
Ask for price
Industrial Managed PoE+ Ethernet Switch
Managed switch - L2 with additional L3 features for enhanced management and control
PoE+ & SFP - 8 x port PoE+ switch with 2 x SFP ports for fiber optic communication
Profinet & more - Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP
TSWOS - Teltonika Networks OS for switches, intuitively designed for infinite configurations
Description
Product Details
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
KEY FEATURES
Hardware
| RAM | 128MB, DDR3 |
| Flash storage | 16MB serial flash |
| Powering options | 2-pin industrial DC power socket, 7 - 57 VDC |
| Input voltage range for PoE | 44 - 57 VDC |
| Power consumption | Idle: < 3 W / Max: 8 W / PoE Max: 240 W |
| PoE standart | 802.3af and 802.3at (Max 30 W per port, total power budget 248 W) |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |

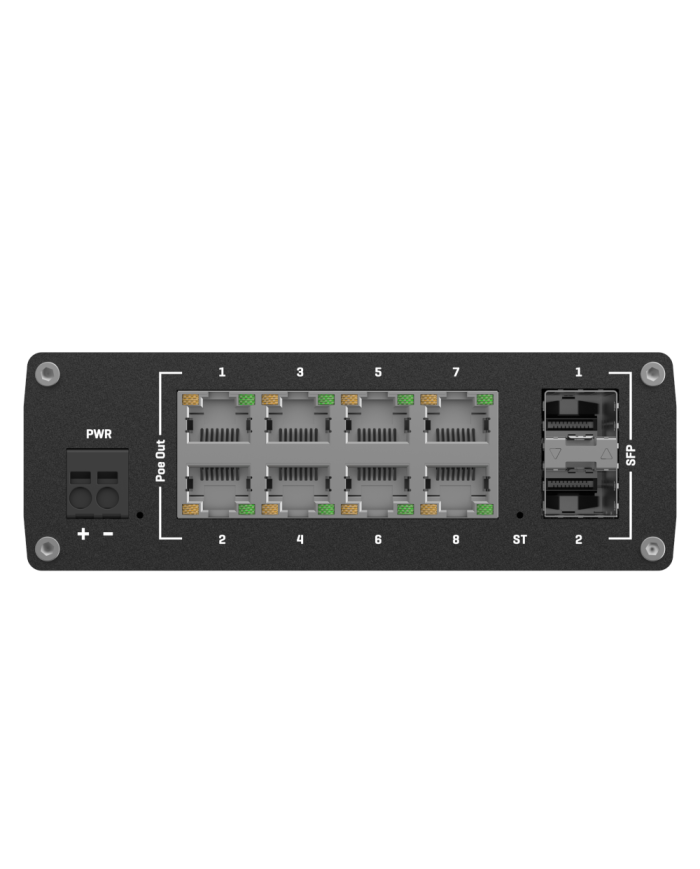

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps, PoE ports: Port 1 - 8 |
| SFP | 2 x SFP ports |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 610 g |

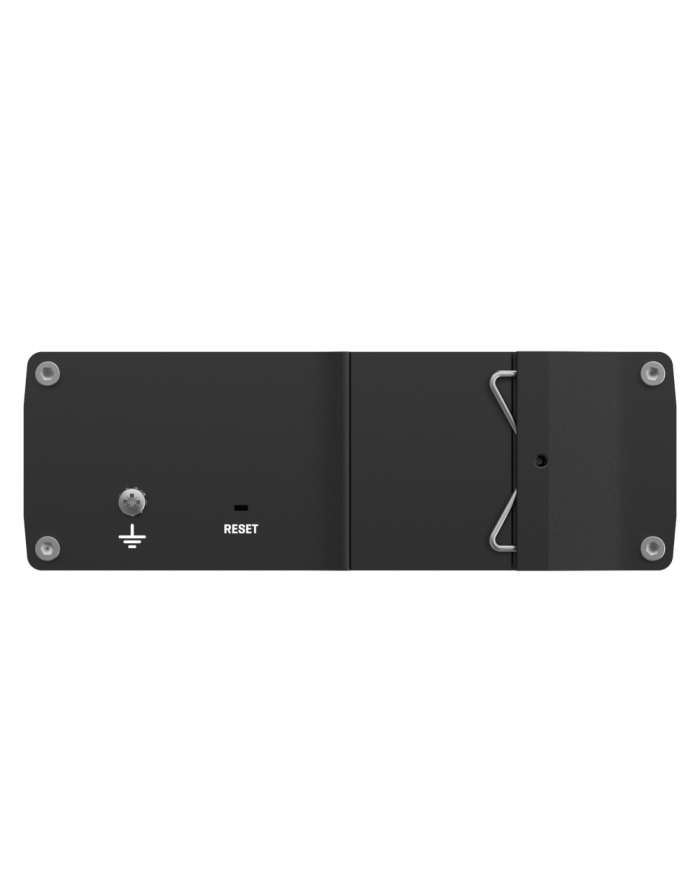

| Mounting options | Integrated DIN rail bracket, flat surface placement |
Performance specifications
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
Services
| Supported services | EtherNet/IP, PROFINET (class B), SNMP V2, V3, LLDP, 802.1p, 802.1x, 802.1Q VLAN |
Network
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
QOS
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
Diagnostics
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| Ping reboot | Capability to restart PoE in a specific port |
Standard package
- TSW202 Switch
- QSG (Quick Start Guide)
- Packaging box
