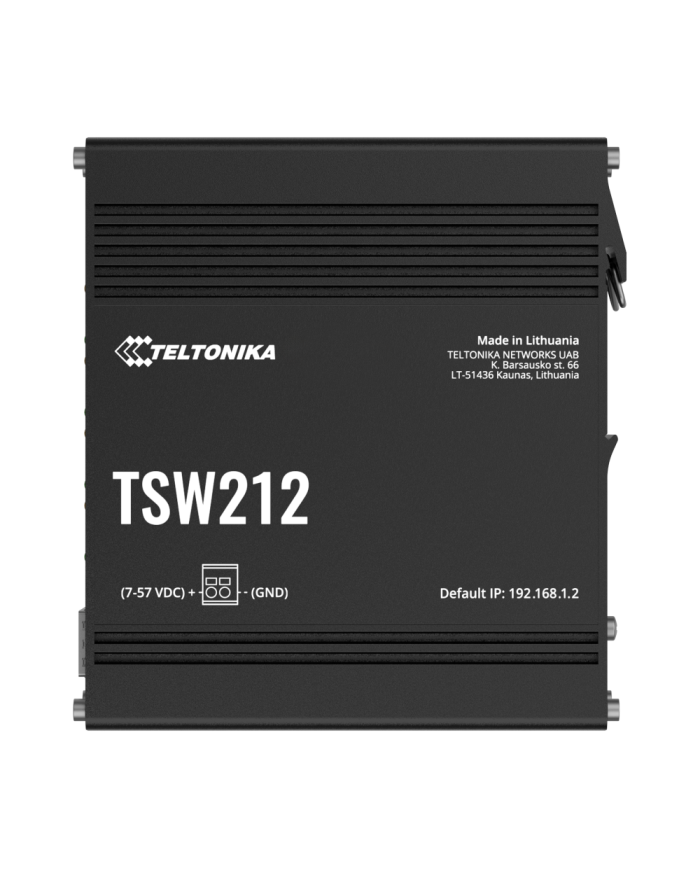

TSW212 Switch
Ask for price
Industrial Managed Ethernet Switch
Managed switch - L2 with additional L3 features for advanced management capabilities
Profinet & more - Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP

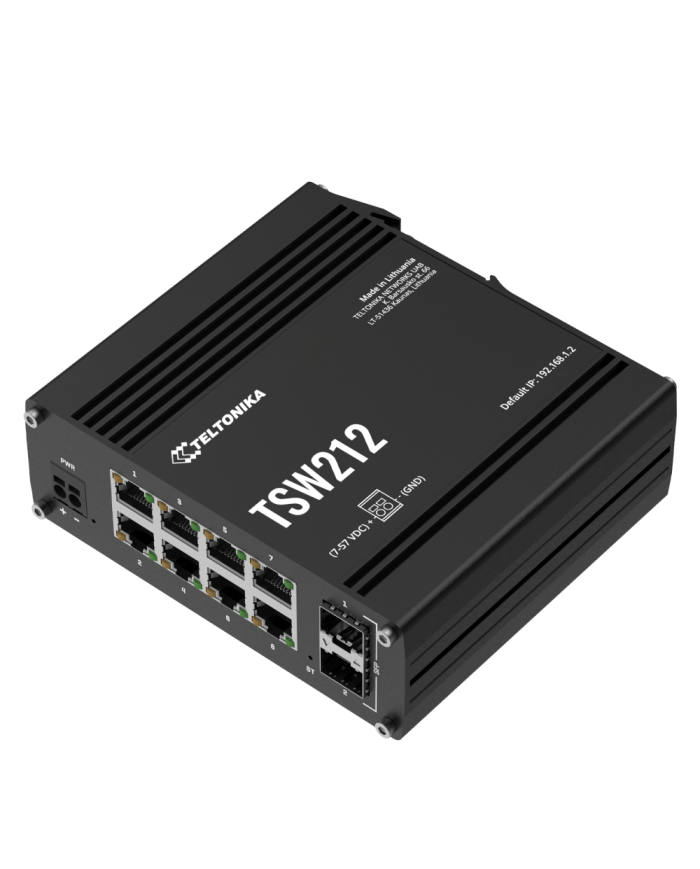

Ethernet & SFP - 8 x Gigabit Ethernet ports and 2 x SFP ports for fiber optic communication
TSWOS - Teltonika Networks OS for switches, intuitively designed for infinite configurations
Description
Product Details
TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
KEY FEATURES
Hardware
| RAM | 128MB, DDR3 |
| Flash storage | 16MB serial flash |
| Powering options | 2-pin industrial DC power socket, 7 - 57 VDC |
| Power consumption | Idle: < 2.5 W / Max: 6 W |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| SFP | 2 x SFP ports |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 615 g |

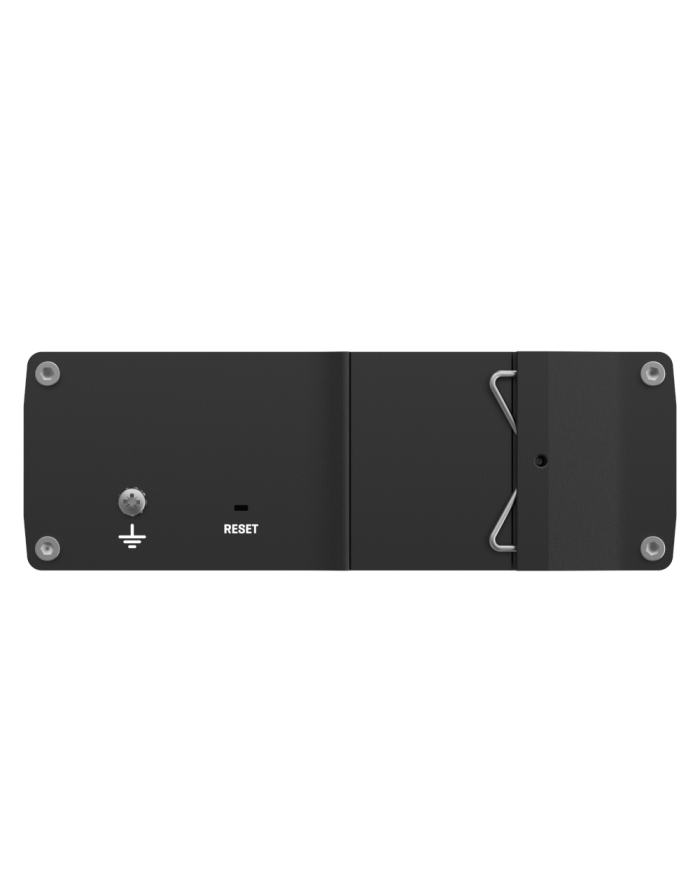

| Mounting options | Integrated DIN rail bracket, flat surface placement |
Performance specifications
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
Services
| Supported services | EtherNet/IP, PROFINET (class B), SNMP V2, V3, LLDP, 802.1p, 802.1x, 802.1Q VLAN |
Network
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
QOS
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
Diagnostics
| Tools | Cable diagnostic, ping, traceroute, nslookup |
Standard package
- TSW212 Switch
- QSG (Quick Start Guide)
- Packaging box
