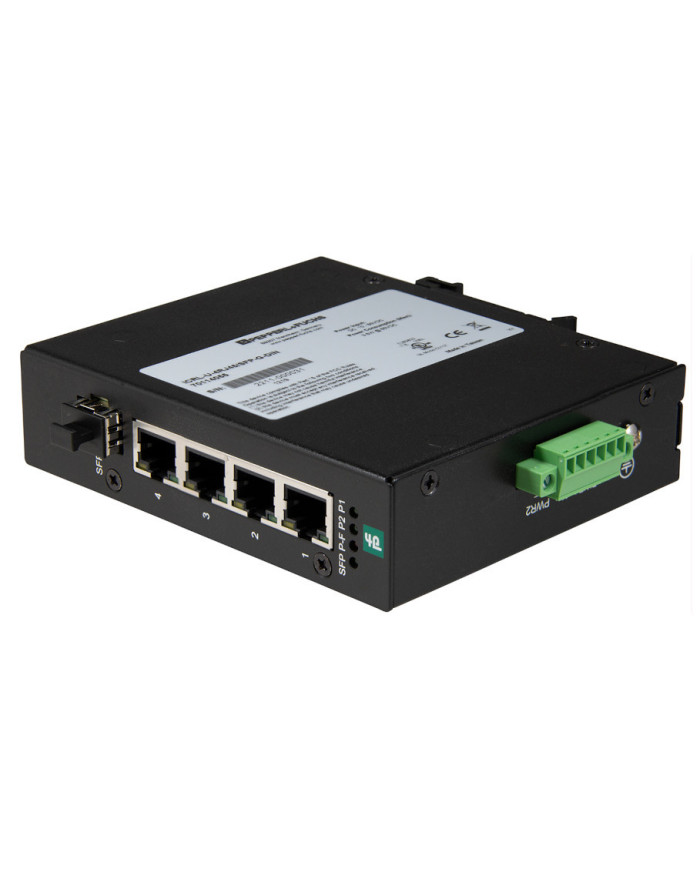

ICRL-U-4RJ45/SFP-G-DIN Switch
Ask for price
Ethernet unmanaged switch with 4 RJ45 gigabit ports, one gigabit SFP slot and fault alarm
- Four - Gigabit RJ45 ports and one Gigabit SFP slot
- Rugged housing for use in harsh environments
- 9K bytes jumbo frame for large file transfers
- Power event alarm
- Wide power input 10-60 V DC
- Suitable for PROFINET IO and EtherNet/IP
Description
Product Details
The ICRL-U-4RJ45/SFP-G-DIN is a compact unmanaged industrial switch with four 10/100/1000BASE-T(X) and one 1000BASE-F(X) ports, which ensures high switching performance and easy installation. Along with its high switching performance, it supports multiple internal performance features, such as 9K bytes Jumbo Frame, Flow Control, it ensures quality traffic transmission.
The switch is designed for operating reliably under harsh environments, it supports one alarm relay to indicate fault conditions when a power failure occurs, users can quickly handle the emergency and shorten the failover time. It has an IP31 rugged mental housing that provides great injection protection and heat dispersion capability that supports a wide operating temperature range, and it complies to EN50121-4 Track Side Standard so that can ensure the EMC protection capability.
Technical data
General specifications
| UL File Number | E185778 | |
| MTBF | 45.3 years |
Ethernet Interface
| Auto-MDI(-X) | yes | |||||||||||||
| Autonegotiation | yes | |||||||||||||
| Ethernet Interface | Industrial Ethernet | |||||||||||||
| Transfer rate | 10BASE-T, 100BASE-TX, 1000BASE-T | |||||||||||||
| Cable type | Category 5e or better | |||||||||||||
| Standards | ||||||||||||||
|
||||||||||||||
Indicators/operating means
| LED indication | see manual |
Electrical specifications
| Rated operating voltage | Ue | 10 … 60 V DC |
| Power consumption | 3.6 W | |
| General information | Redundant power, power fault alarm, relay output rating 1A Max. @ 24V DC | |
| Nominal voltage | 24 V DC |
Interface 1
| Physical | RJ45 | |
| Transfer rate | 10/100/1000Â Mbps |
Inputs/Outputs
| Number/Type | 4 x RJ45, 1 x SFP |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
Standard conformity
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Noise immunity | ENÂ 55024, EN61000-6-2 |
Ambient conditions
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0 … 3048 m |
Mechanical specifications
| Degree of protection | IP30 | ||||||||||

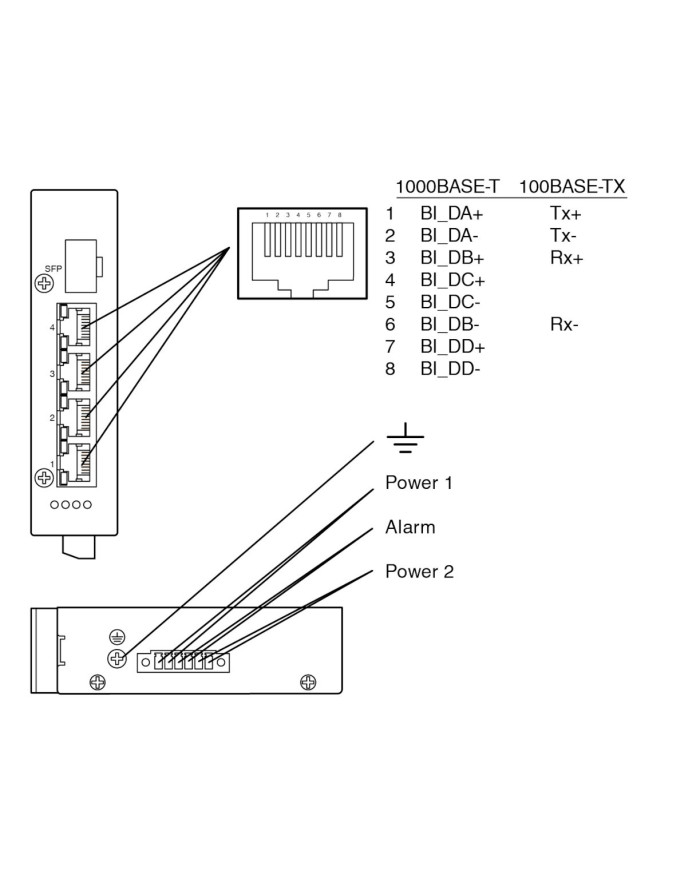

| Connection |
Power Supply Terminal Block
Ethernet 5 x RJ45 |
||||||||||
| Material | |||||||||||
|
|||||||||||
| Mass | 650 g | ||||||||||

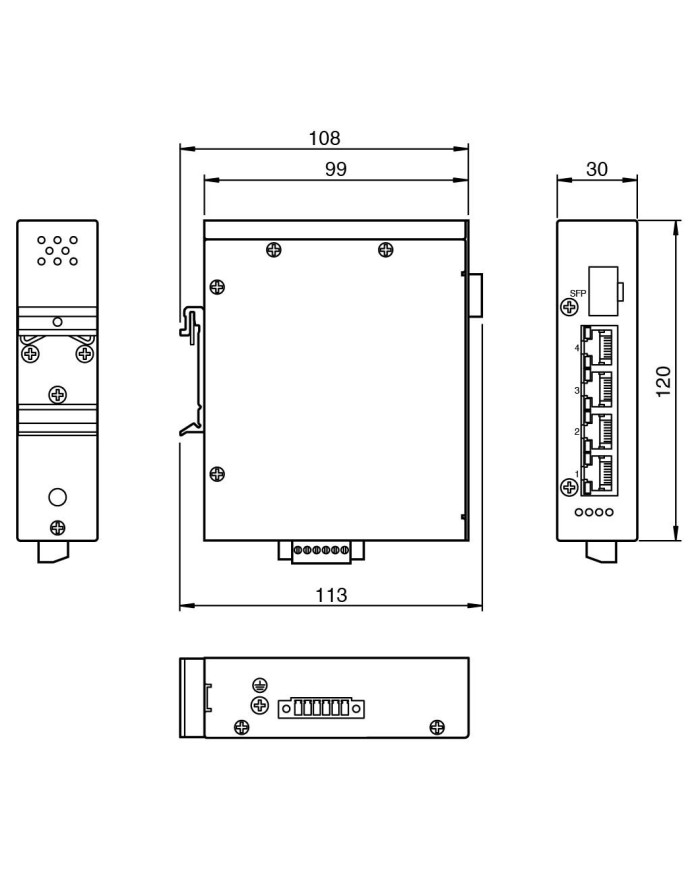

| Dimensions | |||||||||||
|
|||||||||||
| Construction type | Cabinet module | ||||||||||
| Mounting | DIN rail or direct panel mounting | ||||||||||
Data sheet
| SFP ports | 1 |
|---|---|
| Ethernet ports | 4 |
| Ethernet speed | 10/100/1000 Mbps |
| Operating voltage | 10-60 VDC |
