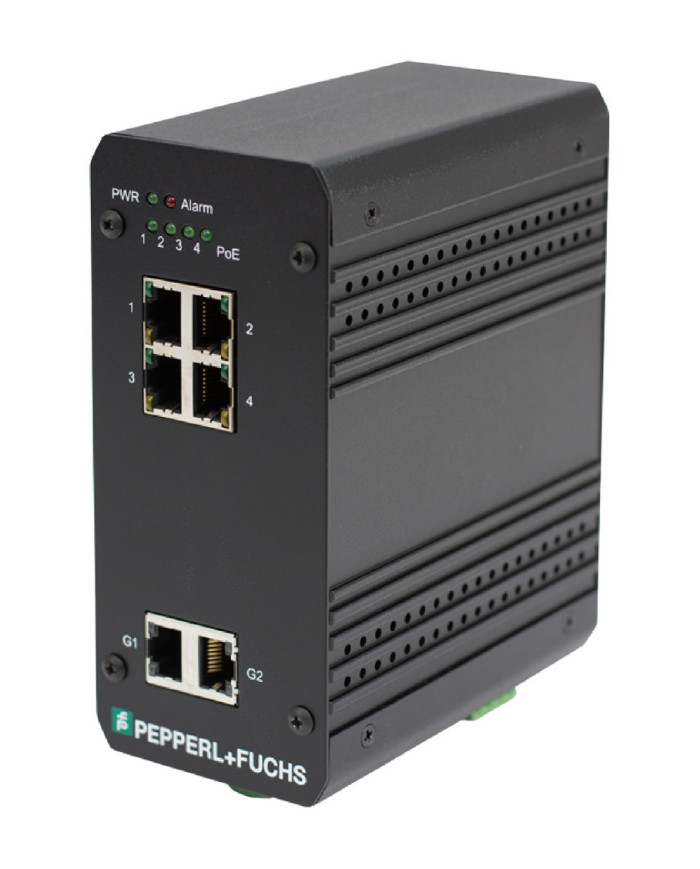

ICRL-U-6RJ45-PoE-B-DIN Switch
Ask for price
Ethernet unmanaged switch with 4 RJ45 ports and 2 uplink ports
- Industrial PoE IEEE 802.3af compliant unmanaged switch
- Four 10/100BASE-TX PoE ports and two Gigabit uplink ports
- Total output power budget of 60 W (15.4 W maximum on each port)
- Voltage boost technology that supports 12 - 2 4V DC power input sources for transportation, security and industrial applications
- QoS support for optimizing video and VoIP stream
- Alarm relay for failure and event notification
- Wide operating temperature range (-25 to +60 °C)
- Suitable for PROFINET IO and EtherNet/IP
Description
Product Details
The ICRL-U-6RJ45-PoE-B-DIN is a 6-port unmanaged Power over Ethernet switch designed for use in vehicular and industrial applications. Featuring voltage boost technology it boosts an input voltage of 12 to 24 VDC to 48 VDC on each of its four 802.3af compliant 10/100 Mbps PoE ports. Two 1 Gbps ports connect attached PoE devices to the rest of the network without risk of traffic congestion. The passively cooled design ensures long-term reliability while providing 60 W of power to attached PoE devices in environments ranging in temperature from -25 to +60°C.
Technical data
General specifications
| UL File Number | E185778 | |
| MTBF | 22.8 years |
Ethernet Interface
| Connection type | RJ45 | |||||||||||||||||||
| Auto-MDI(-X) | yes | |||||||||||||||||||
| Autonegotiation | yes | |||||||||||||||||||
| Transfer rate | 4 - 10BASE-T, 100BASE-TX 10/100 Mbps 2 - 10BASE-T, 100BASE-TX, 1000BASE-T 10/100/1000 Mbps | |||||||||||||||||||
| Cable type | Category 5e or better | |||||||||||||||||||
| PoE features | ||||||||||||||||||||
|
||||||||||||||||||||
| Standards | ||||||||||||||||||||
|
||||||||||||||||||||
Indicators/operating means
| LED indication | see manual |
Electrical specifications
| Rated operating voltage | Ue | 12 … 24 V DC |
| Power consumption | 8.3 W max. 24 V without PD loading | |
| General information | Digital output (relay output) rating 1 A Max. @ 24 V DC, Digital input , Alarm relay for failure and event notification | |
| Nominal voltage | UN | 12 V, 24 V |
Inputs/Outputs
| Number/Type | 4 x RJ45 (Fast Ethernet) 2 x RJ45 (Gigabit) |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
| RoHS | |||||
|
|||||
Standard conformity
| Electrical safety | CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 | |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Noise immunity | EN 55032 |
Ambient conditions
| Ambient temperature | -25 … 60 °C (-13 … 140 °F) | |
| Storage temperature | -40 … 80 °C (-40 … 176 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0 … 3048 m |
Mechanical specifications
| Degree of protection | IP30 | ||||||||||
| Connection |
Power Supply Terminal Block (4-pin)
Ethernet 6 x RJ45 |
||||||||||
| Material | |||||||||||
|
|||||||||||
| Mass | 1.05 kg | ||||||||||

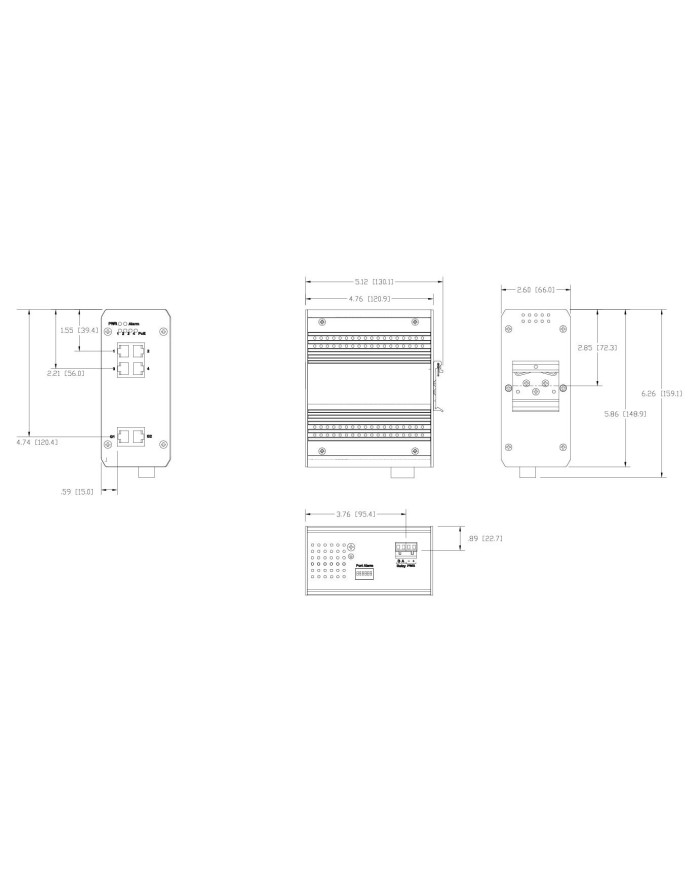

| Dimensions | |||||||||||
|
|||||||||||
| Construction type | Cabinet module | ||||||||||
| Mounting | DIN rail or direct panel mounting | ||||||||||
Data sheet
| Ethernet ports | 6 |
|---|---|
| Ethernet speed | 10/100 Mbps 10/100/1000 Mbps |
| POE ports | 4 |
| Operating voltage | 12-24 VDC |
