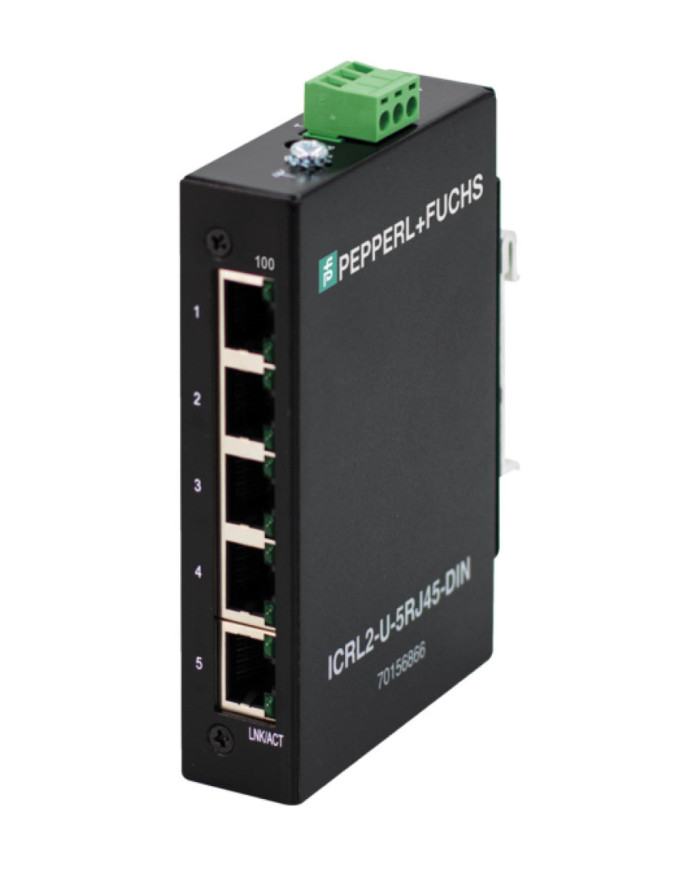

ICRL2-U-5RJ45-DIN Switch
Ask for price
Ethernet unmanaged switch with 5 RJ45 ports and extended temperature range
- Five - 10/100BASE-TX ports
- Rugged housing for use in harsh environments
- Suitable for PROFINET IO and EtherNet/IP
- Extended temperature range
Description
Product Details
Engineered for reliability. Optimized for network performance. Based on the latest standards for cybersecurity. As a crucial node in your industrial network, Pepperl+Fuchs Ethernet switches ensure stable and fast data transmission for your mission-critical industrial networking applications.
The ICRL2-U-5RJ45-DIN is an unmanaged Industrial Ethernet switch that is specially designed to expand reliable Ethernet connectivity to factory floors and outdoor environments with extreme temperature and climatic conditions. The device is equipped with 5 x 10/100 RJ45 ports that are enclosed in an IP30 housing.
Technical data
General specifications
| UL File Number | E223772 | |
| MTBF | 67.9 years |
Ethernet Interface
| Number of ports | 5 | ||||||||||
| Auto-MDI(-X) | yes | ||||||||||
| Autonegotiation | yes | ||||||||||
| Ethernet Interface | Industrial Ethernet | ||||||||||
| Transfer rate | 10BASE-T, 100BASE-TX | ||||||||||
| Network performance | Jumbo frame size: 1552 bytes Broadcast storm protection for broadcast packet | ||||||||||
| Cable type | Category 5e or better | ||||||||||
| Switch properties | |||||||||||
|
|||||||||||
| Standards | |||||||||||
|
|||||||||||
Indicators/operating means
| LED indication | see manual |
Electrical specifications
| Rated operating voltage | Ue | 12 … 48 V DC |
| Power consumption | 3 W | |
| General information | Current overload protection, Power input polarity protection | |
| Nominal voltage | 24 V DC | |
| Current consumption | typ. 6 mA |
Interface 1
| Physical | RJ45 | |
| Transfer rate | 10/100Â Mbps |
Inputs/Outputs
| Number/Type | 5 x RJ45 |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
Standard conformity
| Electrical safety |
CSA C22.2 No. 61010-1-12
UL 61010-1, IEC 61010-2-201 |
|
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Noise immunity | EN 55035:2017/A11:2020 | |
| Shock resistance | EN 60068-2-27 | |
| Vibration resistance | IEC 60068-2-6 |
Ambient conditions
| Ambient temperature | -40 … 75 °C (-40 … 167 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0 … 3048 m |
Mechanical specifications
| Degree of protection | IP30 | ||||||||||

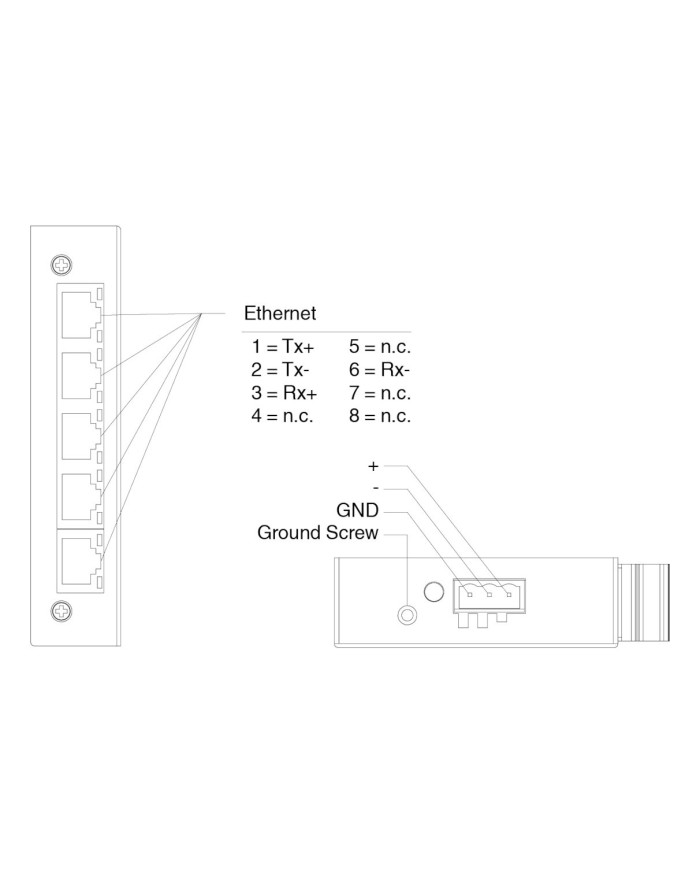

| Connection |
Power Supply Terminal Block
Ethernet 5 x RJ45 |
||||||||||
| Material | |||||||||||
|
|||||||||||
| Mass | 180 g | ||||||||||

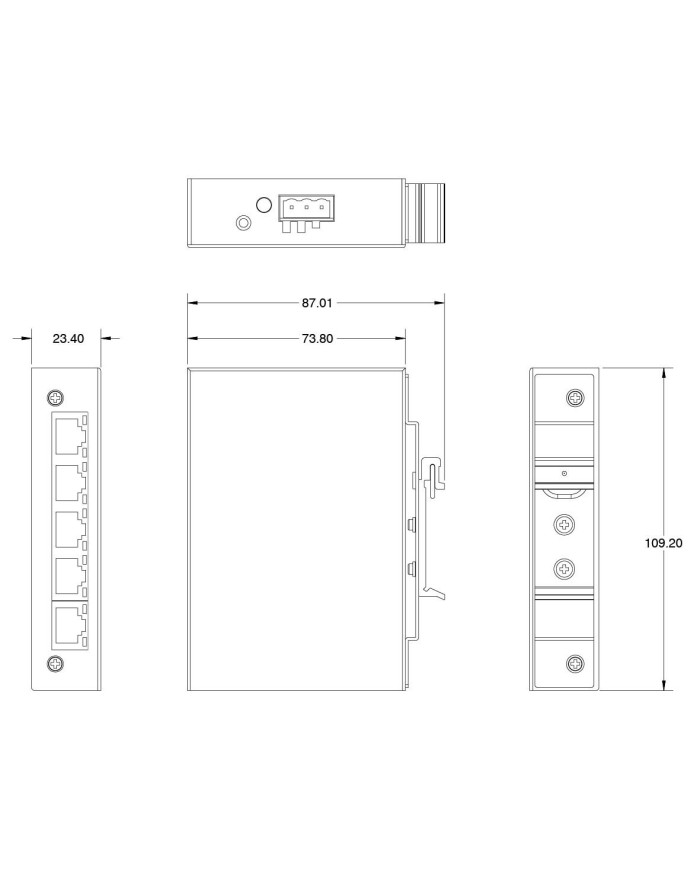

| Dimensions | |||||||||||
|
|||||||||||
| Construction type | Cabinet module | ||||||||||
| Mounting | DIN rail or direct panel mounting | ||||||||||
