Pepperl+Fuchs

ICRL-M-8RJ45/4SFP-G-DIN Switch

Ask for price

Ethernet managed gigabit switch with 8 RJ45 and 4 SFP ports

  • 8 Gigabit Ethernet RJ45 ports and 4 Gigabit SFP ports with DDM function
  • Layer 2 Network Performance
  • Redundant power input with an input power range of 10 to 36 VDC
  • IP20 with an extreme operating temperature range of -40 to 75°C
  • Suitable for PROFINET IO and EtherNet/IP

Attachments:
ICRL-M-8RJ45/4SFP-G-DIN Data Sheet
ICRL-M-8RJ45/4SFP-G-DIN EU Declaration of Conformity

Add to Compare
Brand: Pepperl+Fuchs
Description

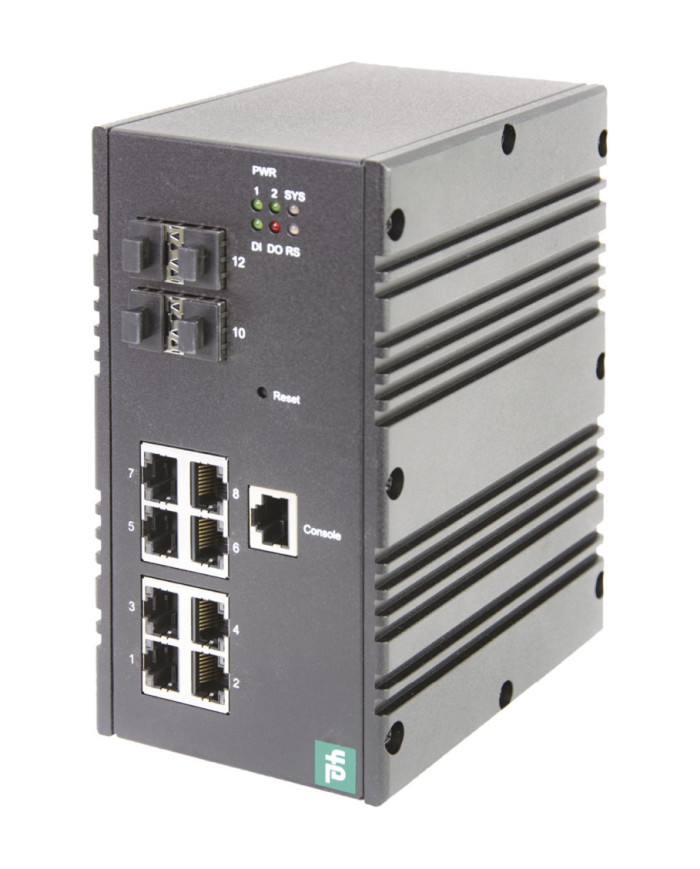

The ICRL-M-8RJ45/4SFP-G-DIN is a Gigabit industrial Ethernet Switch with eight RJ45 ports and four Gigabit SFP sockets for optical fiber network connection. It provides an Ethernet MAC controller with 24 Gbps Switch fabric bandwidth with 9K jumbo frame forwarding.
The robust system design makes the switch survive under harsh outdoor environment with extreme electric magnetic interference and the variation of environment temperature. The switch also provides your network infrastructure with great performance and safety with network access control, and the ability to handle burst packets with smart buffer management for IP surveillance in real infrastructures.

Technical data


General specifications

UL File Number E185778
MTBF 69 years

Ethernet Interface

Connection type RJ45, SFP
Auto-MDI(-X) yes
Autonegotiation yes
Ethernet Interface Industrial Ethernet
Transfer rate 8 - 10BASE-T, 100BASE-TX, 1000BASE-T, 4 - SFP 100/1000 Mbps
Management IPv4, IPv6, Console, HTTP, HTTPS, PortVision DX, SFTP, SNMP (v1, v2c, and v3), SSH, Telnet, TFTP
MIB MIB-II, Bridge MIB, Ethernet-like-MIB, VLAN MIB, IGMP MIB, Private MIB
Monitoring LLDP, Port Mirroring, RMON
Multicast IGMP Query, IGMP Snooping, GMRP
Network performance CFM, Jumbo Frames, QoS, CoSQueue Mapping, DSCP Priority Mapping
Network redundancy STP, RSTP, MSTP, ERPS, redundant ring, LACP, static port aggregation
Network services DHCP Server (with Option 82), NTP, IEEE 1588 PTPv2 over UDP/IP
Notifications E-Mail, Fault Relay, SNMP Traps, Syslog
Safety RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, MAC-Based Port Security
Traffic filtering Storm Control (Broadcast, Multicast, and DLF), Rate Control, VLAN, Private VLAN, QinQTunneling, GVRP, IP Filtering, MAC Filtering, ARP Filtering
Cable type Category 5e or better
Switch properties
Hardware watchdog timer 10 s reset timer
MAC address table size 16K
Operating mode Store and forward
Packet buffer size 1.5M Bytes shared memory for packet buffer with intelligent memory management unit for burst data traffic
Priority queues 8
VLAN entries IEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries; 3 VLAN link modes- Trunk mode, Hybrid mode and Link access mode
SFP support 100BASE-FX Fiber, 1000BASE-SX/LX/LHX/XD/ZX
Standards
IEEE 802.3 10BASE-T yes
IEEE 802.3u 100BASE-TX yes
IEEE 802.3x Flow Control and Back-pressure yes
IEEE 802.1p Class of Service (CoS) yes
IEEE 802.3ab 1000BASE-T yes
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) yes
IEEE 802.1Q VLAN and GVRP yes
IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) yes
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) yes
IEEE 802.3ad Link Aggregation Protocol (LACP) yes
IEEE802.1ad QinQ Tunneling yes
IEEE 802.1x Port Based Network Access Protocol yes
ITU-T G.8032 ERPS yes

Indicators/operating means

LED indication see manual

Electrical specifications

Rated operating voltage Ue 10 … 36 V DC
General information Redundant power, digital output (relay output) rating 0.5A Max. @ 24V DC, Digital input
Nominal voltage 24 V DC

Inputs/Outputs

Number/Type 8 x RJ45, 4 x SFP

Directive conformity

Electromagnetic compatibility
Directive 2014/30/EU EN 61000-6-2, IEC 61000-6-2, EN 61000-6-4, IEC 61000-6-4

Standard conformity

Electrical safety CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950
Emitted interference CISPR 22, FCC Part 15 Subpart B Class A, EN61000-6-4, IEC61000-6-4
Noise immunity EN61000-6-2, IEC61000-6-2

Ambient conditions

Ambient temperature -40 … 75 °C (-40 … 167 °F)
Storage temperature -40 … 85 °C (-40 … 185 °F)
Relative humidity max. 95 %
Altitude 0 … 3048 m

Mechanical specifications

Degree of protection IP30
Connection Power Supply Terminal Block (4-pin)
Ethernet 8 x RJ45, 4 x SFP
Material
Housing aluminium, black
Mass 1460 g

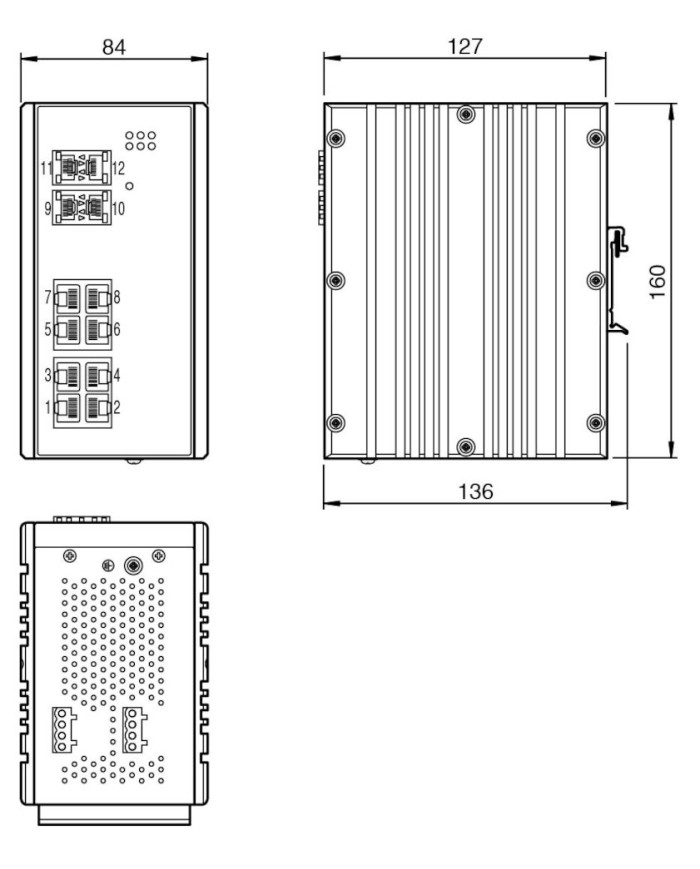

Dimensions
Height 160 mm
Width 84 mm
Length 127 mm
Construction type Cabinet module
Mounting DIN rail or direct panel mounting
Product Details
Pepperl+Fuchs

Data sheet

SFP ports4
Ethernet ports8
Ethernet speed10/100/1000 Mbps
Operating voltage10-36 VDC
