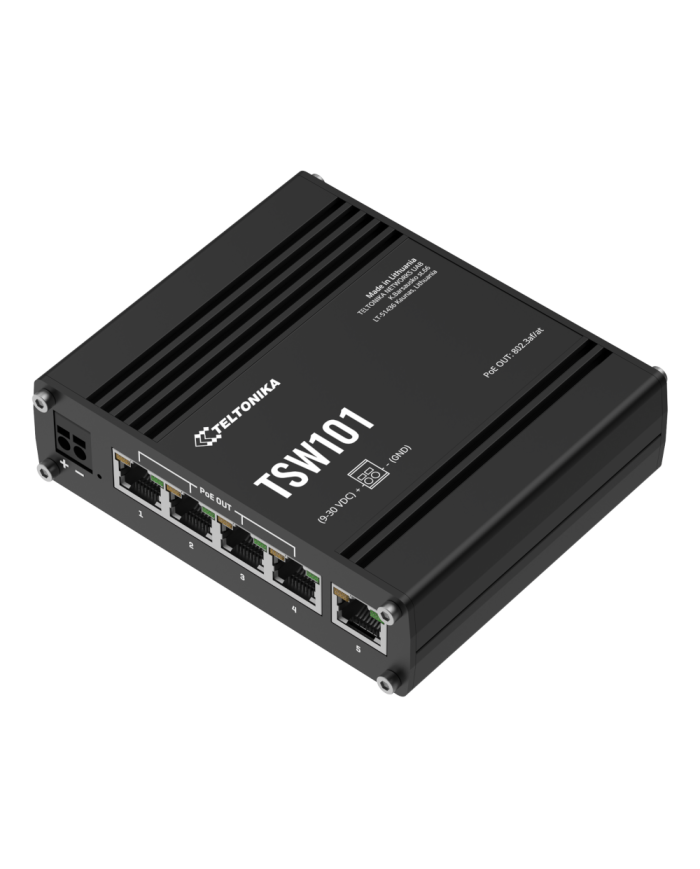

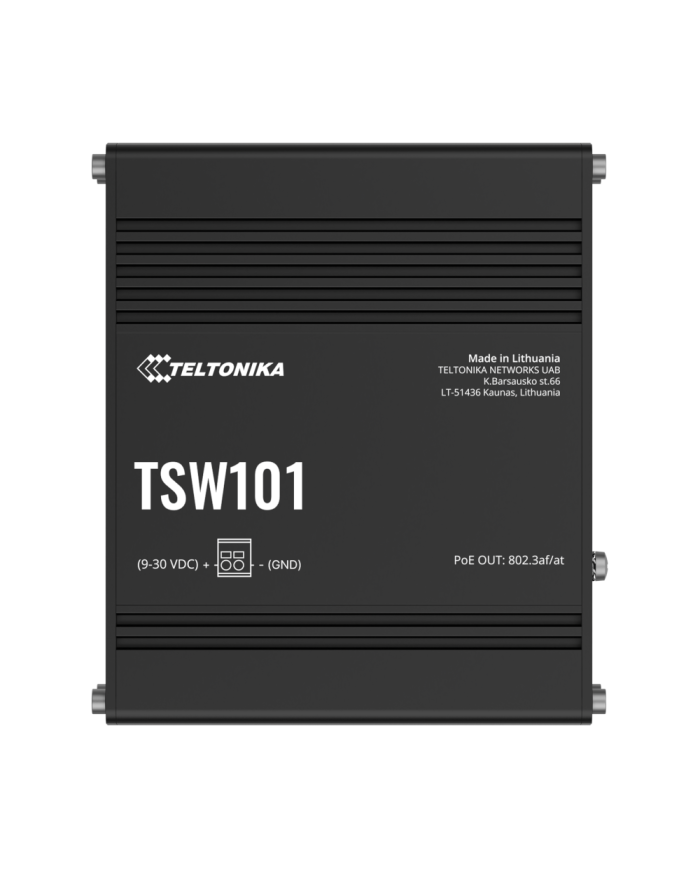

TSW101 Switch
Ask for price
Unmanaged Automotive POE+ Switch
Plug and Play - No configuration needed
POE+ - 4 x PoE+ ports with 802.3af and 802.3at support
Gigabit Ethernet - 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
Industrial design - Rugged aluminum housing
Description
Product Details
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
KEY FEATURES
Hardware
| Powering option | 2-pin power DC socket, 9-30 VDC |
| Power consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W |
| PSU | 12 V or 24 V car battery-powered. No additional PSU is required. |
| PoE standart | 802.3af/at (max 30 W per port, total power budget 60 W) |

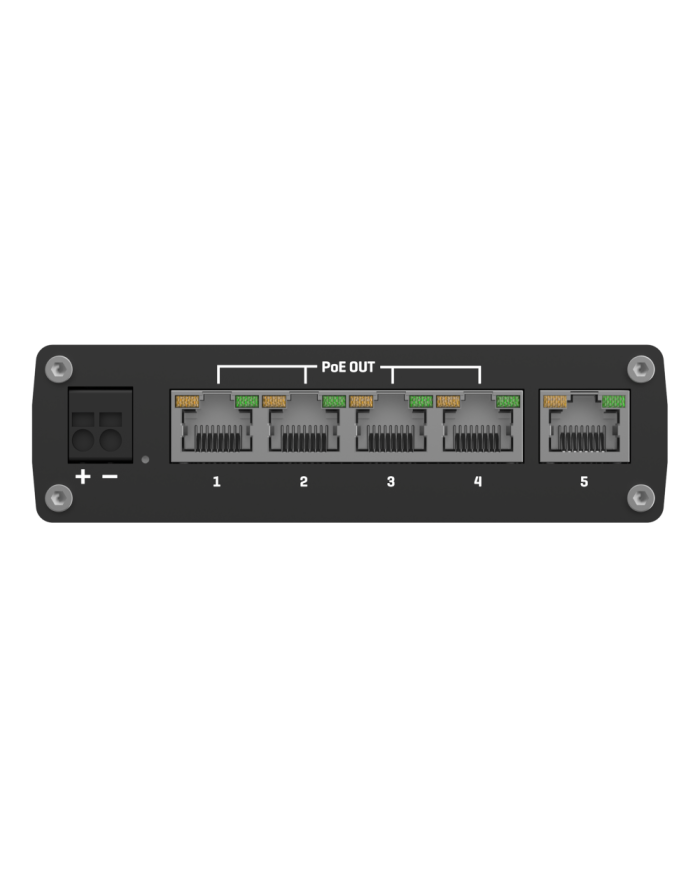

| Ethernet | 5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink |
| Status LEDs | 10 x Ethernet, 1 x Power |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |

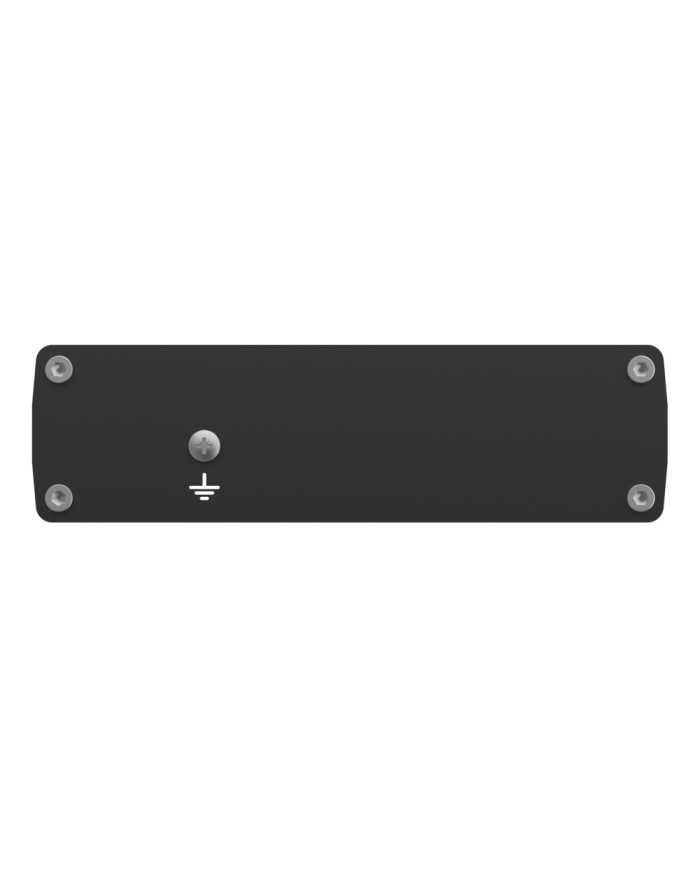

| Housing | Aluminum housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 354 g |
Performance specifications
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |
Standard package
- TSW101 Switch
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 5 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| POE ports | 4 |
| Operating voltage | 9-30 VDC |
| PoE input operating voltage | 9-30 VDC |
| Maximum power consumption | 2.31 W |
| Maximum PoE power consumption | 62.3 W |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 384 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40 °C ~ 75 °C |
| IP degree of protection | IP30 |
