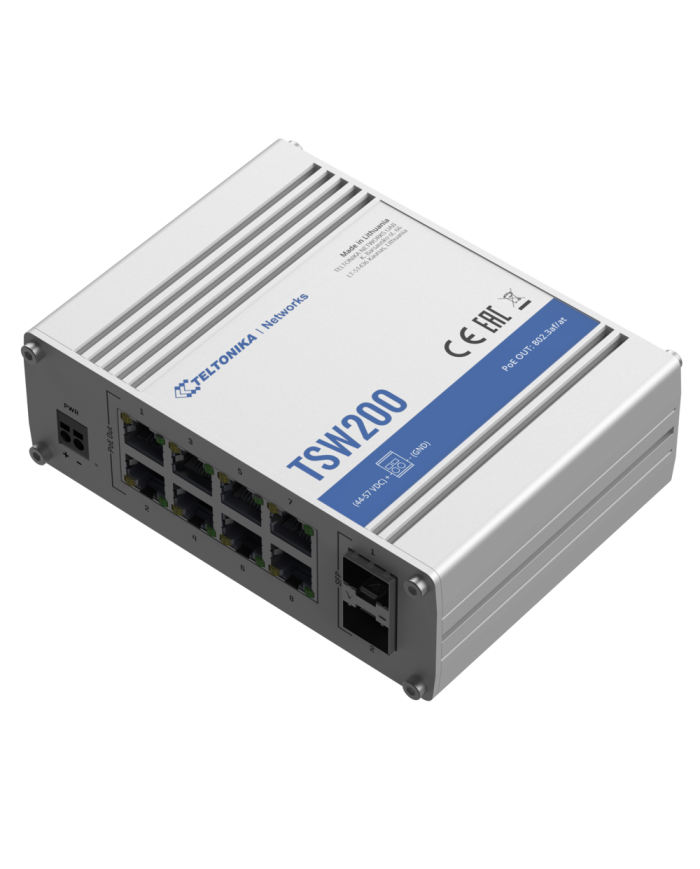

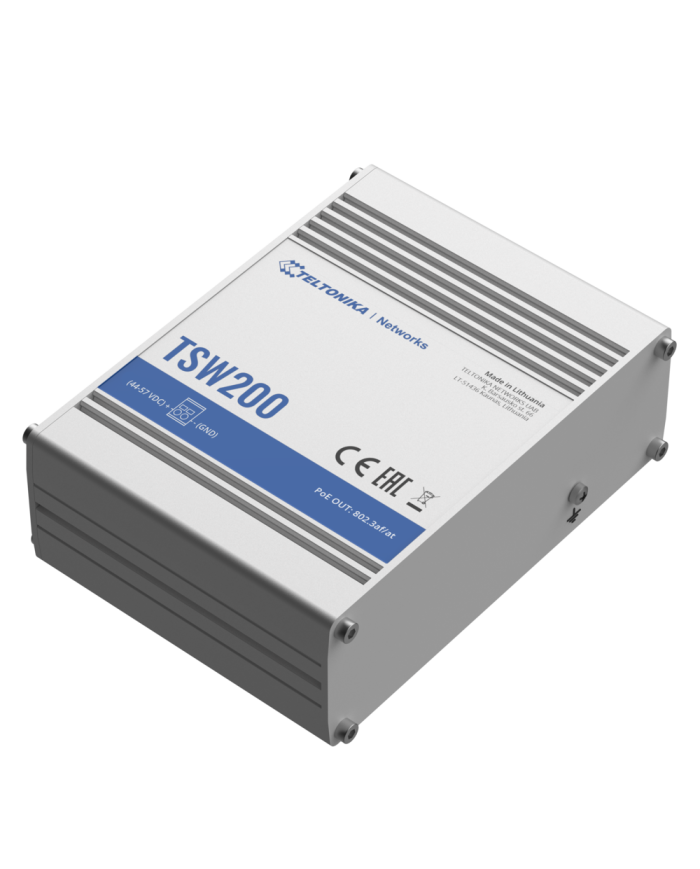

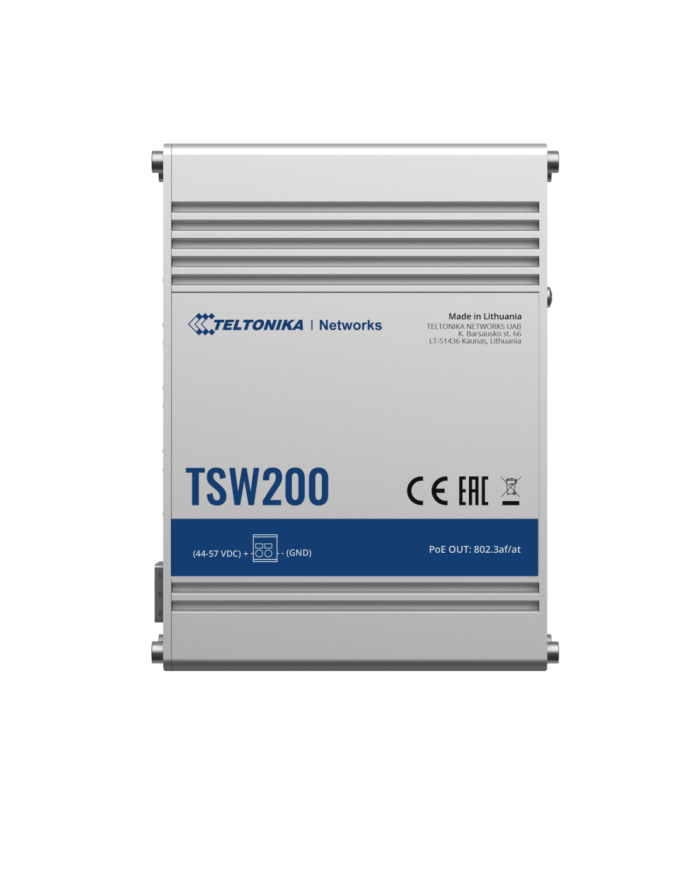

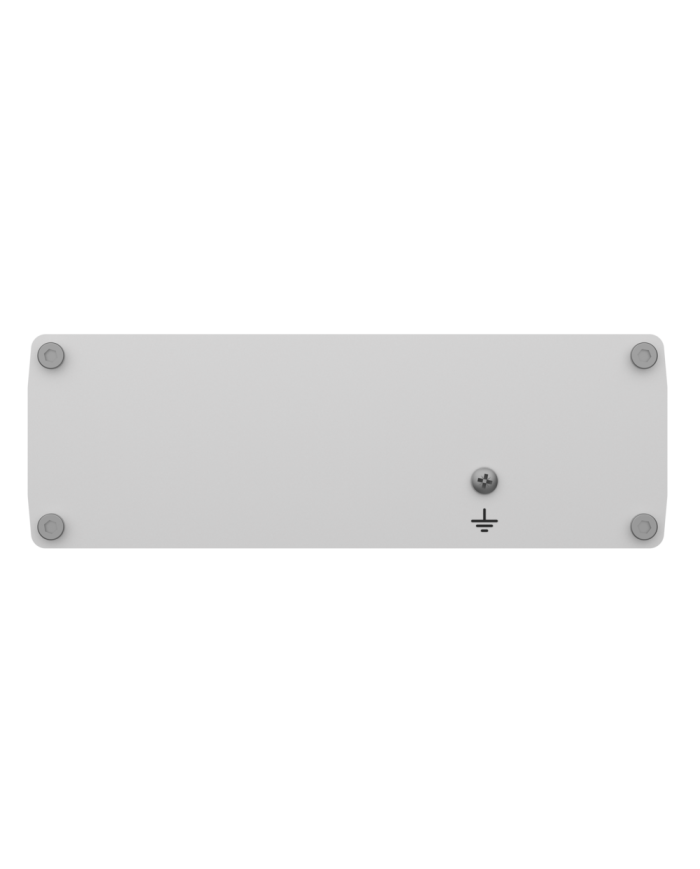

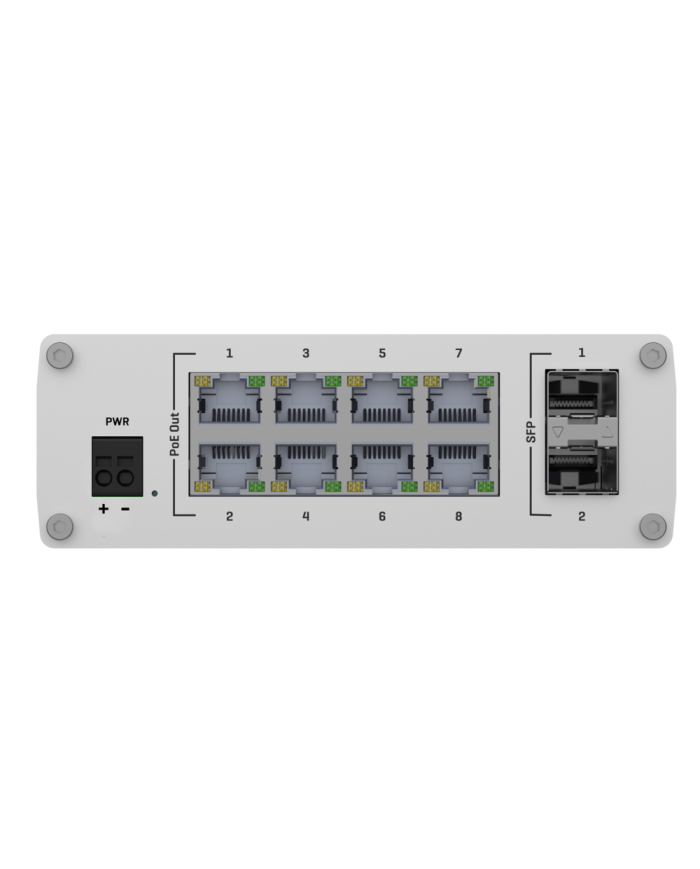

TSW200 Switch
Ask for price
Industrial Unmanaged POE+ Switch
POE+: 8x PoE ports with 802.3af and 802.3at support
SFP: 2 x SFP ports for long-range Fiber-optic communication
Ethernet: 8 x Gigabit Ethernet with speeds up to 1000 Mbps
Power budget: total power budget at PSE up to 240 W
Durabilit: rugged aluminium housing
Mounting: DIN rail and surface mounting options
Description
Product Details
TSW200 is industrial unmanaged switch from Teltonika Networks. TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network. This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply. The device offers a wide range of operating temperatures (-40°C ~ +75°C).
Standard package contains
- TSW200 Switch
- QSG (Quick Start Guide)
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| SFP ports | 2 |
|---|---|
| Ethernet ports | 8 |
| Ethernet speed | 10/100/1000 Mbps |
| POE ports | 8 |
| Operating voltage | 7-57 VDC 44-57 VDC PoE |
| Maximum power consumption | 5,5 W 245,5 W PoE |
| Dimensions | 132 x 44,2 x 95,1 mm |
| Weight | 456 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C ~ +75°C |
| IP degree of protection | IP30 |
