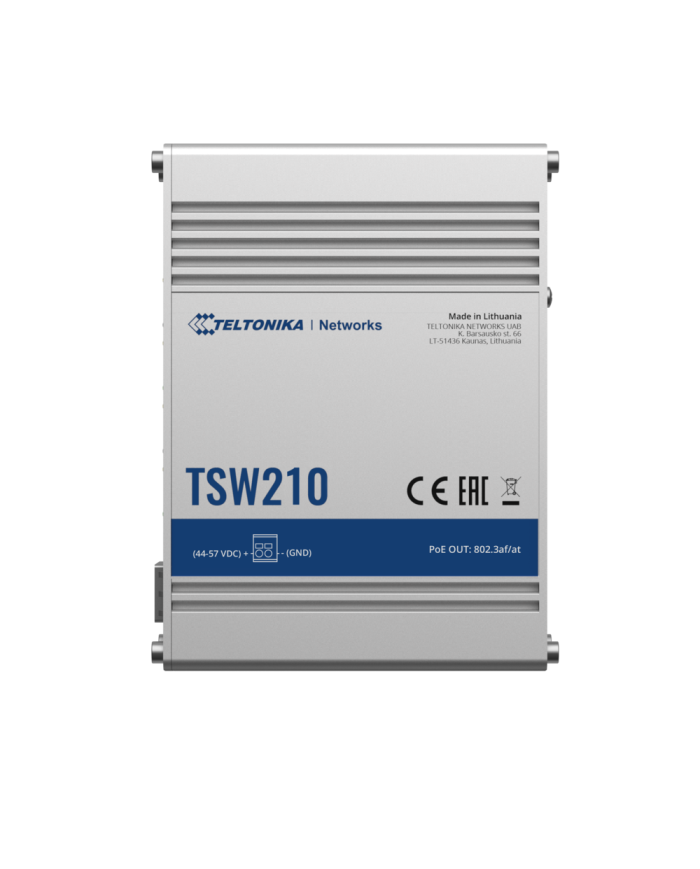

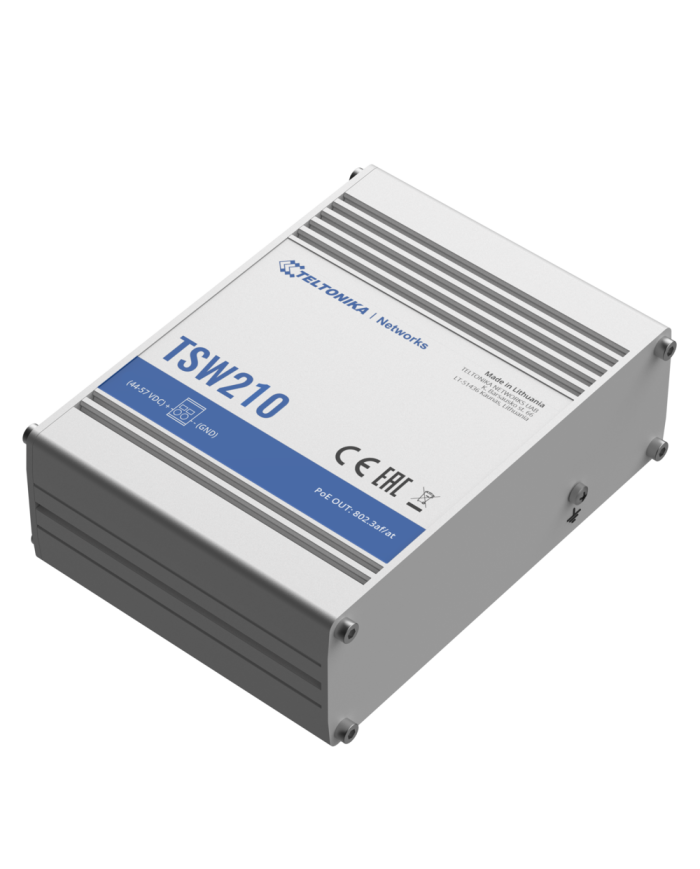

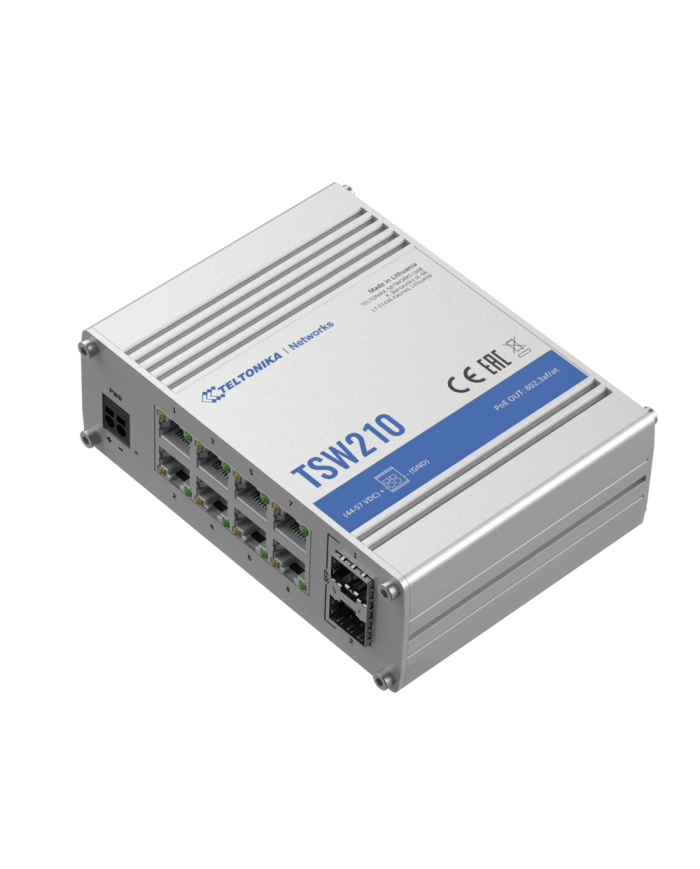

TSW210 Switch
Ask for price
Industrial Unmanaged Switch
7-57 V: wide range of supported power supply voltages
Power connector: 2-pin industrial DC power socket
SFP: 2 x SFP ports for long-range fiberoptic communication
Durability: rugged aluminum housing for industrial settings
Mounting: DIN rail and surface mounting options

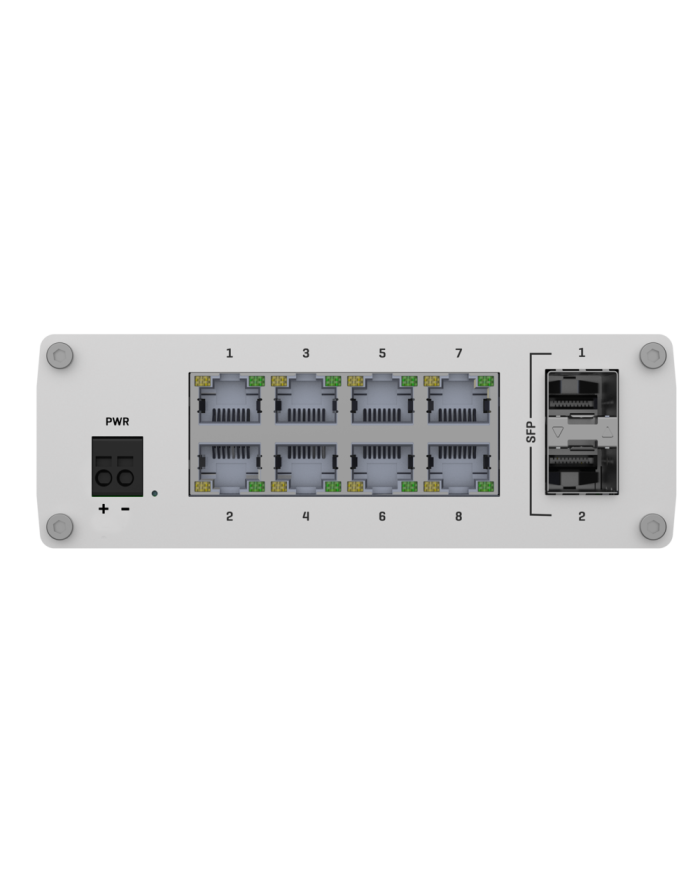

Ethernet: 8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
Description
Product Details
The TSW210 is an industrial unmanaged switch for centralizing your resources. Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed. Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings. 2-pin industrial DC power socket with an input voltage range of 7-57 VDC. The device offers a wide range of operating temperatures (-40°C ~ +75°C).
Standard package contains
- TSW210 Switch
- QSG (Quick Start Guide)
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| SFP ports | 2 |
|---|---|
| Ethernet ports | 8 |
| Ethernet speed | 10/100/1000 Mbps |
| Operating voltage | 7-57 VDC |
| Maximum power consumption | 3,71 W |
| Dimensions | 132 x 44,2 x 95,1 mm |
| Weight | 500 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C ~ +75°C |
| IP degree of protection | IP30 |
