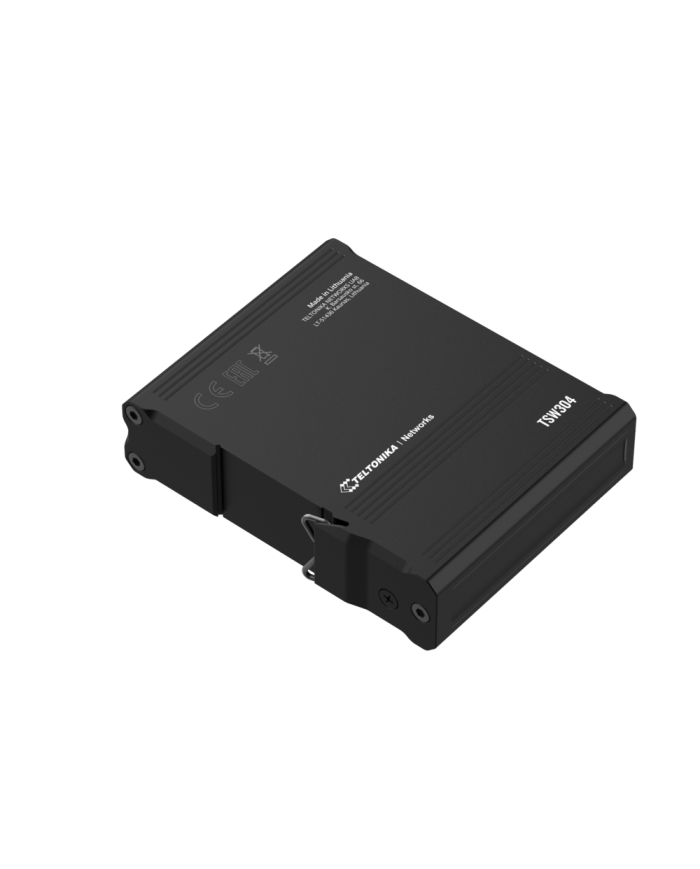

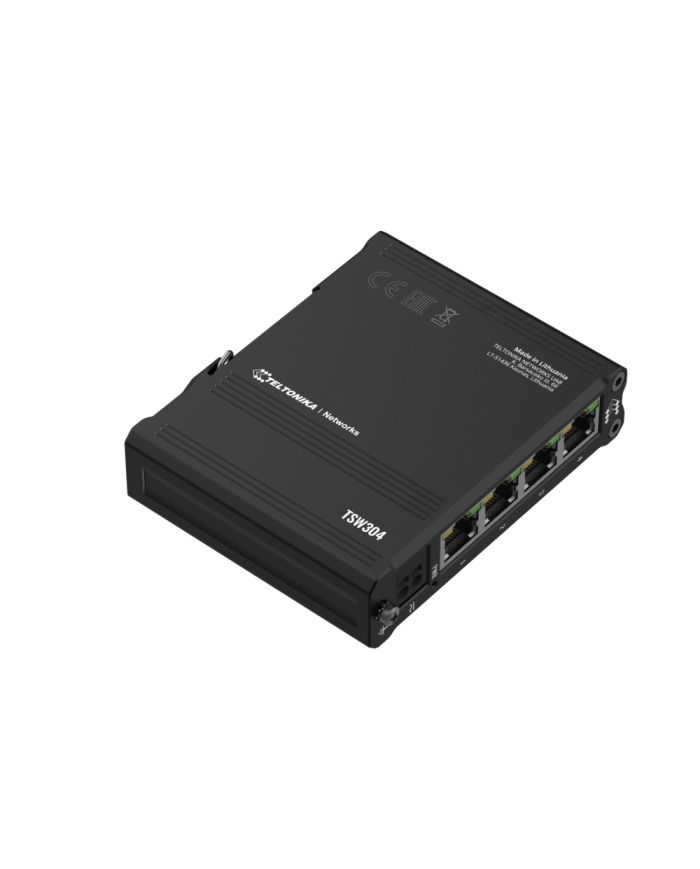

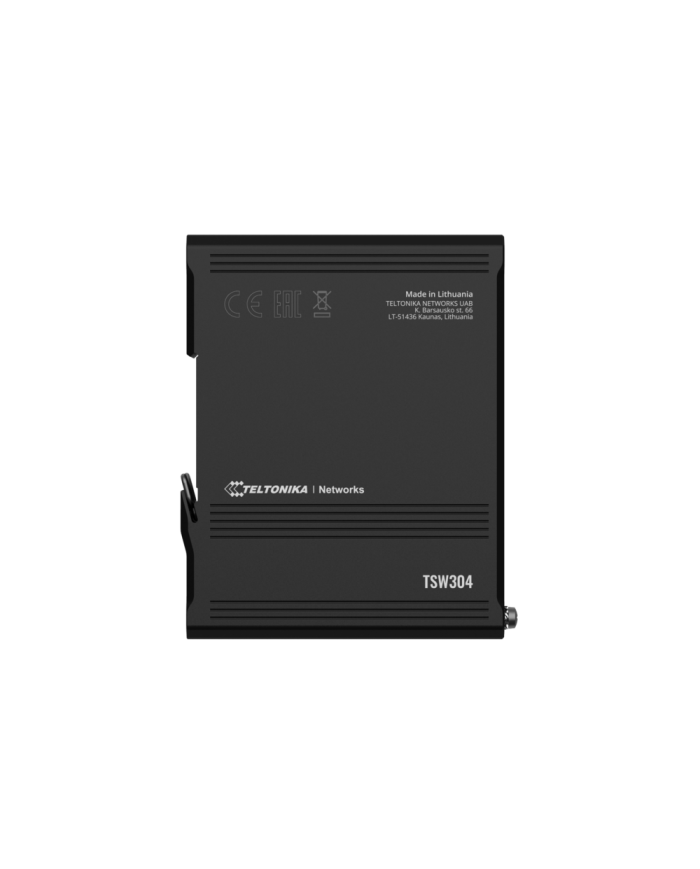

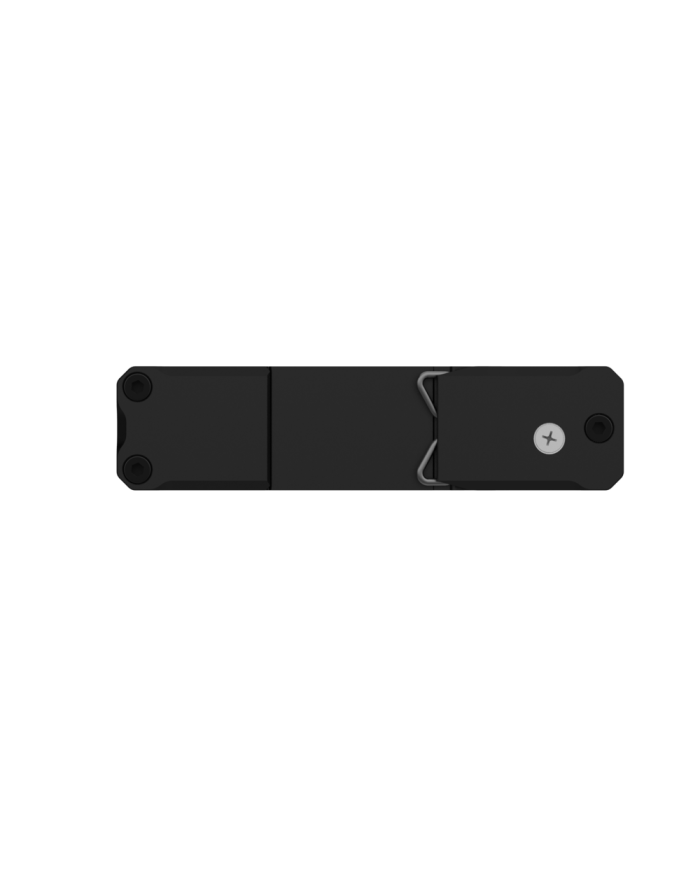

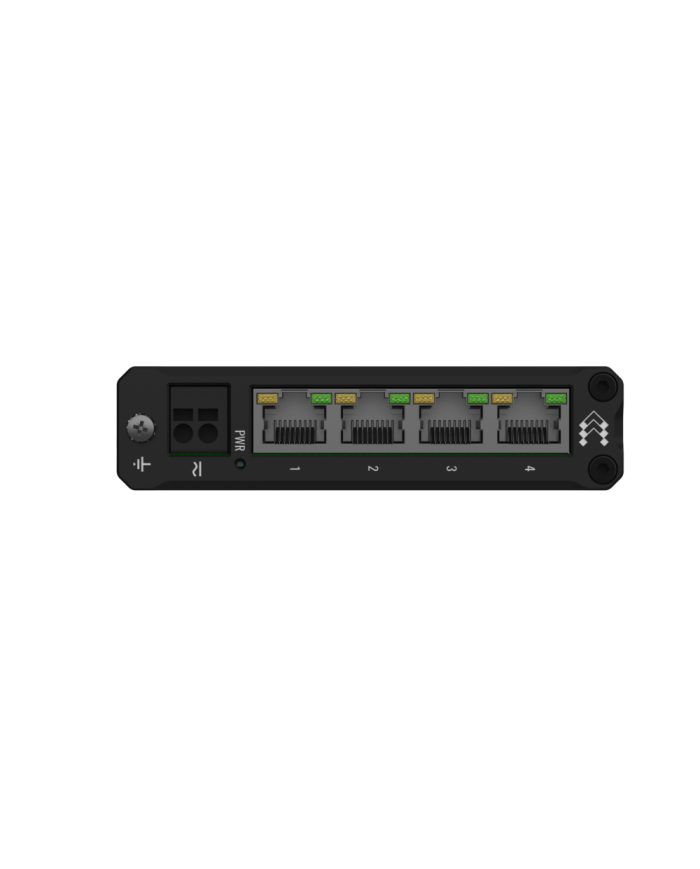

TSW304 Switch
Ask for price
DIN Rail Switch
DIN rail: built-in, integrated DIN mounting
Compact: 102 x 25 x 81.5 mm
Gigabit Ethernet: 4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V: wide range of supported power supply voltages
Durability: rugged aluminum housing
From -40 °C to 75 °C: wide operating temperature range
Description
Product Details
TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards. Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount. 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput. 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC). Furthermore, the device offers a wide range of operating temperatures (-40°C ~ +75°C).
Standard package contains
- TSW304 Switch
- QSG (Quick Start Guide)
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 4 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Operating voltage | 7-57 VDC 9-40 VAC |
| Maximum power consumption | 1,44 W |
| Dimensions | 102 x 25 x 81,5 mm |
| Weight | 210 g |
| Mounting options | DIN rail |
| Operating temperature | -40°C ~ +75°C |
| IP degree of protection | IP30 |
