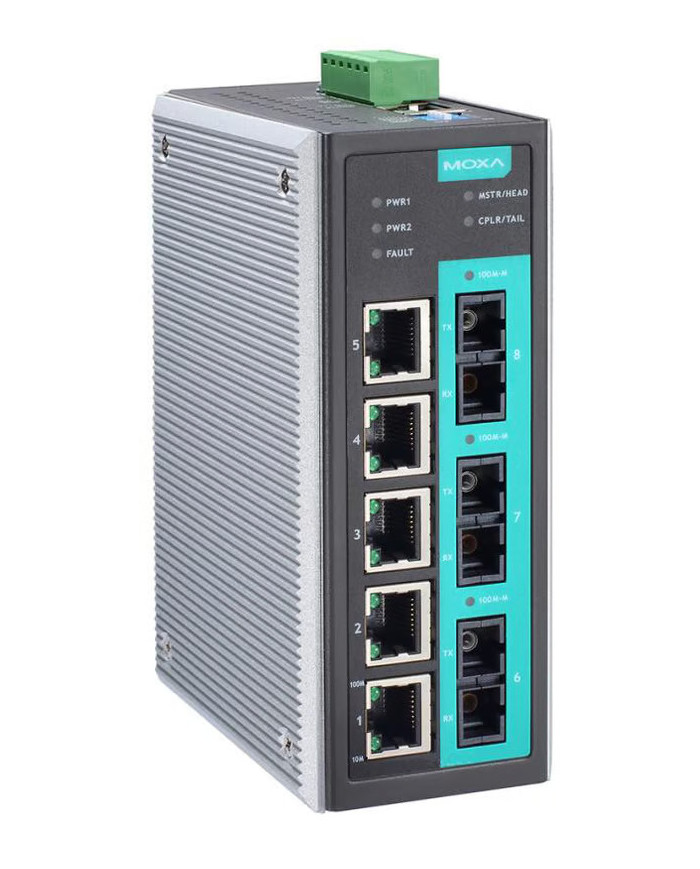

EDS-408A-3M-SC Industrial Managed Ethernet Switch
Ask for price
Industrial layer 2 managed Ethernet switch with 5x 10/100BaseT(X) ports, 3x 100BaseFX multi-mode ports with SC connectors, integrated DIN-rail mount, 0°C to 60°C operating temperature
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- Supports MXstudio for easy, visualized industrial network management
Description
Product Details
The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
Additional Features and Benefits
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, Modbus TCP and PROFINET (EDS-408A-PN Series only) protocols for device management and monitoring
- EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
- PROFINET GSDML file and SIMATIC STEP 7 device icons available (EDS-408A-PN Series only)
- Port mirroring for online debugging
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
- RMON for proactive and efficient network monitoring
- SNMPv1/v2c/v3 for different levels of network management security
- Bandwidth management to prevent unpredictable network status
Technical data
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) |
EDS-408A/408A-T, EDS-408A-EIP/PN models: 8
EDS-408A-MM-SC/MM-ST/SS-SC models: 6 EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC models: 5 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) |
EDS-408A-MM-SC/2M1S-SC models: 2
EDS-408A-3M-SC models: 3 EDS-408A-1M2S-SC models: 1 |
| 100BaseFX Ports (multi-mode ST connector) |
EDS-408A-MM-ST models: 2
EDS-408A-3M-ST models: 3 |
| 100BaseFX Ports (single-mode SC connector) |
EDS-408A-SS-SC/1M2S-SC models: 2
EDS-408A-2M1S-SC models: 1 EDS-408A-3S-SC/3S-SC-48 models: 3 |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol |
Ethernet Software Features
| Filter |
802.1Q VLAN
GMRP GVRP IGMP v1/v2 Port-based VLAN |
| Industrial Protocols |
EtherNet/IP
Modbus TCP EDS-408A-PN models: PROFINET IO Device (Slave) |
| Management |
Back Pressure Flow Control
BOOTP DHCP Option 66/67/82 DHCP Server/Client Flow control IPv4/IPv6 LLDP Port Mirror RARP RMON SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP |
| MIB |
Bridge MIB
Ethernet-like MIB MIB-II P-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB |
| Redundancy Protocols |
RSTP
STP Turbo Chain Turbo Ring v1/v2 |
| Security |
Broadcast storm protection
HTTPS/SSL NTP authentication Port Lock SNMPv3 SSH Trust access control |
| Time Management |
NTP Server/Client
SNTP |
Switch Properties
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1) |
DIP Switch Configuration
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
Input/Output Interface
| Alarm Contact Channels | Relay output with current carrying capacity of 1 A @ 24 VDC |
Power Parameters
| Connection | 1 removable 6-contact terminal block(s) |
| Input Voltage |
All models: Redundant dual inputs
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN models: 12/24/48 VDC EDS-408A-3S-SC-48/408A-3S-SC-48-T models: ±24/±48 VDC |
| Operating Voltage |
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN models: 9.6 to 60 VDC
EDS-408A-3S-SC-48 models: ±19 to ±60 VDC (-60 to -19 VDC or 19 to 60 VDC. Do not mix power polarity systems.) |
| Input Current |
EDS-408A, EDS-408A-EIP/PN/MM-SC/MM-ST/SS-SC models:
0.61 @ 12 VDC 0.3 @ 24 VDC 0.16 @ 48 VDC EDS-408A-3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC models: 0.73 @ 12 VDC ​ 0.35 @ 24 VDC 0.18 @ 48 VDC ​ EDS-408A-3S-SC-48 models: 0.33 A @ 24 VDC 0.17 A @ 48 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight |
EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: 650 g (1.44 lb)
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC models: 890 g (1.97 lb) |
| Installation |

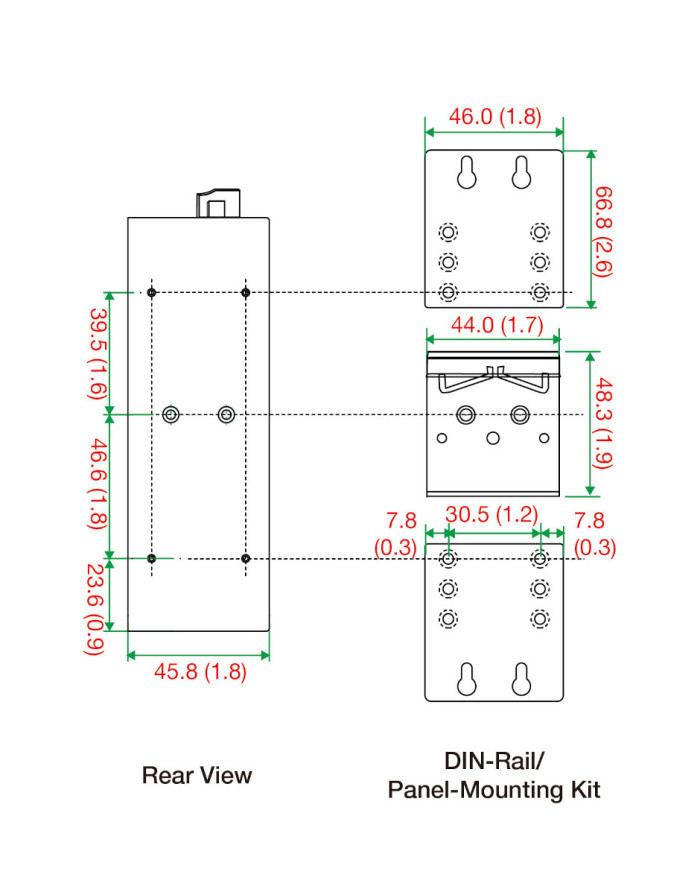

DIN-rail mounting
Wall mounting (with optional kit) |
Environmental Limits
| Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications
| Safety |
All models: UL 508
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC models, EDS-EIP/PN models: UL 6095-01. EN 62368-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: ATEX, Class I Division 2, IECEx |
| Railway | EN 50121-4 |
| Traffic Control | EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Maritime |
All models, exclude EDS-408A-3S-SC-48-(T): DNV, NK, LR
EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: ABS |
MTBF
| Time |
EDS-408A, EDS-408A-EIP/PN models: 1,339,439 hrs
EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC models: 1,253,072 hrs EDS-408A-3S-SC-48 models: 989,940 hrs |
| Standards | Telcordia (Bellcore), GB |
Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
