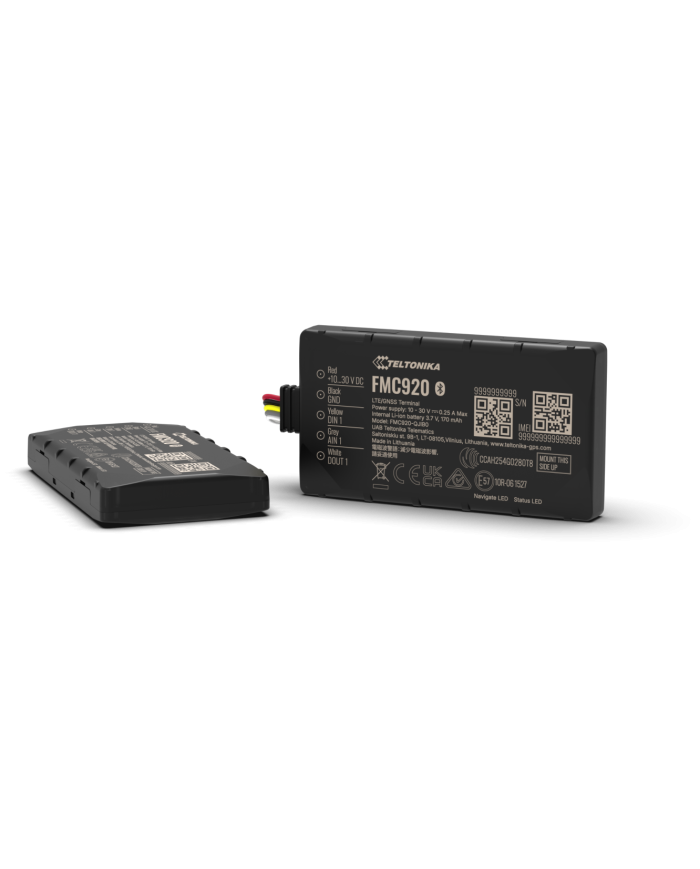

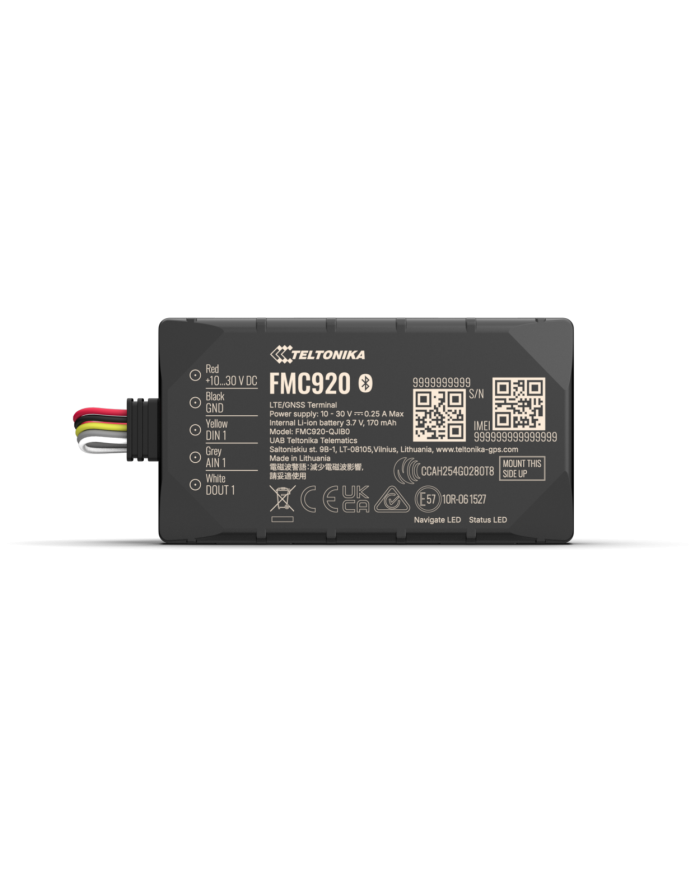

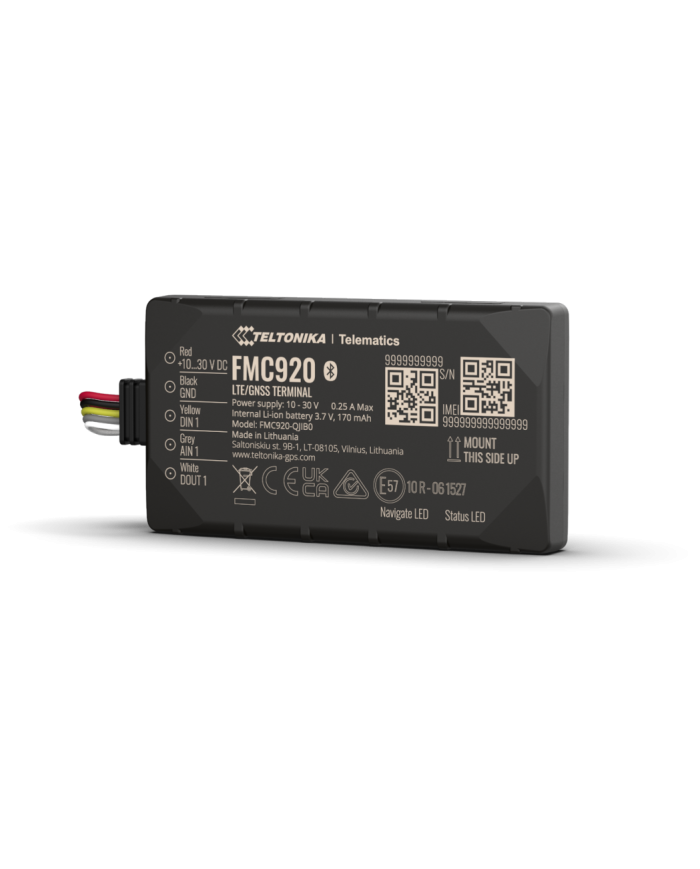

FMC920 Tracker
Ask for price
Small and smart GPS tracker with a 4G Cat 1 connectivity
FMC920 is a tracking terminal with GNSS and GSM connectivity, which is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications, which require the location acquirement of remote objects.
4G CAT 1- Reliable 4G (LTE Cat 1) connection with fallback 2G (GSM) network
Bluetooth technology - Bluetooth LE for external devices and sensors
Crash detection - Crash detection functionality working according accelerometer data
Backup battery - Allows device to work without external power source
Description
Product Details
Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency. The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more. All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation. The far-reaching experience of the FMC920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.
Eco driving scenario for all-round better driving
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario.
Slim design to fit the tightest spaces
12 mm-height device can be easily fitted in the tightest spaces.
Extensive remote monitoring possibilities
Blocking engine remotely among the numerous available fleet control measures.
Extended product usage scenarios
Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.
PRODUCT SPECIFICATIONS
Module
| Name |
FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500 FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500 |
| Technology | LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH LE |
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 2.5 m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology | LTE Cat 1, GSM |
| 2G bands |
FMC920-QJIB0: GSM: B2/B3/B5/B8 FMC920-QKIB0: GSM: B2/B3/B5/B8 |
| 4G bands |
FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Data transfer |
LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
Power
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
| Power consumption |
At 12V < 2 mA (Ultra Deep Sleep) At 12V < 3 mA (Deep Sleep) At 12V < 8 mA (Online Sleep) At 12V < 12 mA (GNSS Sleep) At 12V < 28 mA (Nominal) |
Bluetooth technology
| Specification | 4.0 + LE |
| Supported peripherals | EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner, Unversal Bluetooth LE beacons and sensors support |
Physical specification
| Dimensions | 79 x 43 x 12 mm (L x W x H) |
| Weight | 54 g |
Interface
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
Operating environment
| Operating temperature (with battery) | -20 °C to +40 °C |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-20 °C to +35 °C for 1 month -20 °C to +30 °C for 6 months |
Features
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth wireless technology) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
Certification & Approvals
| Regulatory |
FMC920-QJIB0: CE/RED, CITC, E-Mark, RCM, REACH, RoHS, TRA, SDPPI (POSTEL), SIRIM QAS, TRA FMC920-QKIB0: Anatel, REACH, RoHS |
