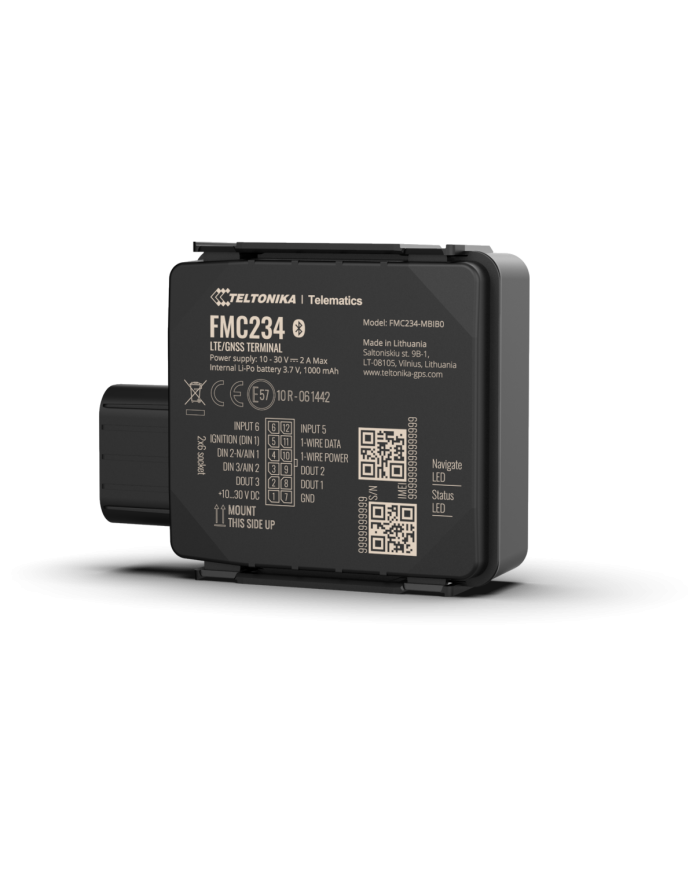

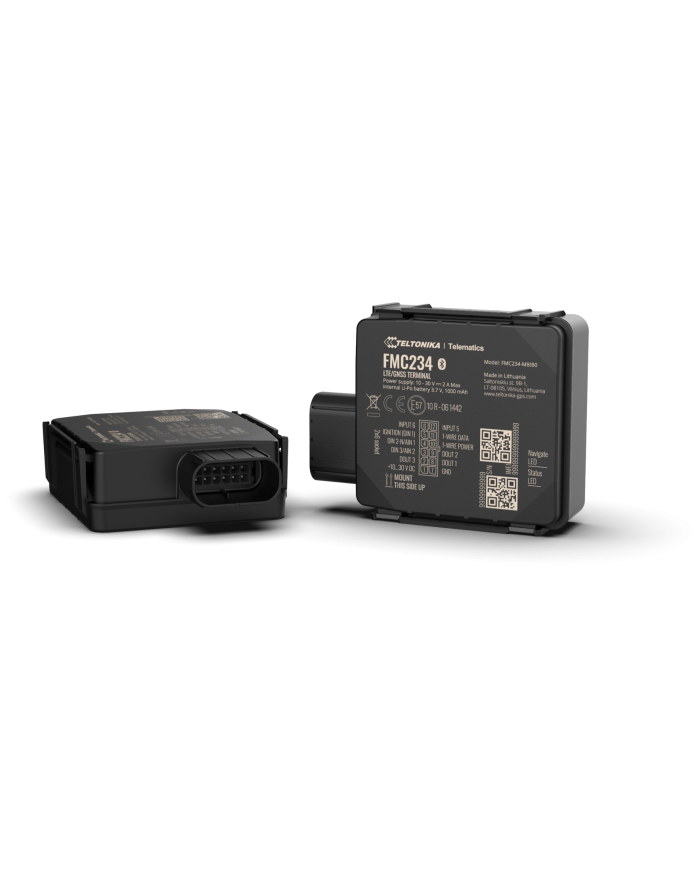

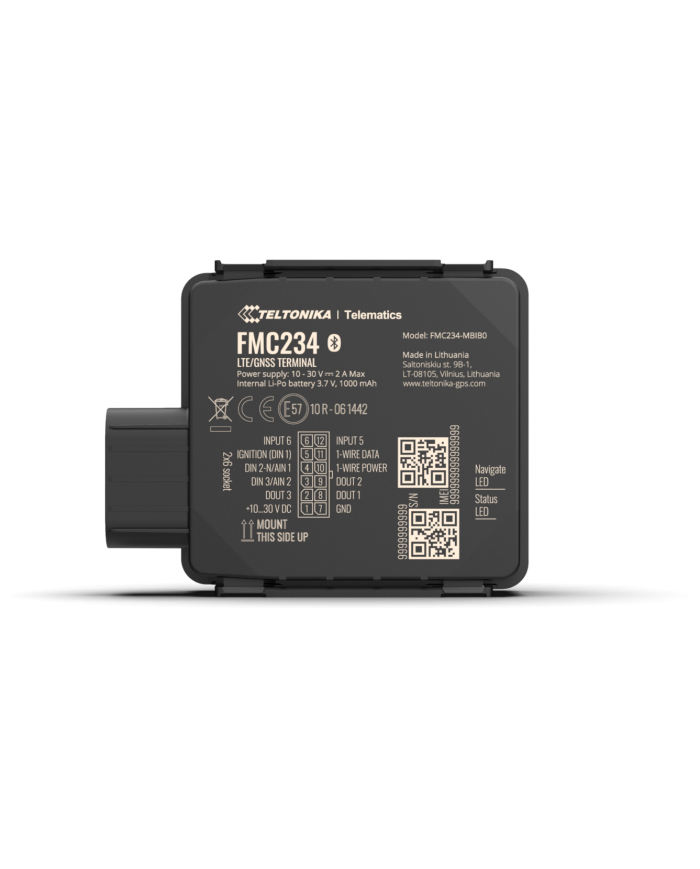

FMC234 Tracker
Ask for price
Water-resistant 4G LTE Cat 1 tracker with high-capacity battery
FMC234 is a tracking terminal with GNSS and GSM connectivity, which is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications, which require the location acquirement of remote objects.
High-capacity battery - Prolonged autonomous usage
IP67 casing - Reliable protection against water and dust
4G Cat 1 - 4G LTE Cat 1 connectivity
Impulse inputs - Preventing unauthorized veahicle use
Description
Product Details
FMC234 with 1000 mAh high-capacity battery, ensures prolonged autonomous usage, when external power is lost or disconnected. It comes equipped with internal GNSS, LTE antennas, configurable digital, analog, negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery. Device also includes integrated possibility to enable Impulse Input for precise fuel flow meter data reading. It is well-suited for applications such as insurance telematics, trailer tracking, stolen vehicle recovery, and construction vehicle monitoring. Additionally, FMC234 tracker has IP67 certified casing with a click-type two-phase closing mechanism, enhancing its usability in challenging environmental conditions.
Perfect for stolen vehicle recovery
Device operation for up to 8 days, even if external power is lost, makes it ideal for recovering stolen vehicles
Prolonged autonomous usage
Large-capacity 1,000 mAh Li-Po internal backup battery for extended device operation time
No additional tools needed
Innovative click-type two-phase closing with no additional tools needed
Protection against dust and water
Robust IP67-rated casing provides trusted protection against dust and resistance to water
PRODUCT SPECIFICATIONS
Module
| Name |
FMC234- MBIB0: MeiG SLM320-E with Teltonika TM2500 FMC234- MCIB0: MeiG SLM320-LA with Teltonika TM2500 |
| Technology | LTE(Cat 1)/2G(GSM/GPRS)/GNSS/BLUETOOTH LE |
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology | LTE Cat 1, GSM |
| 2G bands |
FMC234-MBIB0: GSM: B2/B3/B5/B8 FMC234-MCIB0: GSM: B2/B3/B5/B8 |
| 4G bands |
FMC234-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 FMC234-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40 |
| Data transfer |
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Transmit power |
Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm |
| Data support | SMS (text/data) |
Power
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 1000 mAh Li-Po rechargeable 3.7 V battery (3.7 Wh) |
| Internal fuse | 3 A, 125 V |
| Power consumption |
At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 16 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 33 mA (nominal with no load) At 12V < 2A Max. (with full Load / Peak) |
Bluetooth technology
| Specification | 4.0 + LE sensors |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth LE sensors support |
Physical specification
| Dimensions |
70,5 x 67,0 x 25,6 mm (L x W x H) 85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket) |
| Weight | 91,8 g |
Operating environment
| Operating temperature (without battery) | -20 °C to +85°C |
| Storage temperature (without battery) | -20 °C to +85 °C |
| Operating temperature (with battery) | -20 °C to +60 °C |
| Storage temperature (with battery) | -20 °C to +60 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
Interface
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| CAN Adapter Inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM or eSIM |
| Memory | 128MB internal flash memory |
Features
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth wireless technology), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
Certification & Approvals
| Regulatory | CE RED, E-Mark, Pulse 5A, RoHS, IP Rating |
