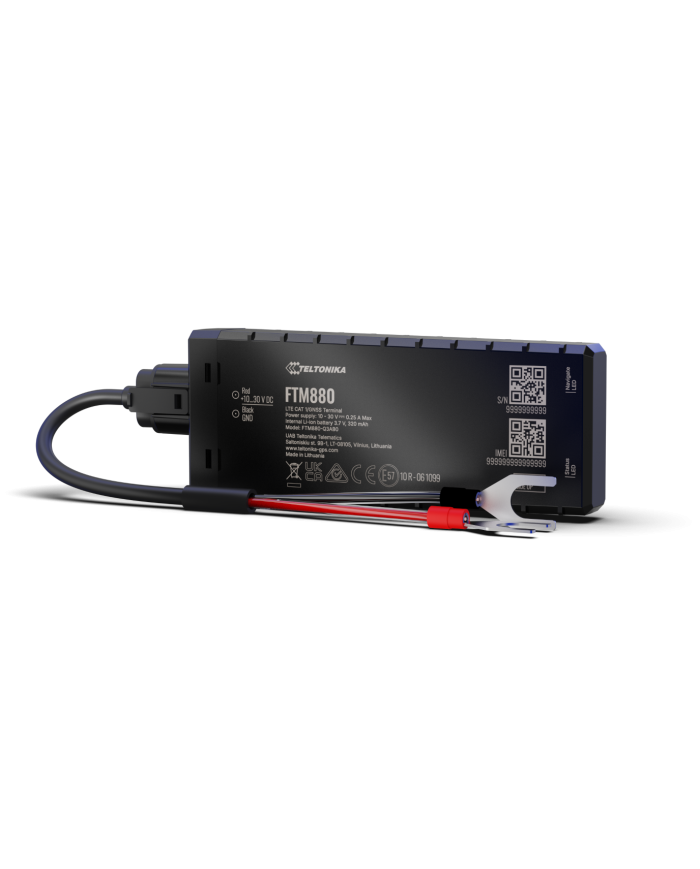

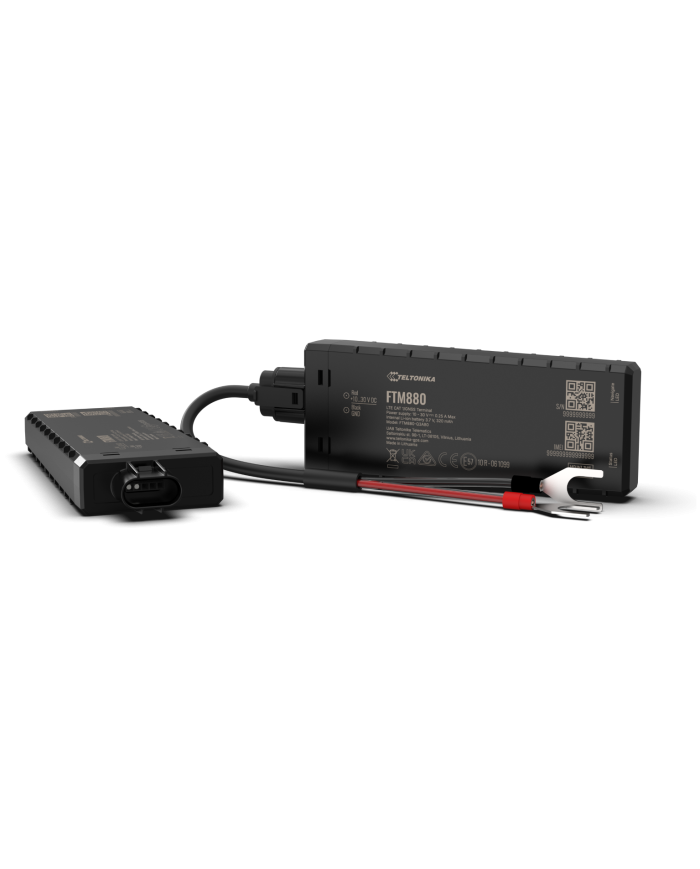

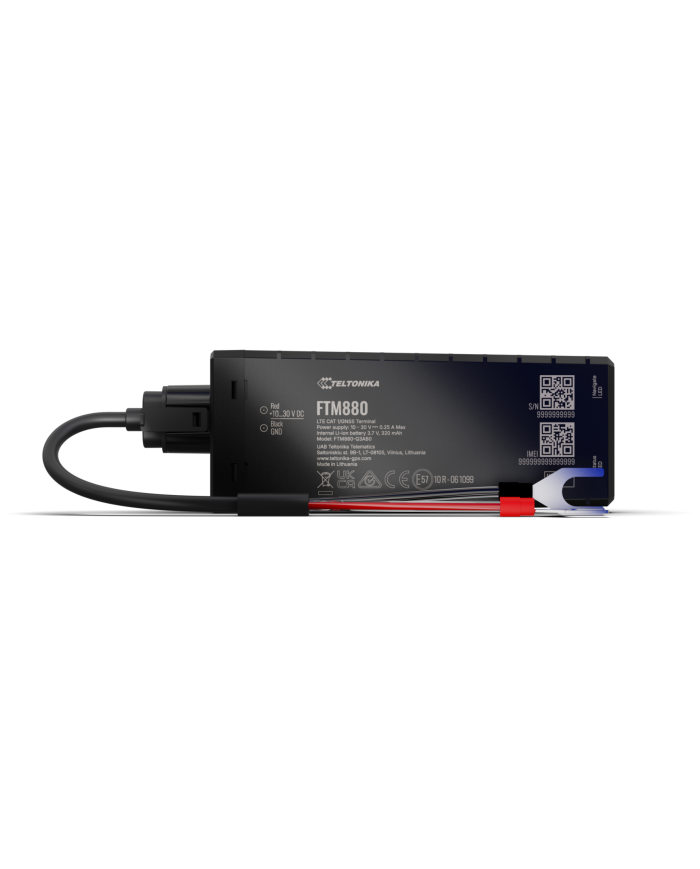

FTM880 Tracker
Ask for price
Next-generation 4G LTE Cat M1 battery-mounted vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
FT platform - Fleet Telematics (FT) platform offers advanced firmware and hardware, taking your tracking experience to the next level
IP69K waterproof casing - The ultimate protection against dust, high pressure water, and steam
Higher GNSS accuracy - More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services
Longer performance, slower drainage - Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage
Description
Product Details
PRODUCT SPECIFICATIONS
Product
| Model name |
FTM880-Q3AB0 FTM880-Q2AB0 |
Module
| Model name |
FTM880-Q3AB0: Quectel BG95-M3 with AG3335 FTM880-Q2AB0: Quectel BG95-M1 with AG3335 |
| Technology |
FTM880-Q3AB0: LTE CAT M1/NB-IoT/GPRS/GNSS FTM880-Q2AB0: LTE CAT M1/GPRS/GNSS |
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU |
| Receiver | L1: 75 channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 1.8 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology |
FTM880-Q3AB0: LTE CAT M1/NB-IoT/GPRS/GNSS FTM880-Q2AB0: LTE CAT M1/GPRS/GNSS |
| 2G bands |
FTM880-Q3AB0: GSM: B2/B3/B5/B8 FTM880-Q2AB0: GSM: B2/B3/B5/B8 |
| 4G LTE bands |
FTM880-Q3AB0: LTE FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 LTE-TDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 FTM880-Q2AB0: LTE FDD (CAT M1 Only): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Data transfer |
LTE FDD (CAT M1): Max. 588 Kbps (DL) / Max. 1119 Kbps (UL) LTE TDD (CAT NB2): Max. 127 Kbps (DL) / Max. 158.5 Kbps (UL) GSM (GPRS): Max. 107 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power |
Class 4 for GSM850/900: 33±2dBm Class 1 for GSM1800/1900: 30±2dBm Class 3 for LTE-TDD: 20±2dBm Class 3 for LTE-FDD: 20±2dBm |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP) |
Data codec
| Codec support | Codec 8 Extended |
Power
| Input voltage range | 10-30 V DC |
| Internal Back-up battery | 320 mAh Li-Ion battery 3.7V (1.18 Wh) |
| Internal fuse | 3 A |
| Power consumption |
At 12V < 24.523mA Normal mode At 12V < 5.601mA Online Deep Sleep mode At 12V < 2.552mA Deep Sleep mode At 12V < 0.599mA Power off Sleep |
Physical specification
| Dimensions | 118 x 48 x 18.5 mm (L x W x H) |
| Weight | 118 g |
Operating environment
| Operating temperature (without battery) | -30 °C to +85 °C |
| Storage temperature (without battery) | -30 °C to +85 °C |
| Operating temperature (with battery) | 0 °C to +45 °C |
| Storage temperature (with battery) |
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP69K |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 1 year |
Interface
| Connection | U-Type cable |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Type-C |
| LED indication | 2 status LED lights |
| SIM | Nano-SIM |
| Memory | 128MB internal flash memory |
Features
| Sensors | Accelerometer |
| Scenarios | Crash Detection, Over Speeding, Trip, Odometer, Eco Driving, Excessive idling, Network Jamming Detection, Unplug Detection, Auto Geofence, Towing Detection, Static Navigation, Custom Scenarios |
| Sleep modes | Deep Sleep, Online Deep Sleep, Power Off Sleep |
| Configuration and firmware update | FOTA WEB, Teltonika Configuration Tool (TCT) |
| SMS | Configuration, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Ignition detection | Accelerometer, External Power Voltage |
Certification & Approvals
| Regulatory |
FTM880-Q3AB0: CE/RED, E-Mark, RCM, UKCA FTM880-Q2AB0: IC, FCC, AT&T, PTCRB |
