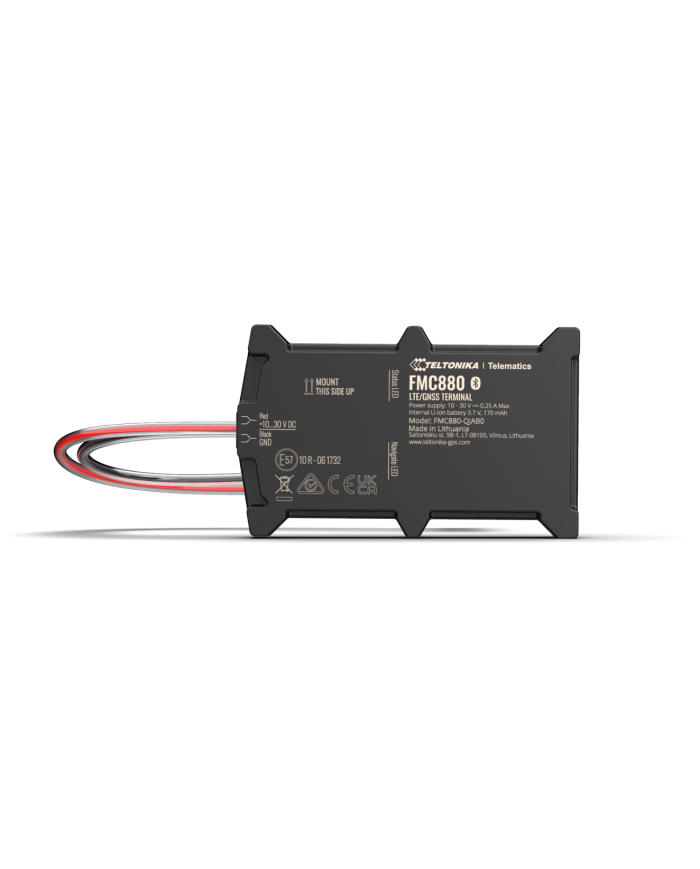

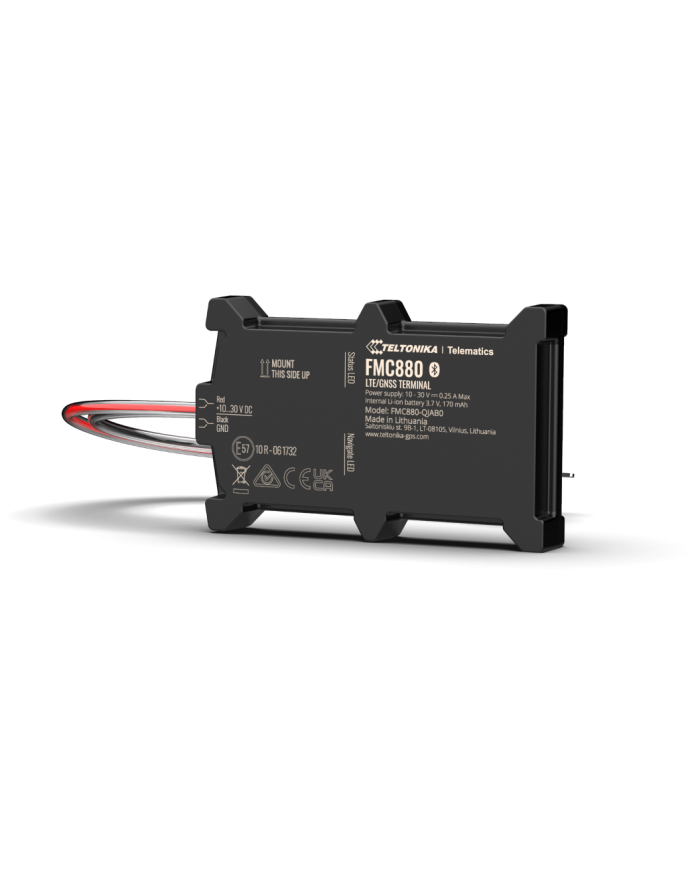

FMC880 Tracker
Ask for price
Water-resistant high GNSS precision battery-mounted 4G LTE Cat 1 tracker
FMC880 is a tracking terminal with GNSS,GSM and LTE CAT 1 connectivity, which is able to collect device coordinates and transfer them via GSM/LTE CAT 1 network to the server. This device is perfectly suitable for applications, which need location acquirement of remote objects.
Improved GNSS tracking accuracy - Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix
Clamp connectors - Allows installing tracker in a few minutes
Bluetooth - Bluetooth for external devices and Low Energy sensors
Crash detection - Crash detection functionality working according accelerometer data
Description
Product Details
FMx8 series devices are EASY to use and FAST to install. The number “8” brings everything together in one place and stands out with its simplicity of basic tracking. Teltonika FMC880 tracker is waterproof device with 4G LTE Cat M1 and Bluetooth connectivity. An extremely fast and easy installation allows connecting device in a few minutes! No specific knowledge or engineers are required for installation. This vehicle GPS trackers has a higher IP65 rating and a slim design which is essential for under-bonnet installation.
Thanks to that, FMC880 tracker perfectly suits for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other industries, where simple integration is a must. It is a perfect solution for real time monitoring, specially for beginners and those, who are looking for new opportunities to expand their businesses. FMC880 device has a built-in accelerometer, which provides accurate crash trace data. This tracker also supports various Bluetooth Low Energy sensors, beacons, firmware and configuration update via Bluetooth. All of that increase the number of possible use scenarios in any market. It is quick to install, easy to use and ready to start tracking in minutes!
Improved GNSS tracking accuracy
Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix
Fast installation

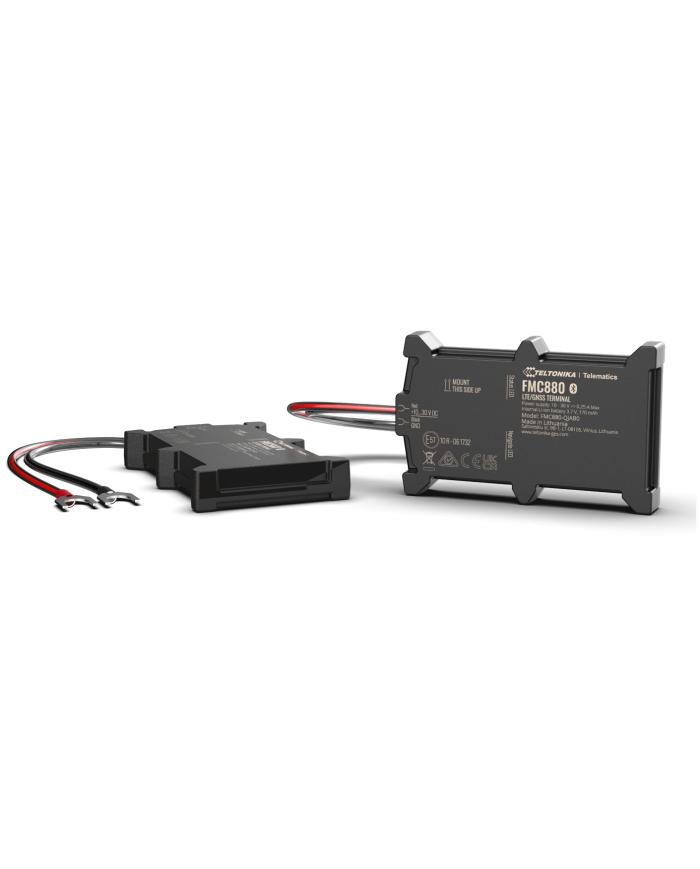

With the U-type cable, virtually anyone can mount the device in 5 minutes or less directly on a car battery
Robust casing
IP65-rated casing is designed to withstand poor weather conditions
Extended product usage scenarios
Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
PRODUCT SPECIFICATIONS
Module
| Name |
FMC880-QJAB0: Quectel EG915U-EU with AG3335 FMC880-QKAB0: Quectel EG915U-LA with AG3335 |
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH LE |
GNSS*
| GNSS |
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS L5: GPS, GALILEO, BEIDOU |
| Receiver |
L1: 75 channel L5: 60 channel |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 1.5 m CEP |
| Velocity accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| *Optional modes available with custom firmware applications, for more information contact your sales manager |
Cellular
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands |
FMC880-QJAB0: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 FMC880-QKAB0: LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66 |
| Data transfer |
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power |
Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM Bluetooth: 5.54±2dBM Bluetooth LE: -4.26±2dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT) |
Power
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V |
| Internal fuse | 3 A, 125 V |
Bluetooth LE
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth LE sensors support |
Physical specification
| Dimensions | 92.5 x 57.6 x 14 mm (L x W x H) |
| Weight | 63 g |
Operating environment
| Operating temperature (without battery) | -40 °C to +85°C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating temperature (with battery) | 0 °C to +40 °C |
| Storage temperature (with battery) | -20 °C to +45 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
Interface
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 USB Micro B |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
Features
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, Teltonika Configurator (USB, Bluetooth wireless technology) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
Certification & Approvals
| Regulatory | E-Mark, RoHS, REACH, RCM, Declaration of IMEI assignment, ICASA, CITC, IMDA |
