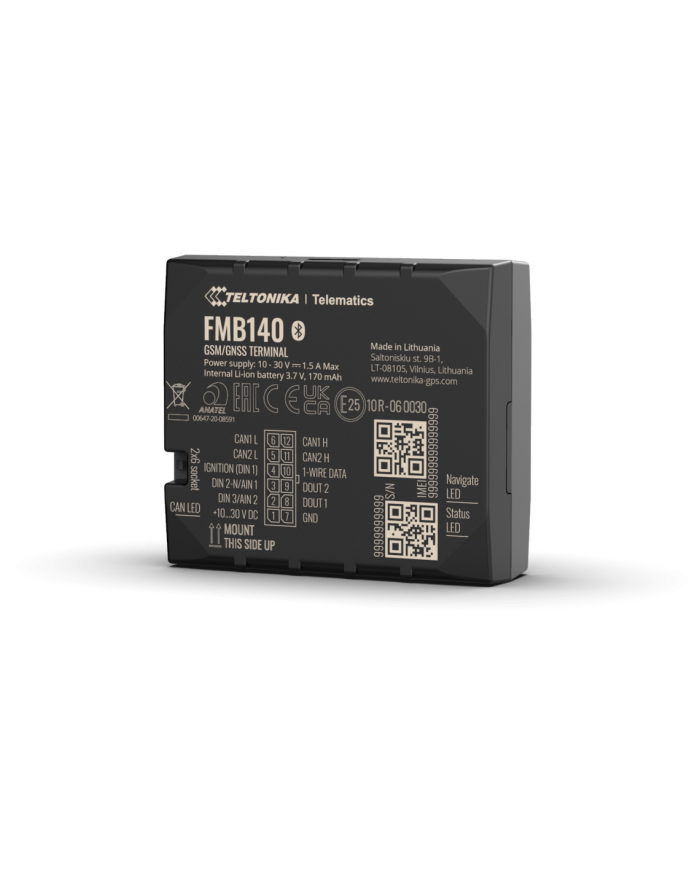

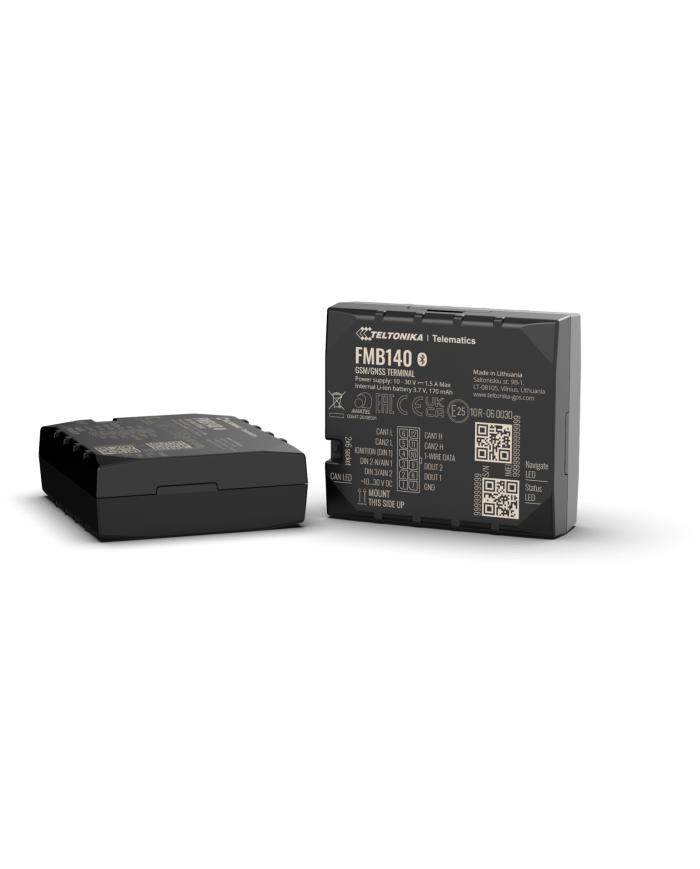

FMB140 Tracker
Ask for price
2G tracker with integrated CAN reader
FMB140 is a tracking terminal with GNSS and GSM connectivity, which is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications, which require the location acquirement of remote objects.
Built-in CAN bus data reading chip - Reading CAN data from light & electric vehicles, trucks, buses and special machinery
Helpful wiring guides - Efficient connection with wiring guides for each supported vehicle
Eco driving scenario - Achieve efficient fuel consumption, prolong vehicle life and increase road safety
Extended product usage scenarios - Connect Bluetooth LE-based external devices, Low Energy beacons and sensors to monitor temperature, humidity and movement
Description
Product Details
FMB140 is an ADVANCED GSM/GNSS/BLUETOOTH LE tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses and special machinery. Depending on exact software version FMB140 can be used in advanced applications as heavy logistics, delivery services, utility transport. 2 options available to fulfill any business demands - LV-CAN200 option and ALL-CAN300 option.
PRODUCT SPECIFICATIONS
Module
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH LE |
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 2.5 CEP |
| Velocity accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
Power
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
Bluetooth technology
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
Physical specification
| Dimensions | 65 x 56.6 x 20.6 mm (L x W x H) |
| Weight | 55 g |
Interface
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| CAN interfaces | 2 |
| 1-Wire | 1 (1-Wire data) |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 3 status LED lights |
| SIM | Micro-SIM or eSIM |
| Memory | 128MB internal flash memory |
Operating environment
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | -0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
Features
| CAN Data | Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM |
Certification & Approvals
| Regulatory | Anatel, CE/RED, E-Mark, EAC, RoHS, REACH |
