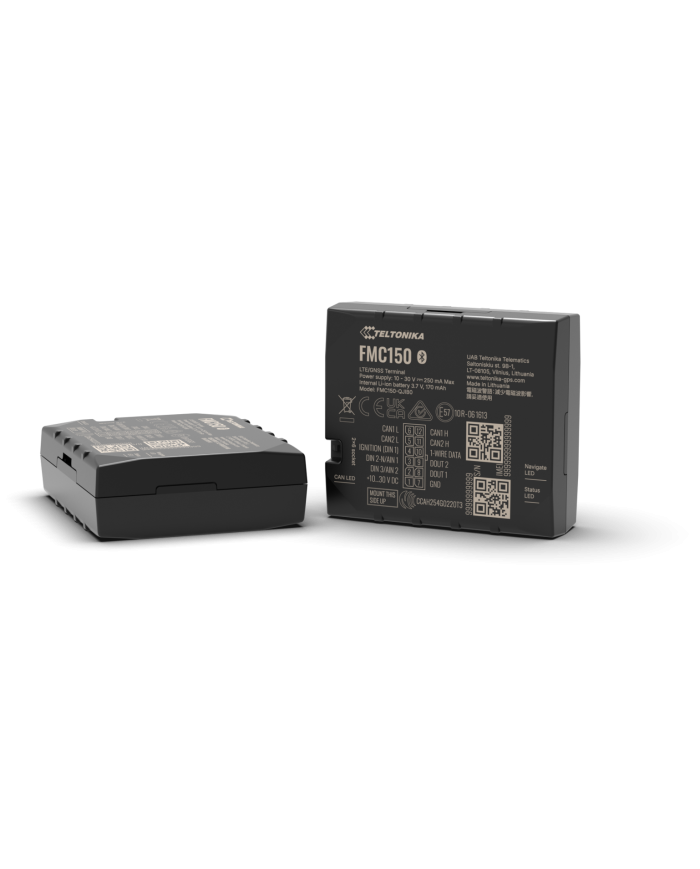

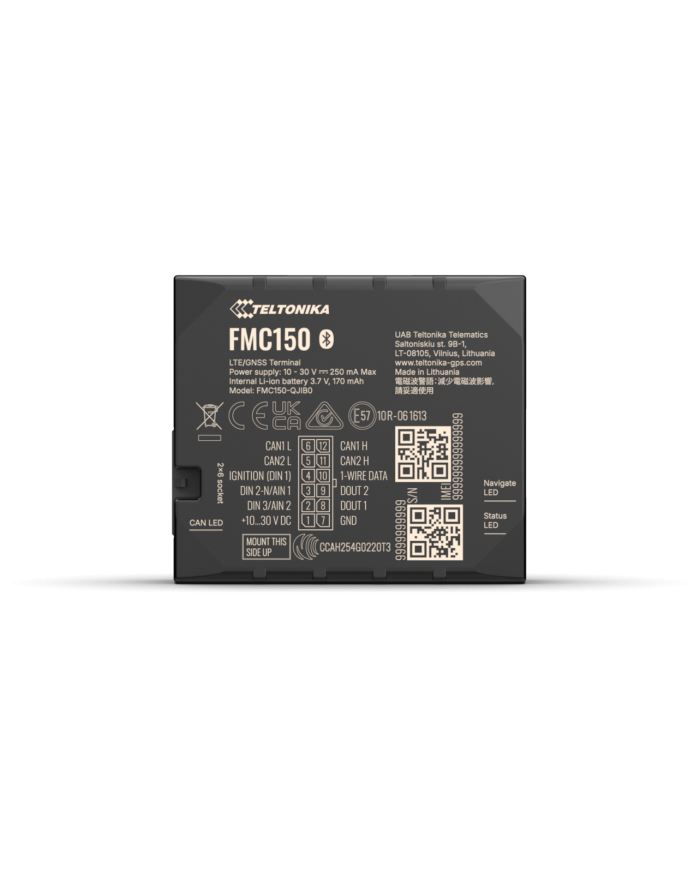

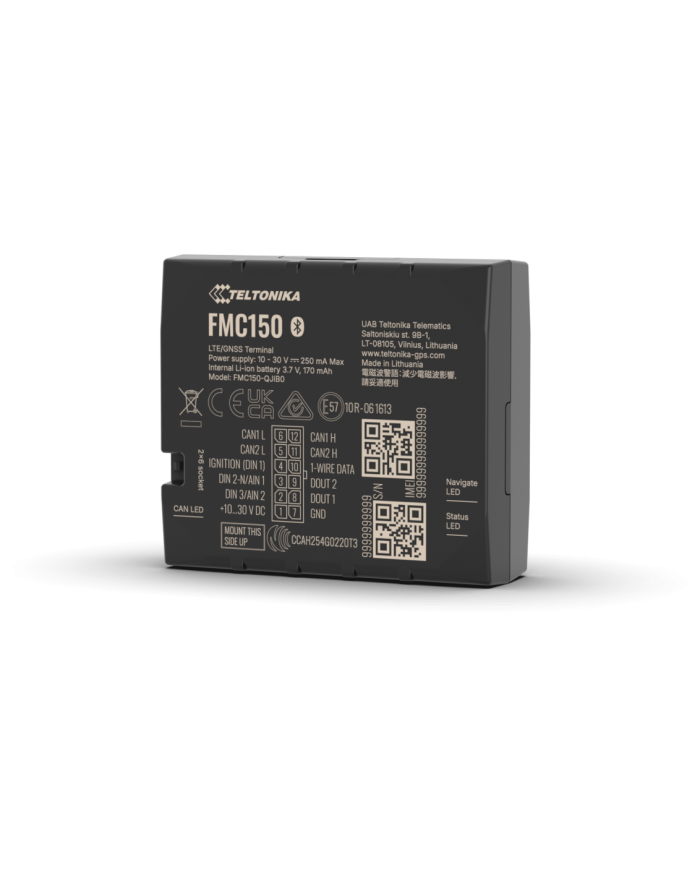

FMC150 Tracker
Ask for price
Advanced 4G LTE Cat 1 GPS tracker with integrated CAN data processor
FMC150 is a tracking terminal with GNSS and GSM connectivity, which is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications, which require the location acquirement of remote objects.
4G Cat 1 - Reliable 4G (LTE Cat 1) connection with fallback 2G (GSM) network
CAN data for EV vehicles - CAN module allows data reading from electric vehicles (EV)
Integrated CAN data processor - Allows to monitor real fuel consumption and level, full mileage, engine temperature and more
Negative input - Allows easier installation of accessories
Description
Product Details
FMC150 is an ADVANCED 4G CAT 1/GSM/GNSS/BLUETOOTH LE tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks and buses. With the current software version FMC150 can be used in advanced applications as logistics, delivery services, utility transport, car sharing and more.
For now, one SW option is available to fulfil your business demands: a default FMC150 software version with LV-CAN parameters, including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, electric vehicles, trucks and buses.
Built-in CAN bus data reading chip
Reading CAN data from light & electric vehicles, trucks, buses and special machinery
Supporting over 100 CAN parameters
Extensive data collection enables detailed analysis of vehicle operations, facilitating effective maintenance and performance optimisation
CAN data reading from EVs
Bringing new value and expanding usage scenarios with more than 100 supported vehicles in the EV market
Supported vehicle and data list
Know in advance what vehicle parameters are available to optimise your fleet operations
PRODUCT SPECIFICATIONS
Module
| Name |
FMC150-QJIB0: Quectel EG915U-EU with Teltonika TM2500 FMC150-QKIB0: Quectel EG915U-LA with Teltonika TM2500 |
| Technology | LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH LE |
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 2.5 CEP |
| Velocity accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology | LTE CAT 1, GSM |
| 2G bands |
FMC150-QJIB0: GSM: B2/B3/B5/B8 FMC150-QKIB0: GSM: B2/B3/B5/B8 |
| 4G bands |
FMC150-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 FMC150-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
Power
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
Bluetooth technology
| Specification | 4.0 + LE |
| Supported periprherials | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth LE sensors support |
Physical specification
| Dimensions | 65 x 56.6 x 20.6 mm (L x W x H) |
| Weight | 55 g |
Interface
| Digital Inputs |
FMC150-QJIB0: 3 FMC150-QKIB0: 2 |
| Negative Inputs |
FMC150-QJIB0: 1 (Digital Input 2) FMC150-QKIB0: - |
| Impulse Inputs |
FMC150-QJIB0: 2 (Digital Input 1, Digital Input 2) FMC150-QKIB0: 1 (Digital Input 1) |
| Digital Outputs |
FMC150-QJIBO: 2 FMC150-QKIBO: 3 |
| Analog Inputs |
FMC150-QJIB0: 2 FMC150-QKIB0: 1 |
| CAN interfaces | 2 |
| 1-Wire | 1 (1-Wire data) |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 3 status LED lights |
| SIM | Micro-SIM or eSIM |
| Memory | 128 MB internal flash memory |
Operating environment
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | -0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
Features
| CAN Data | Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth wireless technology), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM |
Certification & Approvals
| Regulatory | CE/RED, E-Mark, RCM, RoHS, REACH |
