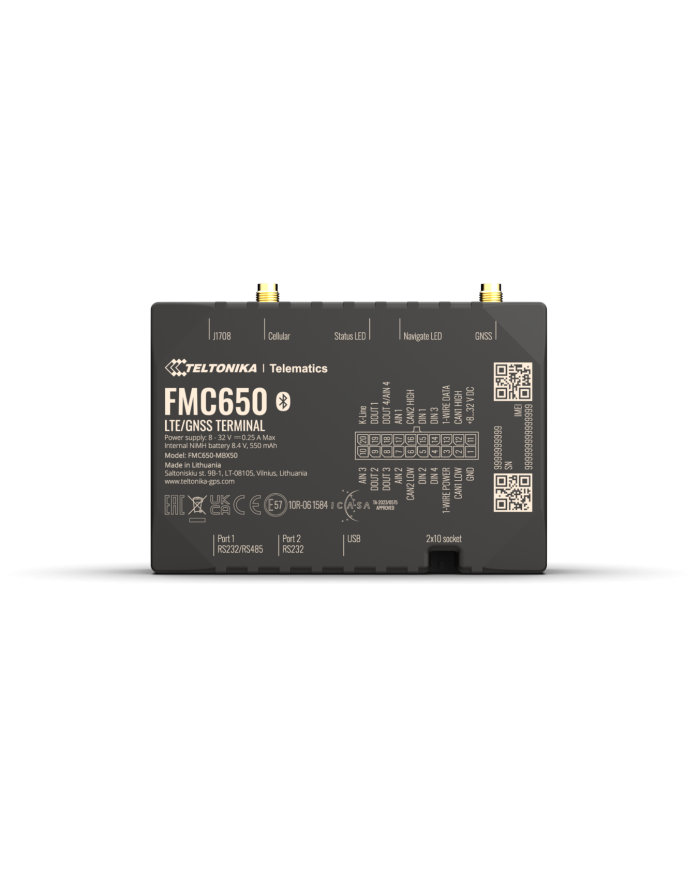

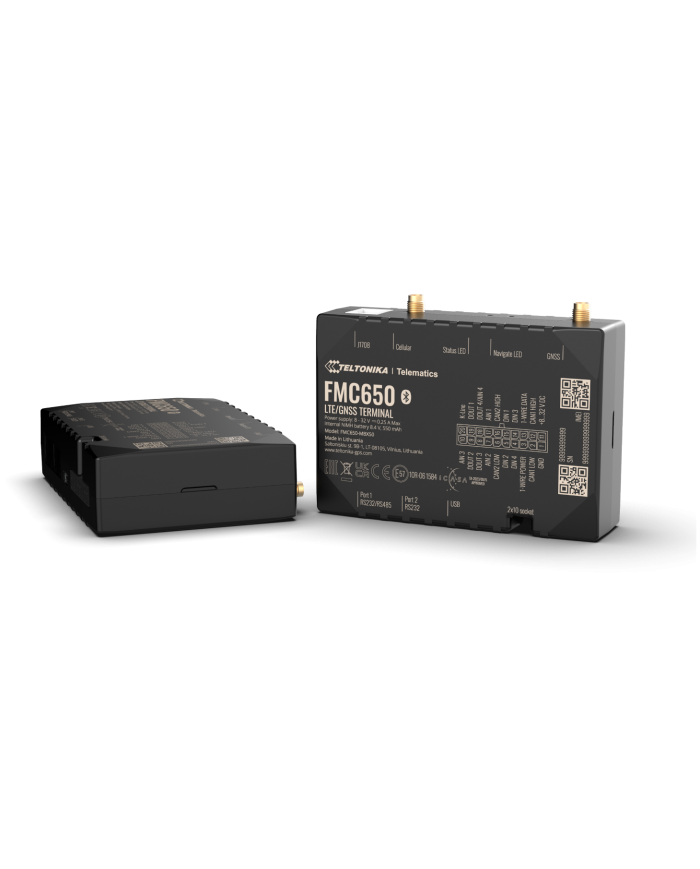

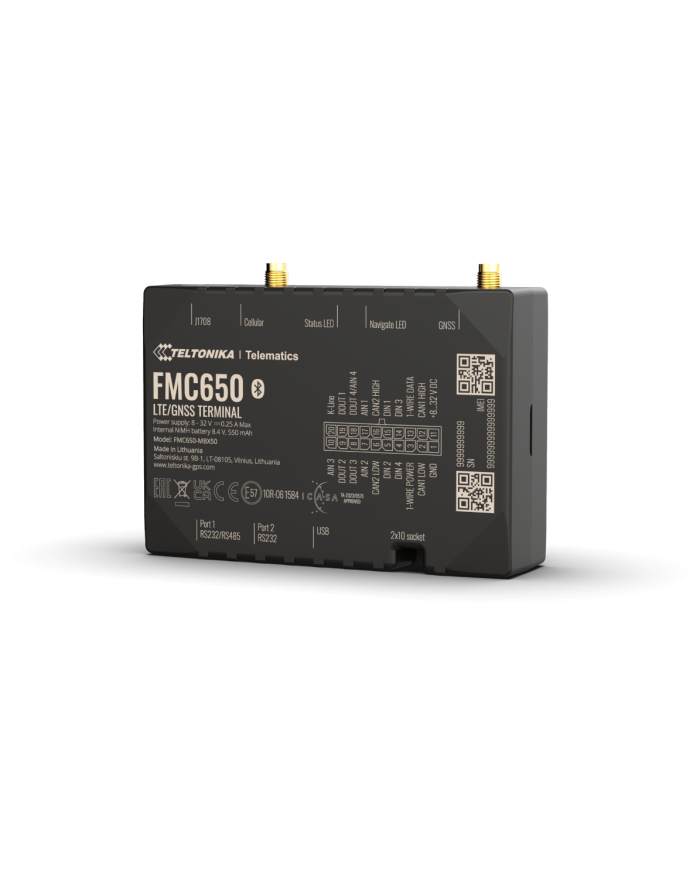

FMC650 Tracker
Ask for price
4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
Reliable global coverage and separate GNSS module - Reliable 4G connection with fallback to 2G network ensures wide-ranging coverage of your fleet management needs. This model uses a separate module to gather GNSS data and has dual-channel, L1 + L5 support
Remote download of tachograph files and live data - Tachograph live data reading via K-Line, Tacho CAN or FMS connections for everyday driver management and fleet efficiency
CAN data reading from heavy vehicles and special machinery - Read J1939 data that includes standard CAN FMS from heavy vehicles like trucks and raw J1939 data from special machinery, such as construction cranes or electric buses. Possibility to connect to CAN line with multiple nodes
Connecting external devices - 2x RS232 and 1x RS485 serial communication interfaces for connecting external devices, such as thermographs, sensors, RFID readers and more
Description
Product Details
Teltonika FMC650 is a direct successor to current most popular 4G PROFESSIONAL lineup device - FMC640. FMC650 has 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. Device equipped with GNSS and LTE modules, external GNSS and LTE antennas. Separate GNSS module improves the accuracy of the track, making FMC650 more suitable for free flow electronic tolling system integration. Compared to FMC640 - FMC650 has a new processor that improves the devices computation power along with increased device internal memory it can be tailored to more specific use cases. Switchable CAN terminators that will allow you to use the device in CAN network with numerous nodes. Lastly, it can be powered via USB for easier configuration process. All the features that are supported by FMC640 is also supported by FMC650, therefore it will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM or eSIM compatibility. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.
PRODUCT SPECIFICATIONS
Product
| Model name | FMC650-MBX50 |
Module
| Name | MeiG SLM320-PE2C |
| Technology | LTE(Cat 1)/ 2G(GSM/GPRS) |
GNSS
| Module Name | Airoha AG3335MB |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Receiver | L1 and L5 dual-band GNSS receiver |
| Tracking sensitivity | -165 dBm |
| Position accuracy | < 2.5 CEP |
| Hot start | 1 s |
| Warm start | < 25 s |
| Cold start | < 32 s |
Cellular
| Technology | LTE Cat 1, GSM |
| 2G bands | B2/B3/B5/B8 |
| 4G bands |
LTE-FDD:B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 |
| Data transfer |
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
Power
| Input voltage range | 8 - 32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection |
| Internal Back-up battery | 550 mAh Ni-Mh, 8,4 V battery |
| 2 W max. Current consumption at 12 V |
At 12V < 4 mA (Deep Sleep) At 12V < 11 mA (Online Deep Sleep) At 12V < 32 mA (GPS Sleep) At 12V < 45 mA (nominal with no load) At 12V < 0.25 A Max. (with full Load / Peak) |
| 2 W max. Current consumption at 24 V |
At 24V < 2,9 mA (Deep Sleep) At 24V < 7 mA (Online Deep Sleep) At 24V < 17 mA (GPS Sleep) At 24V < 35 mA (nominal with no load) |
Bluetooth technology
| Name | Blue NRG232 |
| Specification | 5.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Universal BLUETOOTH LE sensors support |
Physical specification
| Dimension | 104,1 x 76,8 x 31,5 mm (L x W x H) |
| Weight | 197 g |
Operating environment
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery storage temperature | -20 °C to +45°C |
Interface
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| Analog Inputs | 4 |
| 1-Wire | 1 |
| RS232 | 2 |
| RS485 | 1 |
| CAN J1939 | 2 |
| J1708 | 1 |
| K-line | 1 |
| GNSS antenna | External High Gain (L1+L5) |
| GSM antenna | External High Gain |
| USB | 2.0 Mini-USB - device can be powered by USB for easier device configuration |
| LED indication | 2 status LED lights |
| SIM | 2x SIM Card (Dual-SIM) or 1x eSIM |
| Memory | 16 MB internal flash memory and external Micro SD card up to 32GB |
| Switchable CAN terminators | Supported on CAN1 and CAN2 lines |
Features
| Movement detection | Accelerometer |
| Scenarios | Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification |
| Functionalities | Auto Geofencing, Manual Geofencing, Trip detection, Odometer, DDD download and Tacho online data, Offline tracking |
| Supported peripherals | Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/ TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor |
| Ignition detection | Digital Input, Accelerometer, External Power Voltage |
| RS485 input voltage range on A or B pin (common-mode voltage) | -7V to +12V |
Certification & Approvals
| Regulatory | CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC |
