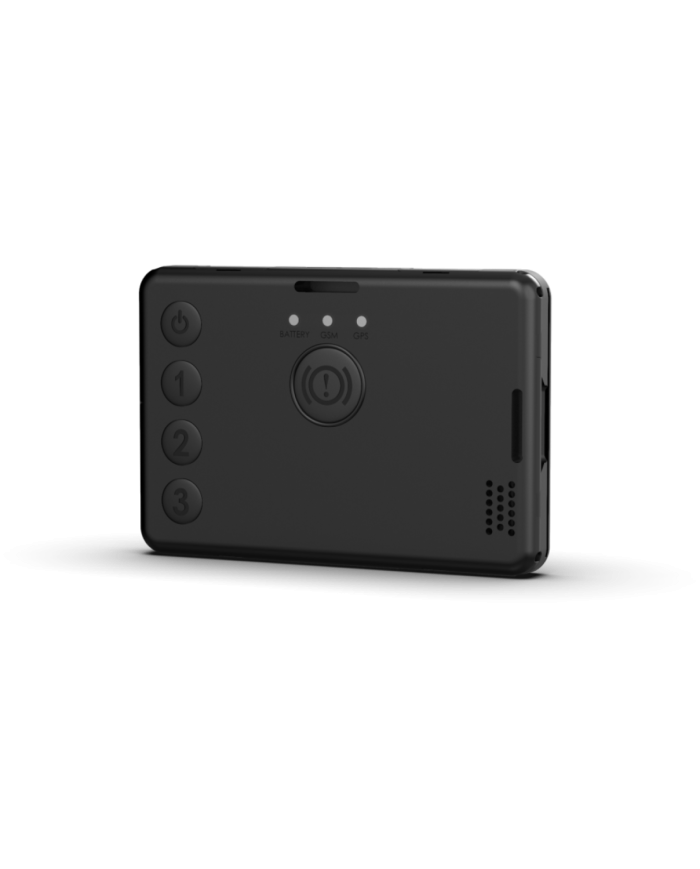

GH5200 Tracker
Ask for price
Autonomous 2G tracker for personal security and workforce management
Two-way voice communication for emergency situations - Supporting up to 5 call/SMS recipients allows to transmit a text message or initiate a call instantly when immediate help is needed
Configurable buttons for personalised usage scenarios - 5 programmable buttons can be used for amber alert, action-on-call, on-demand tracking and many other events
Built-in man-down, alarm & no-movement scenarios - Special pre-programmed scenarios to ensure personal safety of lone workers and vulnerable people

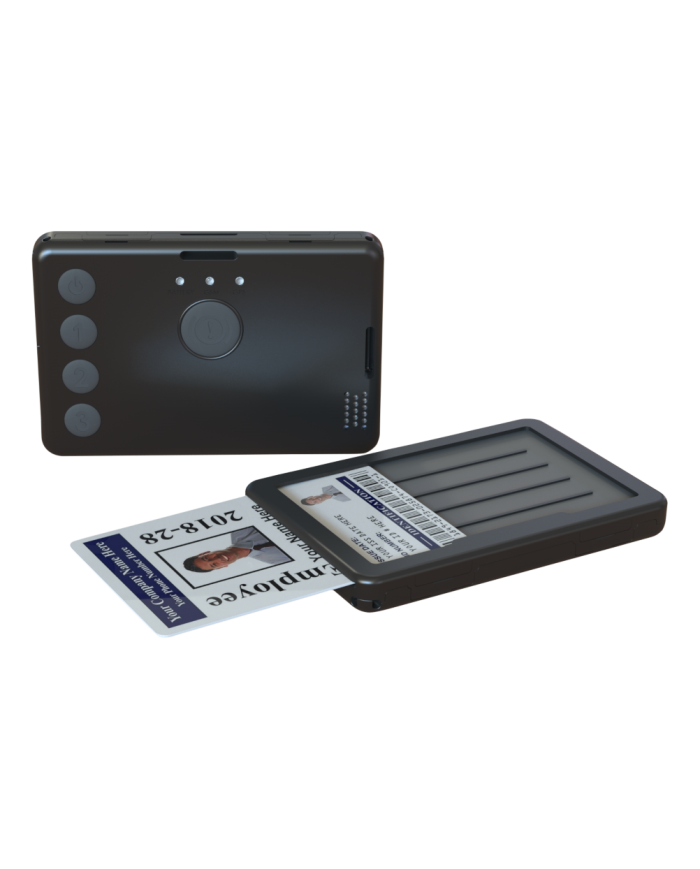

Small in size & comfortable to wear - Slim design for convenient everyday use as a ID card holder that can be put on a neck or a belt
Description
Product Details
This autonomous tracker is designed for everyone who performs activity without close or direct supervision of others, for example, healthcare, maintenance, social and lone workers or employees working out of standard working hours. The device acts as a solution to ensure social distancing whilst collecting data on workers’ actions over the working day. Strong battery, High-quality voice communication for emergencies, five programmable buttons, man-down and no movement scenarios are among the key functions that make this device most wanted in the market.
PRODUCT SPECIFICATIONS
Module
| Name | Teltonika TM2500 |
| Technology | 2G (GSM/GPRS)/GNSS/BLUETOOTH LE |
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS |
| Receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology | GSM / GPRS |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS: Max 107 Kbps (DL) / Max 85.6 Kbps (UL) |
| Data support | SMS (text/data) |
Power
| Charging voltage | 5V DC with over-voltage protection |
| Internal Back-up battery | 1050 mAh rechargeable Li-Ion battery, 3.7 V, 3.885 Wh |
Bluetooth technology
| Specification | 4.0 + LE |
Physical specification
| Dimensions | 95 x 64 x 11 mm (L x W x H) |
| Weight | 80 g |
Operating environment
| Operating humidity | under 85% non-condensing |
| Ingress Protection Rating | IP30 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +58 °C |
| Battery storage temperature |
-20 °C to +60°C for 1 month -5 °C to +30°C for 6 months |
Interface
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 3 LED indicators |
| Buttons | 5 configurable buttons |
| SIM | Micro-SIM |
| Memory | 128 MB internal flash memory |
Features
| Sensors | Accelerometer |
| Scenarios | Home Zone, Proximity Detection, Over speeding, Man-down, Alarm, Auto Geofence, Manual Geofence, Action on call, No-Movement Event, on Demand Tracking |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep, Low Power Mode |
| Configuration and firmware update | FOTA WEB (cloud based solution), Teltonika Configurator (USB, Bluetooth wireless technology), Configuration through SMS |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
Certification & Approvals
| Regulatory | CE/RED, EAC, Anatel, UKCA, RoHS, REACH |
