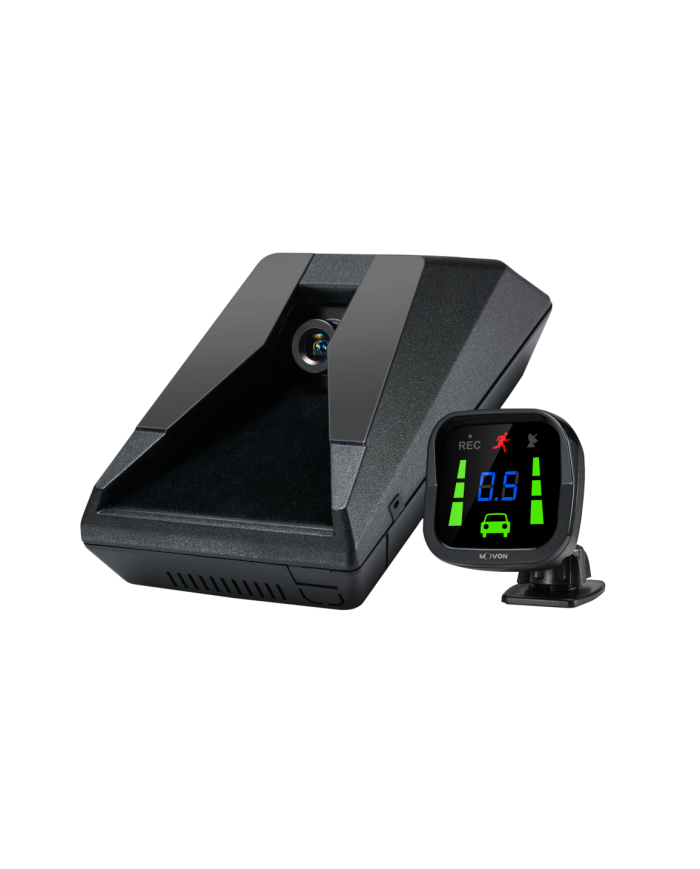

ADAS vehicle camera
Ask for price
FMx6 series GPS tracker and ADAS camera is a solution designed to avoid collisions and accidents with visual monitoring functionality
Video & photo by request - Request photos or videos from ADAS or set periodic image sending to the server to track and analyse events in real time as well as monitor visual data, including pictures and videos, of events.
Contactless CAN bus connectivity - Many vehicles are available in database to use CAN bus for turn signals, brake and speed sense, etc. This way, a much faster installation is at hand for ADAS solution users.
Periodic photo sending - Set periodic image sending to the server. Fleet managers and dispatchers will have the latest data and access to potential collisions or common mistakes on the road.
Video recording - For better investigation of different events you can request video and have full information what has happened before, during and after all events you are interested in.
Description
Product Details
The ADAS is an advanced driver safety system designed to save lives, increase awareness of bad driving habits & record driving statistics (with video) for fleet management users and conventional drivers alike. Together with Teltonika’s FMX6 trackers, all collected information including ADAS IO and can be forwarded to the server of choice even the video and photo requests or even event triggers which can occur when accidents happen.
Teltonika’s FMX125 & FMX225 supports ADAS IO information ONLY, image and video requests are not supported for FMX125 & FMX225.
PRODUCT SPECIFICATIONS
Suitable for
| Supported by |
FMC650*, FMB125, FMC125, FMB225, FMC225 *Photos/videos available *For connection to FMC650 device, cable is included in the box. |
Technical data
| Camera resolution | 1280 x 720 (HD) |
| Diagonal field of view | 60° |
| Horizontal field of view | 52° |
| Vertical field of view | 30° |
| SD card | 16 GB (included) up to 4 hours of video footage (max. 128 GB up to 85 hours of video footage) |
| Video encoding | H264 |
Physical specification
| Dimensions | 80 x 120 x 50 mm |
Power
| Input voltage range | 9 - 36 V |
Operating environment
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -40 °C to +85 ° |
| Operating humidity | Max 90 % |
Interface
| USB | USB 2.0 (for calibration) |
| CAN | CAN 2.0 (car signal - Left/Right, Speed, RPM, Brake) |
| RS232 | Indicator TX/RX (for communication with FMx125,FMX225,FMX640 devices) |
Features
| Photo/Video | Using FMC650 you can requrest photo video from ADAS, or set periodical image sending to the server |
| PCW (pedestrian collision warning) | Notifies driver of any pedestrians, bicycles or motorcycles ahead |
| LDW (lane departure warning) | Helps to regain direction if the driver unintentionally departs lanes |
| FCW (forward collision warning) | Sends warning alerts if a crash is imminent to assist the driver in maintaining a safe traveling distance |
| FPW (forward proximity warning) | Notifies the driver if the vehicle moves forward while another vehicle is in the detection range, which can be set up at 1 m, 2 m, 3 m |
| FVSA (front vehicle start alarm) | Notifies the driver if the front vehicle started moving forward from 0 speed without the vehicle moving within 2 s |
| SDA (safety distance alert) | Attracts the driver’s attention to keep the safe distance ahead by warning the driver (active from 30 km/h) |
| SLR (speed limit recognition) | Recognizes speed limit signs and provides warnings for over speed |
| DVR (digital video recorder) | Records scenes as HD resolutions into SD card before and after an accident (every minute in a loop) |
Certification & Approvals
| Certificates | E-Mark, ECE R130, ECE R118, FCC Part 15, 56-3 EMC, KC ( KN 41 ), MOLIT No. 2016-1053 [Annex 12 ], Euro NCAP Test Protocol - AEB VRU, JT/T 883, GB/T 33577, MOT Directive no. 142 |
