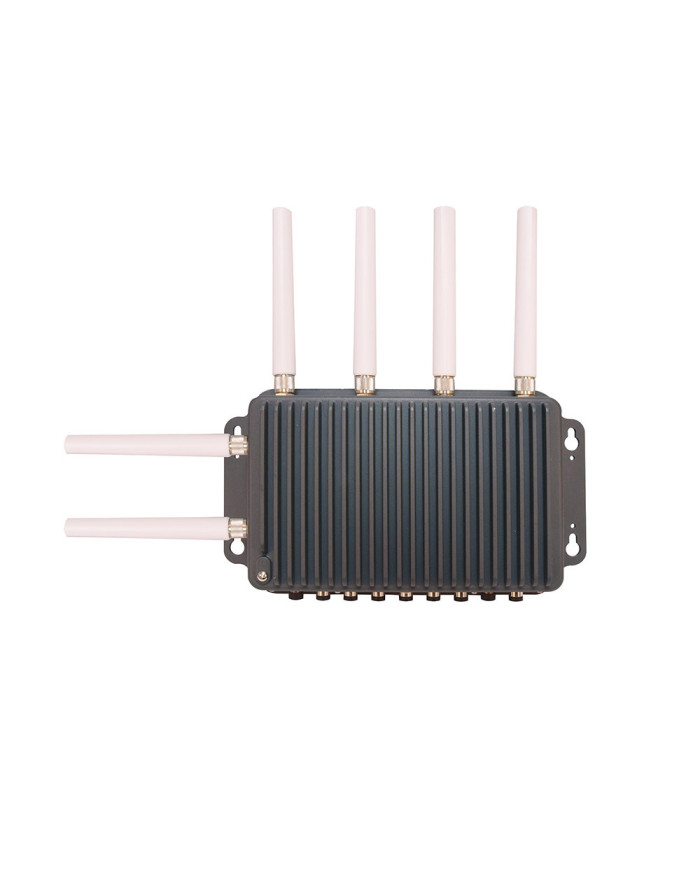

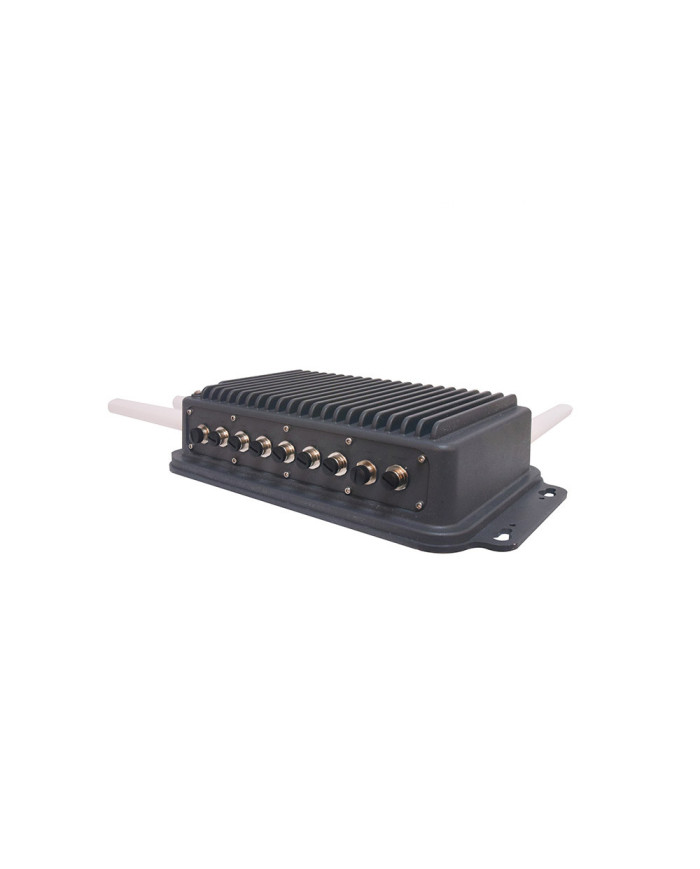

ISD-O370 Gateway
Ask for price
IP67 rugged 5G edge network appliance
- Fanless design compliant with IP67 and MIL-STD-810G
- Intel Atom C3000 extended temperature CPU (Denverton)
- 2x DDR4 up to 2133 MHz ECC SODIMM slots, default 16 GB x1
- M12 I/O: SR-IOV for 4x LAN, 2x PoE+ (by SKU), 1x USB, 1x console
- Wide operating temperature: -40~70ºC or -40~60ºC (by SKU)
- 1x M.2 socket for 5G, 1x M.2 socket for Wi-Fi 6, 1x Mini-SIM
- Intel QuickAssist Technology
- On-board eMMC 128 GB, 1x M.2 2242 B Key, TPM 2.0
Description
Product Details
The ISD-O370, an all-weather, fanless edge network appliance, featuring Intel Atom C3000 processor with crypto acceleration, supporting 5G and Wi-Fi 6 connectivity, and IP67 & MIL-STD-810G environmental compliance. Designed as an outdoor, waterproof uCPE device deployed at the rugged edge, ISD-O370 enables routing, security, industrial IoT and SD-WAN in the most demanding conditions.
The ISD-O370 can operate in -40ºC to 70ºC environment and is protected from dust and water; also compliant with MIL-STD-810G, a military standard that tests rugged network computers through a wide range of environmental conditions.
Specifications
Platform
| Form Factor | Desktop |
| Processor Options | Intel Atom C3000 (Denverton) |
| CPU Socket | Onboard |
| Chipset | SoC |
| Security Acceleration | Intel QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
System Memory
| Technology | DDR4 up to 2133 MT/s ECC SODIMM |
| Max. Capacity | 64 GB, default ECC RAM 16 GB x1 |
| Socket | 2x 260-pin SODIMM |
Networking
| Ethernet Ports | All Ethernet ports are supported with SR-IOV, 4x GbE LAN, 2x GbE POE+ (by SKU). M12 X-coded 8-pin Female connector with isolation 1.5 KVDC |
I/O Interface
| Console | 1x RS232/422/485 by M12 X-coded 8-pin female connector with isolation 1.5 KVDC |
| USB | 1x USB 2.0 by M12 A-coded 8-pin male connector |
Storage
| HDD/SSD Support | 1x M.2 2242 B key |
| eMMC | On-board eMMC 128 GB TLC |
Expansion
| M.2 for 5G | 1x M.2 304(5)2 B Key socket for 5G |
| M.2 for Wi-Fi 6 | 1x M.2 2230 E Key socket for WiFi 6 |
| SIM Card Slot | Mini-SIM & 1x eSIM (reserved) |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li battery | Yes |
| TPM | Onboard TPM 2.0 |
Cooling
| Processor | Passive CPU Heatsink |
| System | Fanless |
Environmental Parameters
| Temperature | -40 ~ 70ºC operating (SKU D/F/H/J/K/L) -40 ~ 60ºC operating (SKU C/E/G/I) -40 ~ 85ºC ambient storage |
| Humidity (RH) | 5 ~ 90% operating 5 ~ 95% non-operating |
System Dimensions
| Dimensions (W x D x H) | 370 mm x 210 mm x 83 mm |
| Weight | 4.6 kg |
Package Dimensions
| Dimensions (W x D x H) | 450 x 324 x 195 mm |
| Weight | 5.2 kg |
Power
| Type / Watts | DC-IN, up to 130 W |
| Input | Rated 24-36 VDC (range 9-50 VDC), supports with reverse protection by M12 K-coded 5pin Male connector with isolation 1.5 KVDC |
Certification
| Approvals and Compliance | CE/FCC class A, UL 62368-1, CB, IP67, MIL-STD-810G |
OS
| OS | Linux Kernel |
